Fully automated operation for maximum output
Multi-specification compatibility for versatile production lines
Controllable torque ensuring consistent fastening quality
Stable and durable construction for continuous industrial use

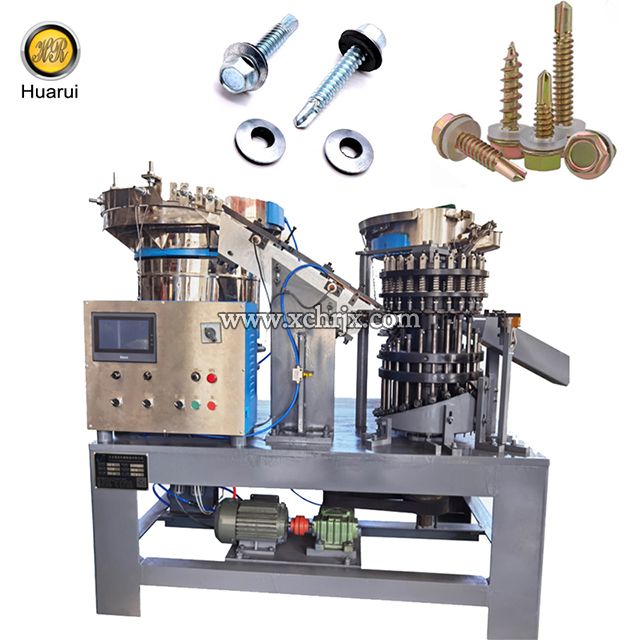

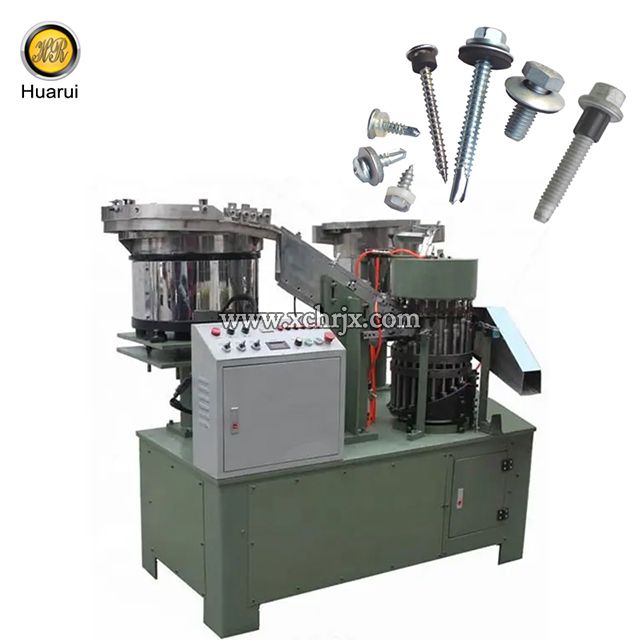

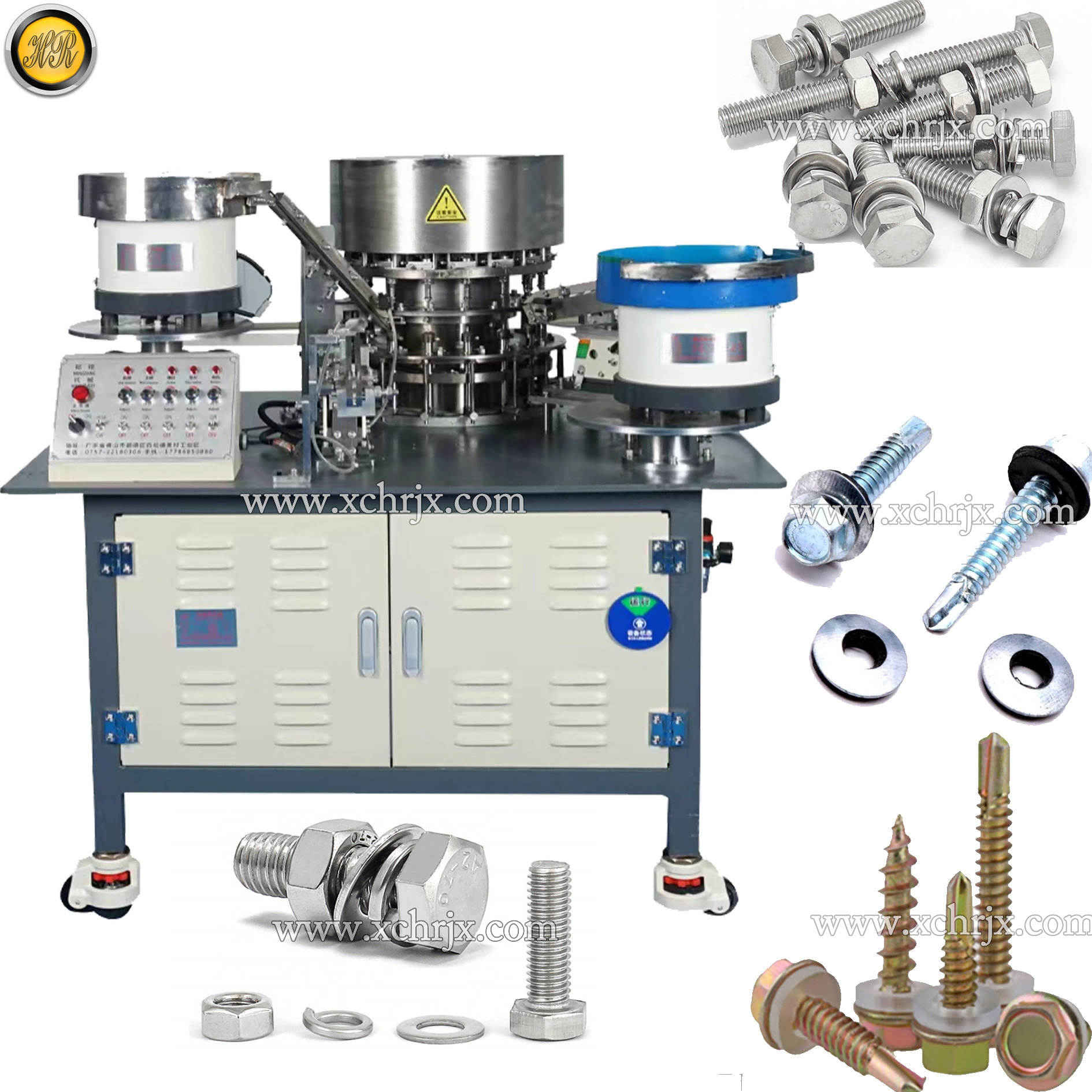

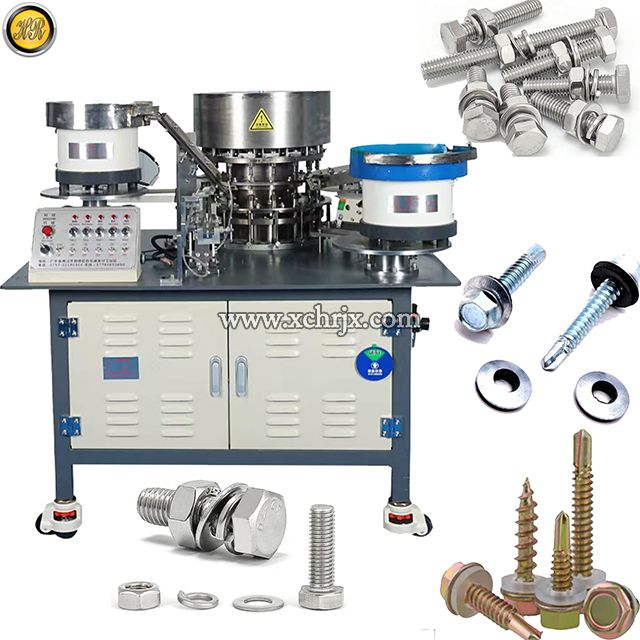

Step onto the factory floor, and the rhythmic, precise hum of the Fully Automatic Self Drilling Screw Washer Assembling Machine instantly communicates a standard of industrial excellence. Crafted with a robust, heavy-duty metallic frame, the machine feels solid to the touch, absorbing microscopic vibrations to maintain absolute stability during high-speed operations. The sleek, industrial-grade exterior not only provides a professional aesthetic but also resists the harsh, oily environments typical of heavy manufacturing facilities. As the vibratory bowls feed components with a satisfying, consistent metallic clink, operators can witness the seamless synchronization of mechanical engineering and intelligent software working in perfect unison.
This equipment transforms the traditionally tedious and error-prone process of manual fastener assembly into a streamlined, high-yield operation. By automating the alignment and threading of bolts, nuts, and washers, facilities can eradicate bottlenecks that slow down assembly lines. The smooth glide of the linear guideways and the quiet whir of the servo motors reflect a level of craftsmanship designed to elevate your production capabilities. Every fastened unit emerges with identical tension and perfect alignment, solving the persistent industry challenge of inconsistent torque application. Ultimately, integrating this system means investing in peace of mind, knowing that your production floor will operate with relentless efficiency, reduced material waste, and a superior end product that meets the strictest quality control standards.
Understanding the technical capabilities of your machinery is crucial for optimizing production workflows. The table below outlines the precise engineering parameters and operational capacities of our assembly system. These specifications highlight the machine's ability to handle rigorous, continuous operation while maintaining microscopic accuracy. From the adaptable voltage requirements to the highly sensitive torque control, every metric is designed to integrate smoothly into modern, high-demand manufacturing environments. Please review the detailed technical data to see how this equipment aligns with your specific operational requirements.
| Product Name | Fully Automatic Self Drilling Screw Washer Assembling Machine For Bolts And Nuts |
| Automation Level | Fully Automatic |
| Applicable Fasteners | Bolts, Nuts, Screws and Washers (M1-M8 range typically) |
| Work Efficiency | 1.2~1.5s/pcs (Reference) |
| Position Accuracy | +/-0.02mm (Reference) |
| Voltage | 110/220V 50/60Hz (Reference) |
| Air Supply | 0.5-0.7MPa (Reference) |
| Control System | PLC + Touch Screen (Reference) |
| Motor System | Micro Precision Stepping Motor / Servo Motor (Reference) |
| Torque Control | Controllable Torque (0.015~2.5N.m Reference) |
| Customization | Support for non-standard customization |
Modern production demands equipment that goes beyond basic functionality. This assembly system is engineered with advanced features that directly address the pain points of high-volume manufacturing, ensuring that every cycle contributes to a more profitable and reliable operation.
Intelligent Fault Recognition: The system actively monitors the assembly process, instantly identifying issues like cross-threading or missing components, preventing defective batches from moving down the line.
Rapid Changeover Tooling: Designed for dynamic factory floors, the quick-release fixtures allow operators to transition between different fastener sizes with minimal downtime.
Vibration-Dampening Architecture: The heavy-duty chassis minimizes resonance, which not only extends the lifespan of the moving parts but also dramatically reduces ambient noise on the factory floor.
Intuitive Visual Interface: The high-resolution touch screen provides real-time analytics, cycle times, and maintenance alerts in a clear, easy-to-read format.
Energy-Efficient Pneumatics: Optimized air consumption pathways reduce the overall load on your facility's compressors, lowering daily operational energy costs.
In a competitive manufacturing landscape, output speed is directly tied to profitability. This machine redefines factory throughput by achieving an exceptional assembly rate, allowing your facility to meet tight deadlines effortlessly.
Achieves lightning-fast assembly speeds of approximately 1.2 to 1.5 seconds per piece, drastically accelerating project completion times.
Supports dual-station alternating operations, facilitating uninterrupted, continuous workflow without manual pauses.
Effectively replaces the workload of two to three manual operators, significantly reducing labor costs and human fatigue.
Multiplies the overall production capacity of your facility, allowing you to take on larger volume orders with confidence.
Flexibility is the cornerstone of modern manufacturing. This equipment is built to adapt to your ever-changing project requirements without requiring entirely new machinery for every unique product run.
Boasts powerful multi-specification compatibility, seamlessly handling a wide range of fasteners from M1 to M8 sizes.
Easily accommodates various combinations of bolts, nuts, and washers, making it a versatile asset for diverse product lines.
Offers comprehensive support for non-standard customization, perfectly aligning with unique or proprietary fastener designs.
Enables rapid production line switching simply by swapping out customized fixtures or feeding systems, perfectly supporting agile manufacturing strategies.
Quality control begins at the assembly stage. By integrating smart technology, this machine acts as its own quality inspector, safeguarding your reputation and eliminating the need for extensive manual post-assembly checks.
Powered by an advanced PLC programmable control system paired with a highly responsive visual touch screen for effortless operation.
Features massive onboard memory to store numerous assembly programs, allowing instant recall for repeat production runs.
Equipped with intelligent detection modules that automatically identify anomalies such as slipping threads, missing locks, or floating screws.
Triggers immediate visual and auditory alarms upon detecting material shortages or errors, ensuring near-perfect yield rates.
When assembling critical components, precision is non-negotiable. This system guarantees that every single fastener is driven with exact, repeatable force, ensuring the structural integrity of your final products.
Driven by micro-precision stepping motors or high-end servo motors, delivering exceptionally smooth and controlled mechanical movements.
Utilizes premium linear guideways to achieve a staggering positioning accuracy of +/-0.02mm, eliminating misalignment issues.
Features highly controllable torque settings ranging from 0.015 to 2.5N.m, preventing both under-tightening and material-damaging over-tightening.
Guarantees uniform fastening force across thousands of cycles, drastically elevating the structural integrity and quality of the final assembled product.
Industrial equipment must withstand punishing environments. We engineered this machine to be a relentless workhorse that requires minimal intervention, ensuring your capital investment yields returns for years to come.
Constructed with a highly rigid, reinforced machine body that withstands the constant vibrations of high-speed assembly.
Core transmission components and sliding blocks are forged from high-wear-resistant alloy materials for exceptional longevity.
Integrates internationally recognized, premium-brand bearings to ensure frictionless movement and reduce mechanical wear over time.
Maintains peak stability and an incredibly low failure rate even under the stress of 24/7 continuous, high-intensity operation.
Procuring heavy machinery is a long-term commitment, and our support infrastructure is designed to protect your investment from day one, ensuring seamless integration into your existing workflows.
Backed by a comprehensive 1 to 2-year warranty, providing immediate peace of mind for your procurement and engineering teams.
Delivers lifetime technical support, ensuring your operations never experience prolonged downtime due to technical queries.
Includes complimentary, expert-led installation guidance and comprehensive programming training for your on-site engineers.
Features a rapid-response troubleshooting service designed to minimize operational risks and maximize your return on investment.
Selecting the right manufacturing partner is just as critical as choosing the right equipment. As a dedicated manufacturer and global supplier, we understand the complex demands of large-scale production facilities. Our approach goes beyond simply delivering machinery; we focus on engineering solutions that actively drive your operational success and market competitiveness.
Direct Manufacturer Advantage: By bypassing intermediaries, we offer highly competitive pricing structures without compromising on the premium grade of our components.
Stringent Quality Assurance: Every machine undergoes rigorous, multi-stage stress testing in our facility before it is ever crated for shipment, ensuring out-of-the-box readiness.
Deep Industry Expertise: With years of specialized experience in fastener automation, our engineering team can anticipate your production challenges and recommend optimal configurations.
Global Supply Chain Reliability: We have refined our logistics and packaging protocols to ensure safe, punctual delivery to industrial hubs worldwide, keeping your expansion timelines on track.
Commitment to Innovation: We continuously reinvest in research and development, meaning the technology you acquire from us represents the current pinnacle of automation efficiency.
To assist your procurement and engineering teams in making an informed decision, we have compiled detailed answers to the most common technical inquiries regarding our assembly systems.
What is the typical lead time for a customized assembly machine?
Standard configurations are typically ready for dispatch within a short timeframe. However, for non-standard customization requiring bespoke feeding bowls and specialized PLC programming, the engineering and testing phase generally extends the timeline by a few weeks to ensure absolute precision before deployment.
Can the machine handle fasteners made of different materials, such as stainless steel or nylon?
Yes. The vibratory feeding bowls and torque control systems can be precisely calibrated to handle various materials. For softer materials like nylon or brass, the servo motor's torque is dialed down to prevent thread stripping, while stainless steel components utilize optimized magnetic or mechanical sorting techniques.
How difficult is it to reprogram the PLC for a new product batch?
The intuitive touch-screen interface is designed for user-friendly operation. Operators with basic training can easily select pre-saved assembly recipes or input new parameters for torque, depth, and speed within minutes, completely eliminating the need for complex hard-coding on the factory floor.
What maintenance routines are required to keep the machine at peak efficiency?
Routine maintenance is straightforward. It primarily involves keeping the linear guideways lubricated, ensuring the pneumatic filters are clear of moisture, and periodically checking the wear on the driver bits. We provide a comprehensive, scheduled maintenance checklist with every unit to maximize its operational lifespan.
Does the equipment require a dedicated compressed air supply?
The machine operates optimally with a clean, dry air supply of 0.5-0.7MPa. While it can connect to your facility's central pneumatic system, we highly recommend installing a dedicated air dryer and filter at the machine's inlet to prevent microscopic moisture from affecting the precision pneumatic cylinders over time.
How does the intelligent detection system handle a jammed fastener?
If a fastener jams or fails to thread correctly, the torque sensor and position indicators instantly detect the anomaly. The machine will automatically halt the specific station, reject the faulty assembly into a designated bin, and trigger an alarm, allowing the operator to clear the issue without compromising the rest of the batch.
Customized services

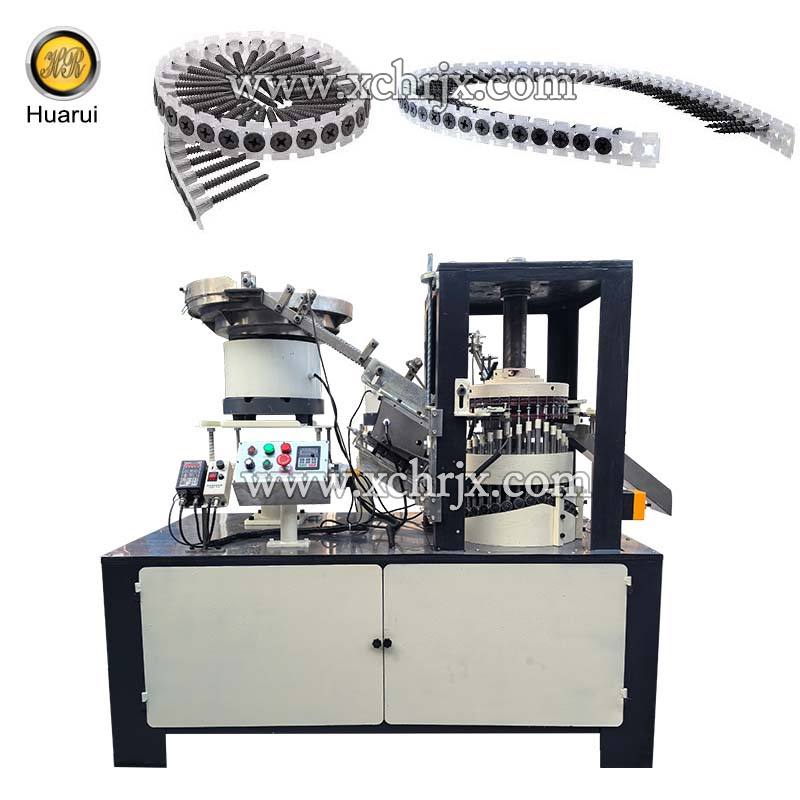

1：Collated Drywall Screws Assembly Machine

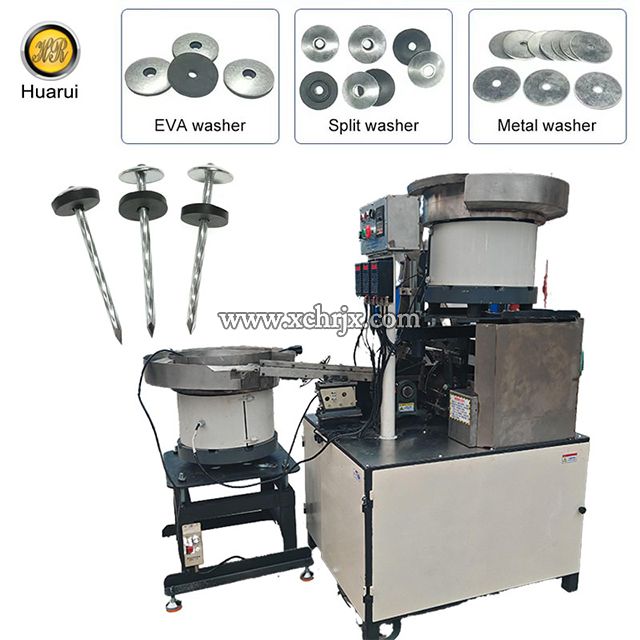

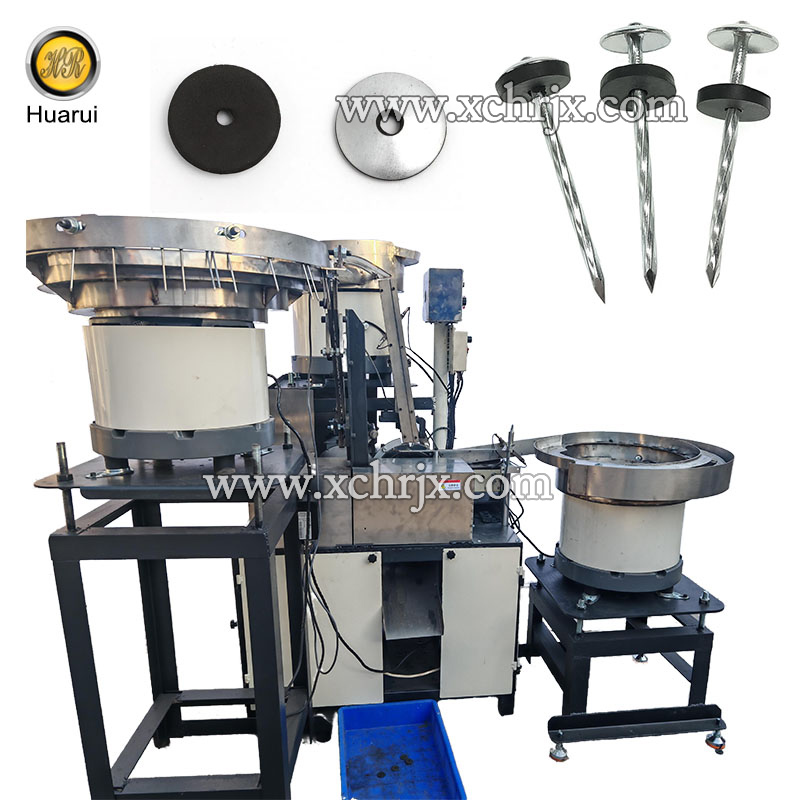

| 2.Roofing Nail With Rubber Washer Assembly Machine

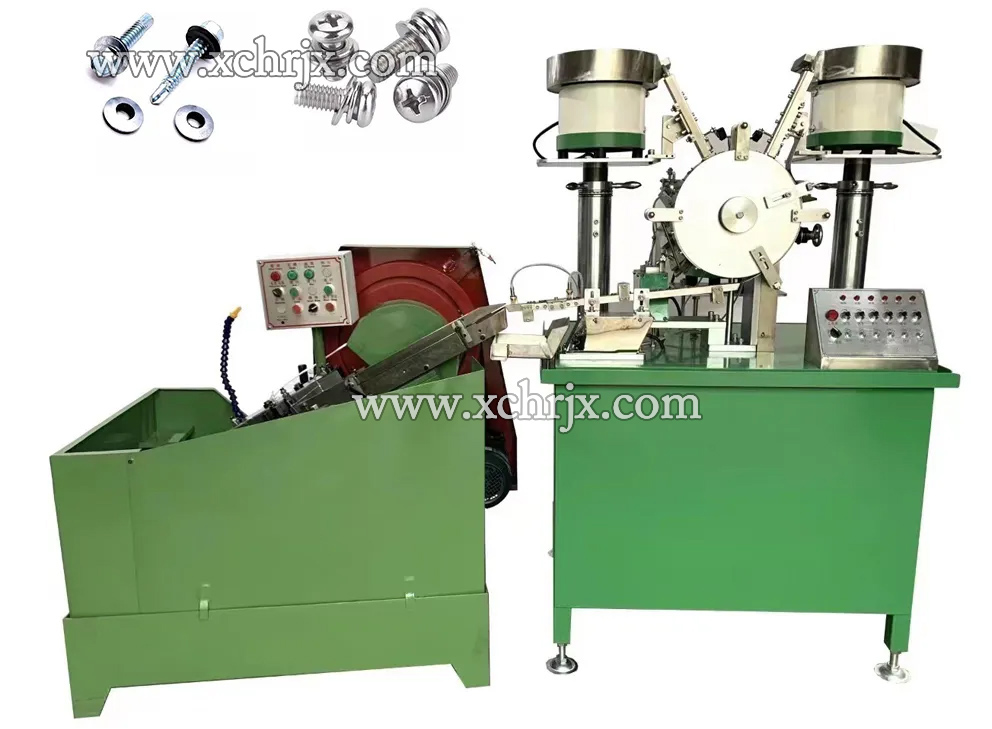

| 3.M.s / S.s Screw Washer Assembly Machine
|
