Engineered for direct factory integration and scalable manufacturing output.
Automated cold forging technology eliminates material waste and optimizes raw material utilization.
Designed to support industrial procurement demands with high-yield, continuous operation capabilities.

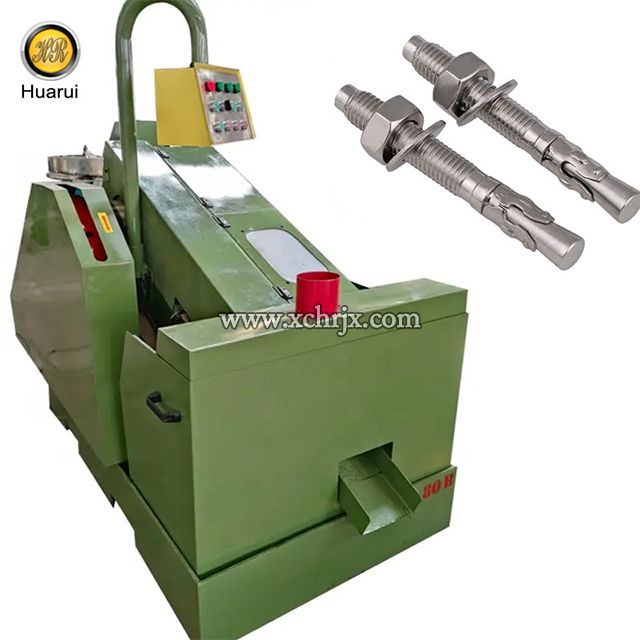

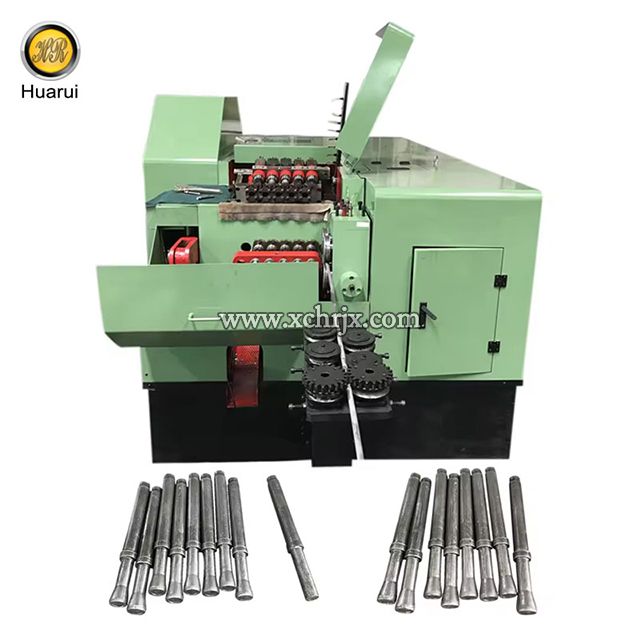

Step onto the factory floor, and the deep, rhythmic acoustic resonance of the Heavy Duty Automatic Wedge Anchor Bolt Forging Machine immediately signals relentless productivity. This formidable equipment breathes life into raw stainless steel coils, shaping them into impeccable concrete wedge anchors through a seamless, one-step cold forging process. The massive, high-strength ductile iron body absorbs intense mechanical vibrations, translating what would normally be a disruptive clatter into a grounded, powerful hum. This structural integrity not only ensures a quieter, more comfortable operating environment but also prevents micro-shifts during the forging cycle.
As the machine operates, the faint, industrial scent of heated lubrication oil mingles with the air, a testament to the heavy-duty forced lubrication system protecting the core components. When you run your hand along the freshly forged expansion bolts ejecting from the chute, the cool, smooth, unblemished surface and the perfectly contoured tapers reflect an unparalleled level of craftsmanship. By completely eliminating material waste and maximizing output speed, this machine directly elevates your operational margins. It is not merely a piece of machinery; it is the beating heart of a highly profitable production line, designed to meet the rigorous demands of global infrastructure projects with absolute, unwavering consistency.
Understanding the technical parameters of your production equipment is crucial for calculating output capacity, facility integration, and long-term return on investment. The following specifications detail the exact capabilities, material composition, and operational limits of our automatic cold forging machine. Every metric has been rigorously tested to ensure it meets the highest industrial standards for continuous, heavy-duty manufacturing. From the robust motor power required to shape dense stainless steel to the precise dimensions of the finished shanks, these parameters define a machine built for uncompromising performance.
| Parameter Name | Value / Specification |
|---|---|
| Machine Type | Heavy Duty Automatic Cold Forging Machine |
| Application | Stainless Steel Concrete Wedge Anchors / Expansion Bolts |
| Suitable Sizes | M4 - M30 (Customizable based on specific models) |
| Max. Shank Length | 60mm - 300mm |
| Max. Production Speed | 25 - 60 PPM (Pieces Per Minute) |
| Main Motor Power | 4KW - 55KW |
| Machine Body Material | High-strength Ductile Iron (e.g., QT500~QT550) |
| Core Components Material | 38COMOAT with nitriding treatment (Crankshaft, etc.) |
| Forming Process | One-step cold forging (No material waste) |
| Related Production Line Machines | Bolt thread rolling machine, Wedge Anchor Clips Punch Machine |
Achieving dominance in the fastening sector requires equipment that outpaces standard machinery in both durability and precision. This forging machine is engineered with specific highlights that directly address common manufacturing bottlenecks, ensuring your production lines remain active, safe, and highly profitable.
Zero-Waste Cold Forging: The one-step forming process manipulates the metallic structure without cutting, preserving 100% of the raw material and drastically reducing input costs.
Vibration-Dampening Architecture: The sheer mass and material science behind the QT500~QT550 ductile iron frame absorb kinetic shock, protecting delicate tooling and extending the lifespan of the dies.
Thermal & Friction Management: High-frequency quenched core components coupled with a forced oil lubrication system keep the machine running cool, preventing thermal expansion that could alter product dimensions.
Rapid Tooling Changeover: Designed with operator accessibility in mind, the die compartments allow for swift adjustments, minimizing facility downtime when switching between M4 and M30 batches.
Speed and autonomy are the cornerstones of modern manufacturing profitability. This equipment is designed to operate with minimal human intervention while maximizing output.
The machine utilizes a fully automatic feeding and one-step cold heading forming process, requiring only basic oversight once the coil is loaded.
Achieves a maximum production speed of up to 60 pieces per minute (PPM), ensuring rapid order fulfillment for large-scale infrastructure demands.
By achieving zero material waste during the forging cycle, it significantly lowers the per-unit production cost while simultaneously boosting overall facility capacity.
Ideal for volume-driven operations looking to scale their output without proportionally increasing their labor force.
Flexibility on the factory floor allows you to capture a wider range of project contracts. This machine is built to handle an impressive spectrum of dimensions and materials.

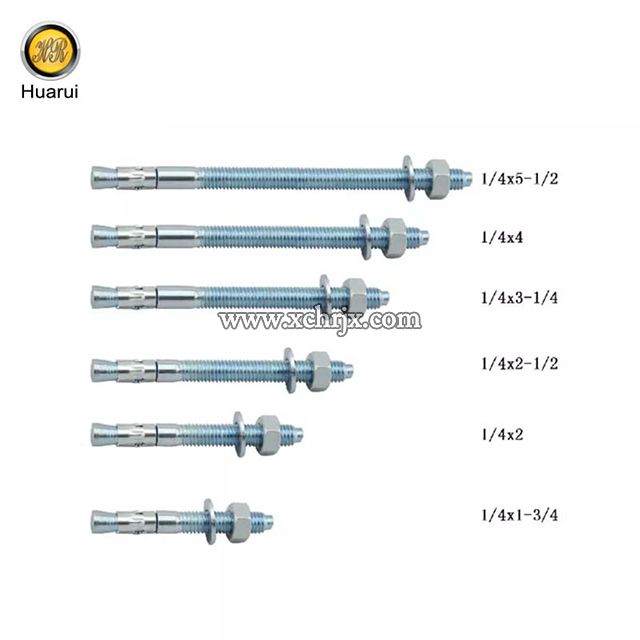

Broadly adaptable for producing multiple specifications of stainless steel and carbon steel wedge anchors, ranging from delicate M4 sizes up to robust M30 heavy-duty bolts.
Capable of forging maximum shank lengths up to 300mm, accommodating deep-embedment concrete fastening requirements.
Delivers a ""multi-purpose in one machine"" advantage, allowing facility managers to consolidate their equipment footprint.
Highly aligned with the custom fastener demands of diverse engineering and construction projects worldwide.
Industrial equipment must withstand the brutal, continuous forces of metal deformation. We have selected the absolute highest grade materials for the construction of this unit.
The main machine body is cast from high-strength ductile iron, providing an unyielding foundation that resists micro-cracking under continuous stress.
The crankshaft and core transmission components undergo rigorous nitriding and high-frequency quenching treatments to achieve exceptional surface hardness and wear resistance.
Equipped with a mandatory forced oil lubrication system that continuously bathes moving parts, drastically reducing friction and heat buildup.
Ensures extreme shock resistance, operational stability, and an ultra-long service life even under heavy-load, high-frequency running conditions.
The ultimate test of any forging machine is the tactile and visual perfection of the items it produces. This machine guarantees a finish that meets the strictest engineering tolerances.
Utilizes precision-engineered molds and an advanced transmission design to ensure every cold-headed anchor blank is dimensionally flawless.
Produces blanks with zero deformation, featuring perfectly concentric tapers and smooth, visually appealing surfaces.
The structural integrity of the cold-forged grain flow ensures the final anchors possess superior tensile and shear strength.
Finished product quality directly benchmarks against the stringent standards set by top-tier international fastener brands.
Protecting your workforce and preventing catastrophic machine failure are paramount. This system integrates intelligent safeguards to ensure smooth, secure daily operations.
Features a micro-adjustment jogging system that allows technicians to safely and precisely calibrate the machine without engaging full-speed operation.
Integrated temperature monitoring and alarm devices on core components immediately halt operations if thermal limits are breached, preventing severe mechanical damage.
Utilizes high-quality pneumatic components for reliable, responsive control during the feeding and ejection cycles.
Effectively prevents mold damage during setup and lowers the barrier to daily maintenance, comprehensively safeguarding both operators and the equipment.
We understand that a forging machine is just one part of the equation. We provide the complete ecosystem required to take raw wire and turn it into a finished, ready-to-ship expansion anchor.
Beyond offering the high-performance cold heading main unit, we provide seamless integration with downstream processing equipment.
Delivers a comprehensive, one-stop turnkey solution for procurement teams looking to establish a complete anchor bolt manufacturing facility from the ground up.

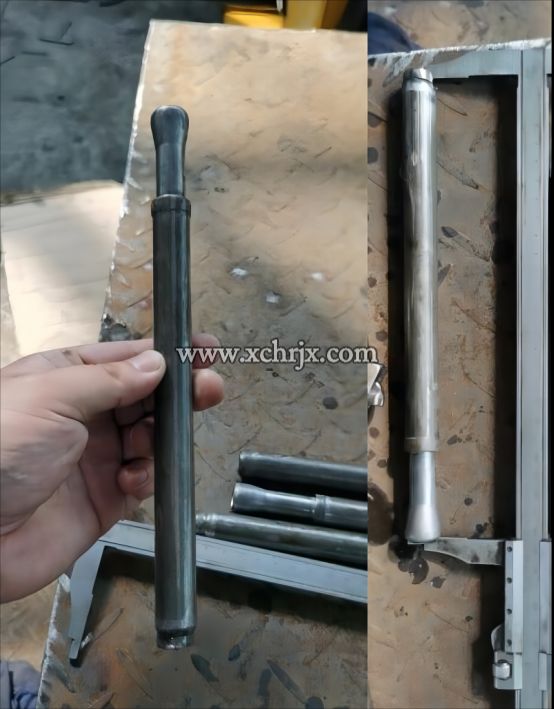

Expansion concrete wedge anchors automatic cold forging machine blanks forging shapes show below
<img src=""https://iprnrwxhlpil5q.leadongcdn.com/cloud/ljBqiKirSRolpijroolo/anchor-bolt-making-machine.png"" alt=""A person's hand holding a forged metal rod with a bulbous end, demonstrating the exact blank shape produced by the machine"" />

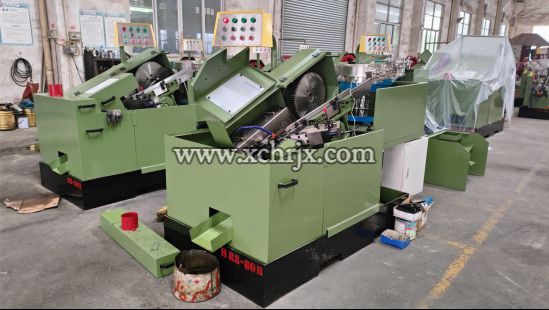

1:Bolt thread rolling machine

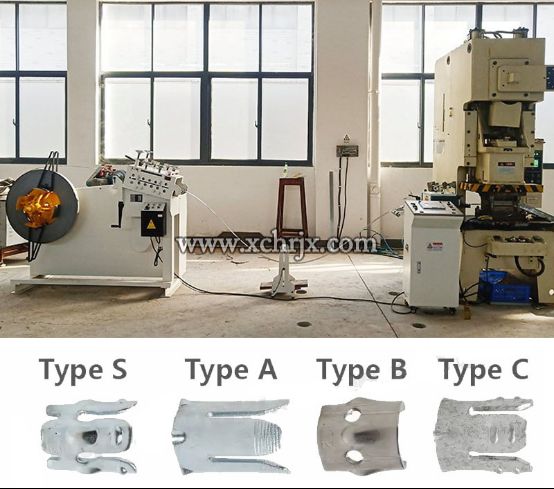

2:Wedge Anchor Clips Punch Machine

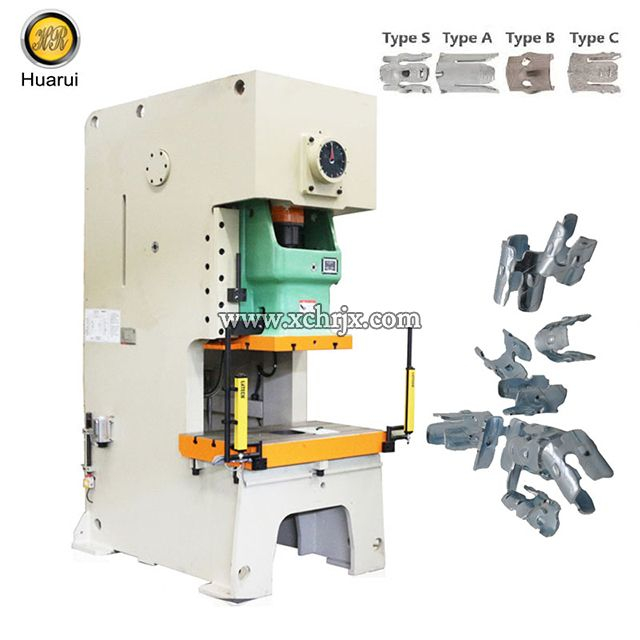

3:Wedge Anchor Clips Punch Machine
Selecting the right equipment manufacturer is a critical decision that impacts your facility's output for decades. We do not just sell machinery; we engineer long-term operational reliability.
Uncompromising Engineering Standards: Every machine that leaves our facility is subjected to rigorous stress testing, ensuring it performs flawlessly upon installation.
Deep Industry Expertise: With years of dedicated focus on fastener production technology, our engineering team understands the exact metallurgical behaviors of stainless steel during cold forging.
Global Support Infrastructure: We provide comprehensive technical documentation, rapid spare parts availability, and expert guidance to ensure your production line never experiences prolonged downtime.
Scalable Solutions: As your production demands grow, our modular equipment designs and turnkey line additions allow you to seamlessly expand your manufacturing footprint.
To assist your engineering and procurement teams in their evaluation process, we have compiled detailed answers to the most critical technical inquiries regarding our forging equipment.
How does the one-step cold forging process handle the work-hardening characteristics of stainless steel?
The machine is engineered with immense pressing force (supported by the 4KW-55KW motor range) and highly rigid 38COMOAT nitrided core components. This allows it to overcome the rapid work-hardening of stainless steel in a single, fluid stroke, forming the anchor blank before the material becomes too brittle, thus preventing micro-fractures.
Can the machine be quickly retooled for different anchor sizes, such as switching from M10 to M20?
Yes. The tooling compartment is designed for accessible, streamlined changeovers. Utilizing the micro-adjustment jogging system, technicians can safely swap the precision dies and recalibrate the feeding mechanism, minimizing facility downtime between different production batches.
What preventative maintenance is required for the high-strength ductile iron body and core components?
The primary maintenance revolves around monitoring the forced oil lubrication system. Ensuring the oil remains clean and at the proper viscosity will protect the high-frequency quenched crankshaft. The built-in temperature monitoring system will alert operators to any abnormal friction, allowing for proactive maintenance before wear occurs.
Does the stated 25-60 PPM production speed apply to all sizes, including the maximum 300mm shank length?
The production speed is inversely proportional to the size and length of the bolt being forged. Smaller dimensions (e.g., M6 x 60mm) can easily achieve the upper limit of 60 PPM. Larger, heavier bolts (e.g., M24 x 300mm) will operate closer to the 25 PPM range to ensure perfect material flow and maintain the integrity of the tooling.
How does the integration with the Bolt Thread Rolling Machine and Clips Punch Machine work in a continuous line?
Our equipment is designed with standardized ejection heights and synchronized output pacing. Blanks ejected from the cold forging machine can be automatically conveyed into the hopper of the thread rolling machine. Simultaneously, the Clips Punch Machine produces the expansion sleeves, allowing for a streamlined, synchronous final assembly process within the same facility.

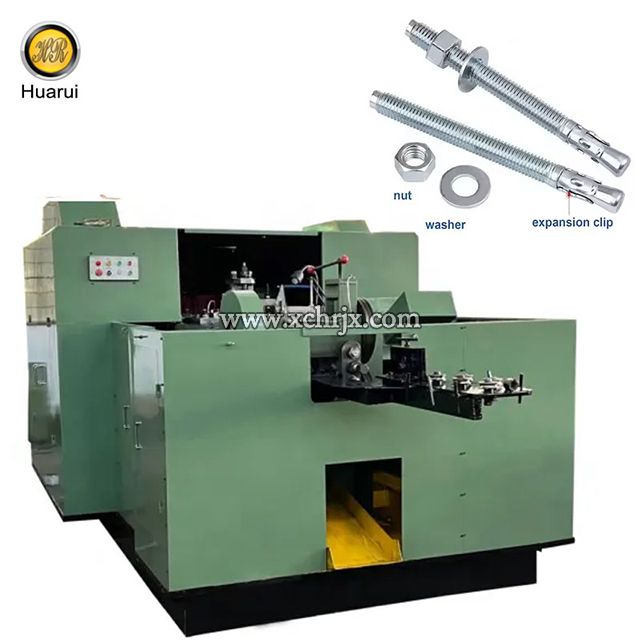

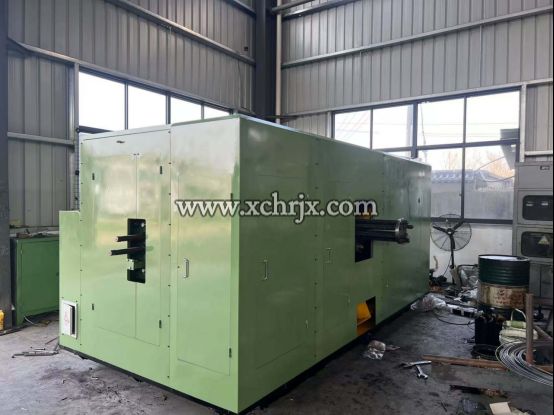

Concrete Wedge Anchors Automatic Cold Forging Machine
 |  |
Expansion concrete wedge anchors automatic cold forging machine blanks forging shapes show below
Related machines for wedge Anchor Bolts Production Line
1:Bolt thread rolling machine
 |  |
2:Wedge Anchor Clips Punch Machine
3:Wedge Anchor Clips Punch Machine
 |  |
