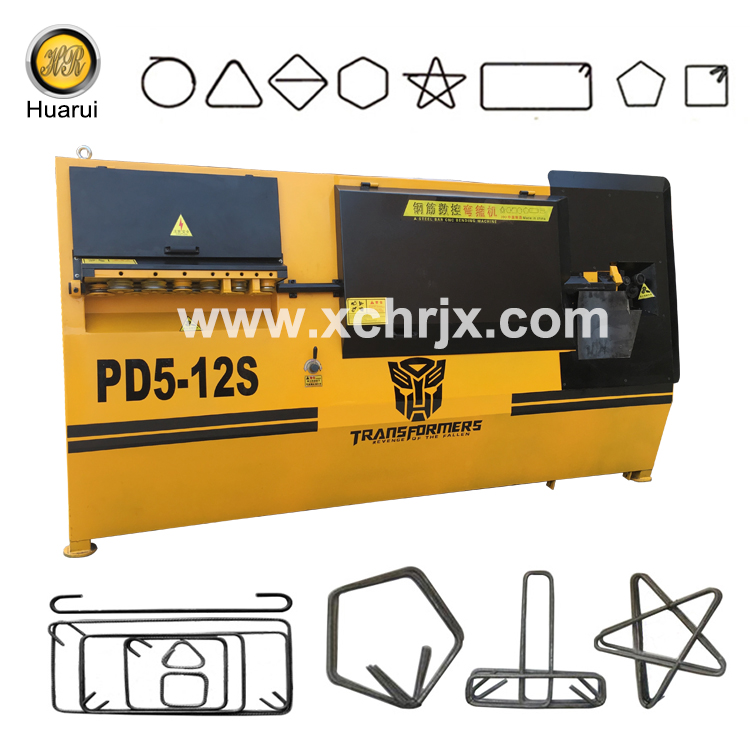

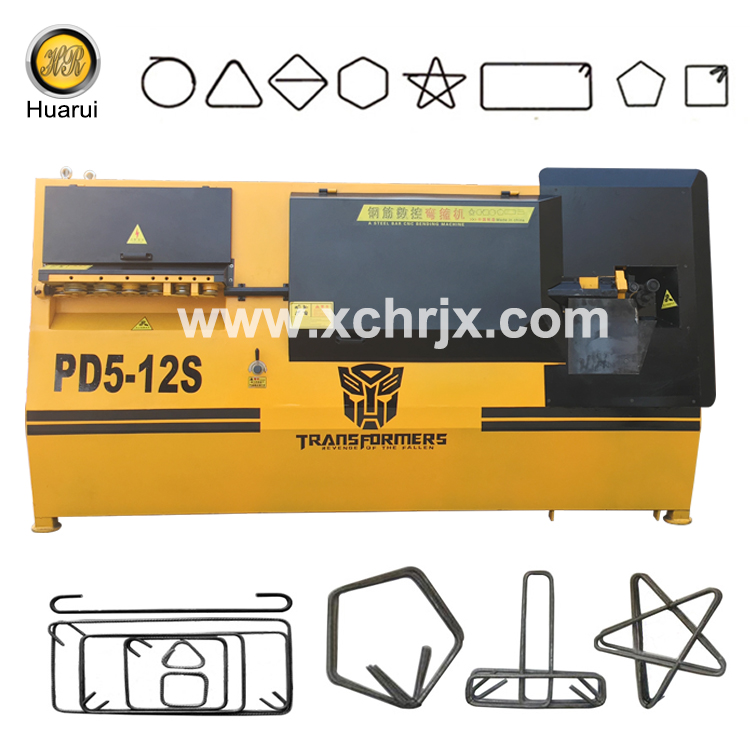

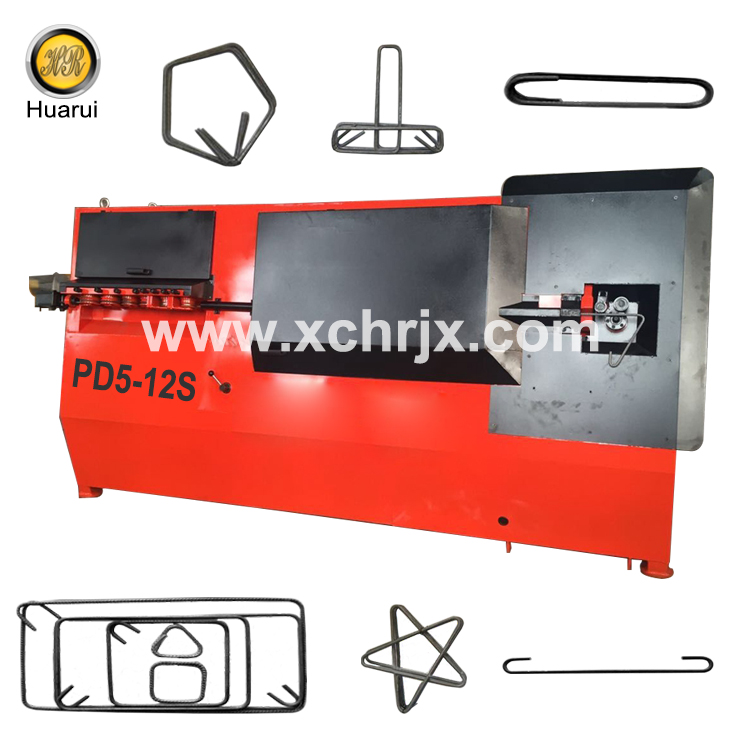

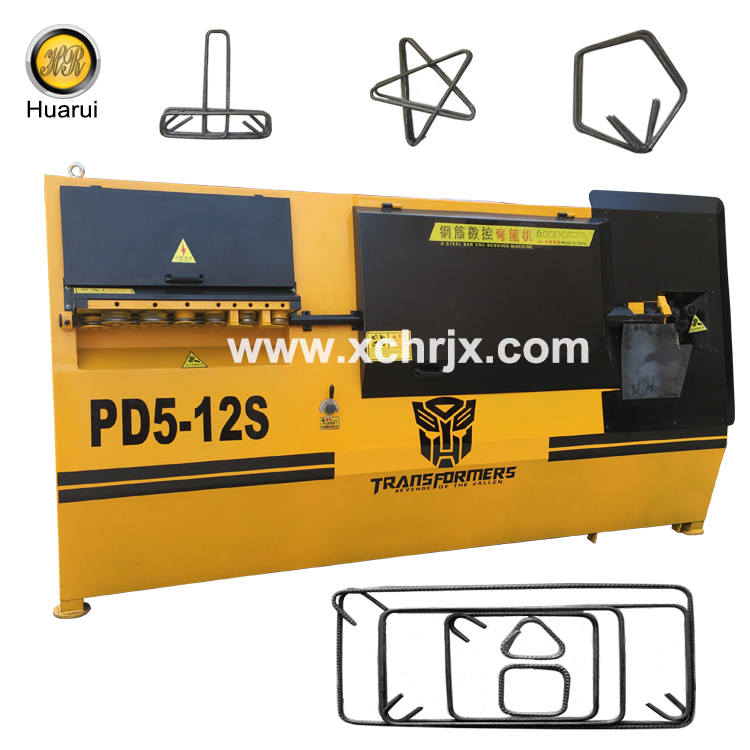

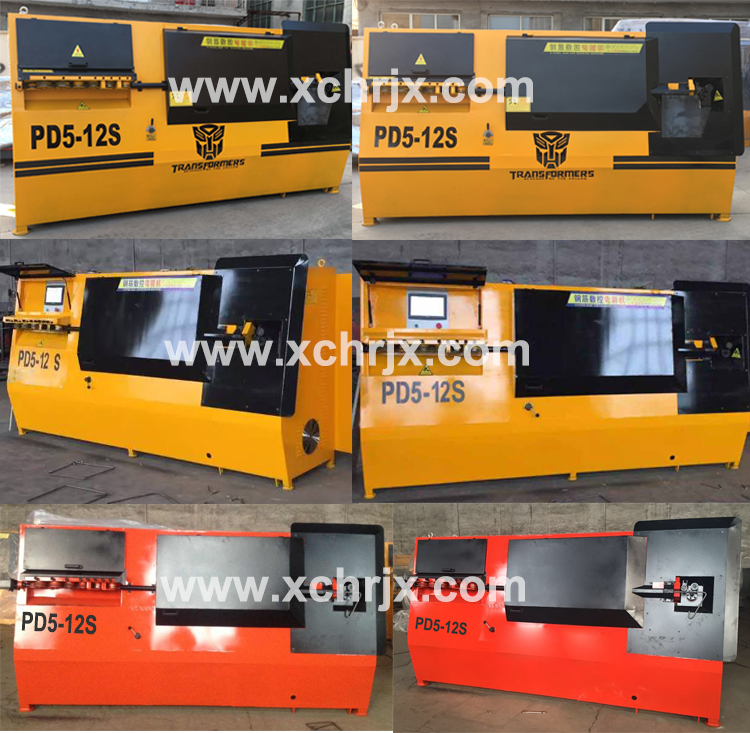

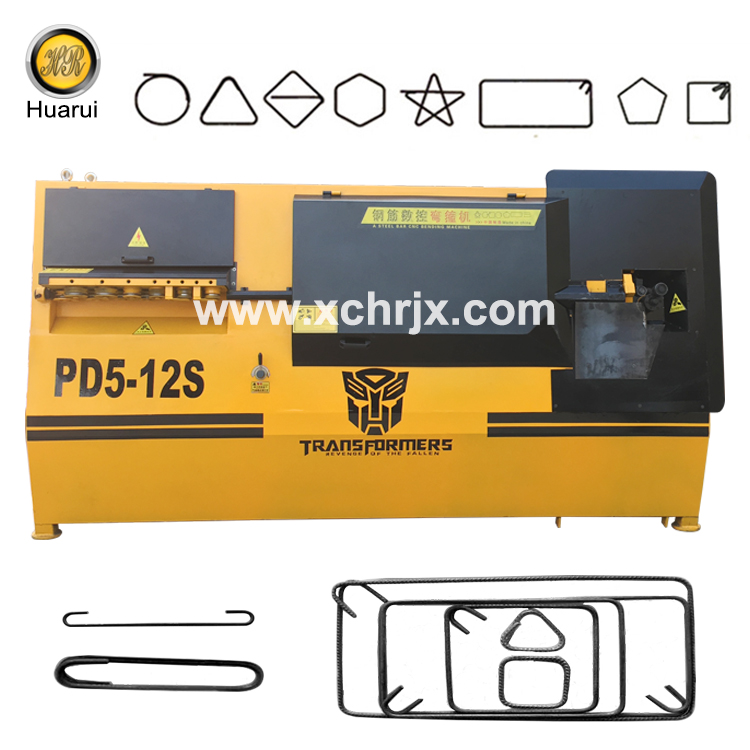

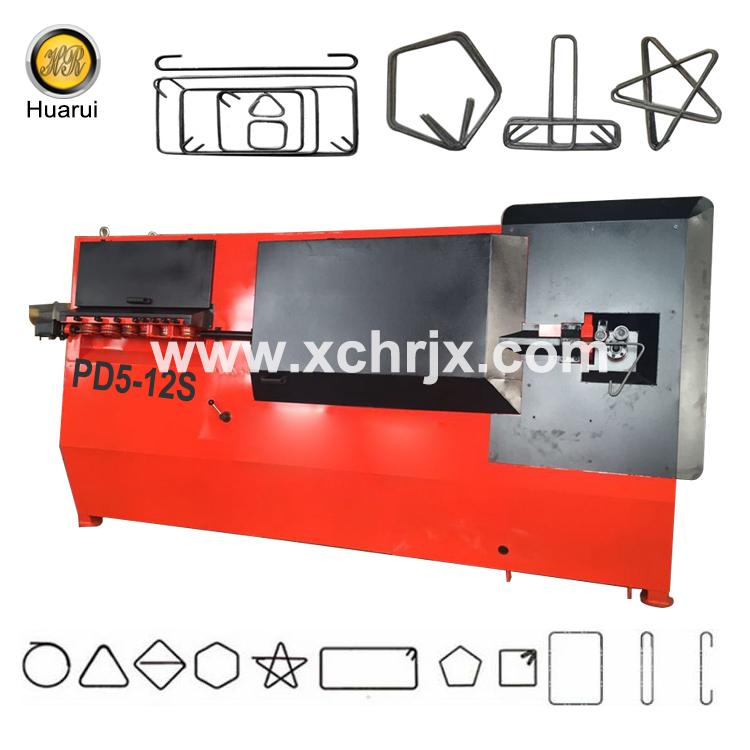

PD5-12S
Huarui
| Quantity: | |
|---|---|
Seamlessly integrates straightening, bending, and cutting mechanisms
Processes single wires (Φ5-12mm) and double wires (Φ5-10mm)
Driven by an advanced PLC control system for flawless execution
Step onto any bustling construction site or modern prefabrication plant, and the rhythmic, precise hum of the PD5-12S steel bending machine instantly signifies operational excellence. This automated rebar processor is meticulously engineered to take the heavy lifting out of structural steel preparation. When you touch the robust, powder-coated exterior of the heavy-duty chassis, you immediately feel the industrial-grade craftsmanship designed to withstand the harshest, most abrasive working environments. The machine seamlessly draws in coiled carbon steel, its hardened alloy straightening rollers gripping the raw metal with relentless force, smoothing out structural imperfections before feeding it into the core bending mechanism.
Instead of the chaotic clanking and physical strain associated with manual tools, you hear the smooth, synchronized whir of high-torque servo motors executing flawless, rapid-fire bends. By consolidating straightening, bending, and cutting into one continuous, fluid motion, this equipment entirely eliminates traditional bottlenecks in your production line. It empowers your workforce to focus on complex assembly rather than labor-intensive material preparation, drastically reducing physical fatigue and minimizing costly material waste. The result is a streamlined, highly predictable workflow where crisp, perfectly angled stirrups are produced with clockwork reliability, ensuring your structural foundations are built on absolute precision and consistency.
Understanding the exact technical capabilities of your processing equipment is crucial for optimizing daily production schedules and ensuring strict compatibility with your raw material requirements. The following table outlines the precise specifications of the PD5-12S model, detailing its processing capacities, operational speeds, and advanced control infrastructure. These parameters reflect the machine's inherent capability to handle rigorous, continuous steel processing demands across various heavy-duty industrial applications, providing your procurement team with the exact data needed for a thorough technical evaluation.
| Specification Category | Technical Parameter |
|---|---|
| Model | PD5-12S |
| Machine Type | Automatic Rebar Stirrup Bending Machine / Steel Bending Machine |
| Control System | PLC (Programmable Logic Controller) |
| Automation Grade | Fully Automatic / CNC |
| Core Functions | Straightening, Bending, and Cutting |
| Raw Material Processed | Steel Bar / Rebar / Carbon Steel |
| Single Wire Processing Diameter | Φ5-12mm |
| Double Wire Processing Diameter | Φ5-10mm |
| Max. Towing Speed | 75m/min |
| Max. Bending Speed | 1000°/sec |
| Max. Bending Angle | ±180° |
| Length Accuracy | ±1mm |
| Processing Shapes Capacity | Up to 500 geometric designs |
| Certification | CE |
The PD5-12S is engineered to be the beating heart of your steel preparation workflow. By focusing on intelligent design and robust mechanical execution, this equipment directly addresses the most common pain points found in high-volume material processing facilities.
All-in-One Processing Architecture: Seamlessly combines straightening, bending, and cutting into a single automated footprint, eliminating the need for multiple single-purpose machines and freeing up valuable factory floor space.
Intelligent PLC Interface: The intuitive touch-screen panel allows operators to input and execute complex bending sequences with a few simple taps, drastically reducing the learning curve and preventing costly manual input errors.
Blistering Execution Speed: Capable of bending at speeds up to 1000°/sec, ensuring that your downstream production line never starves for ready-to-use stirrups, even during peak operational hours.
Exceptional Dimensional Precision: Maintains a strict length accuracy of ±1mm, guaranteeing that every single piece fits perfectly into your structural frameworks without requiring any secondary manual rework.
Heavy-Duty Stability: Built with premium-grade steel and reinforced stress points, ensuring the machine remains completely stable and vibration-free even during maximum-capacity, continuous processing.
Time is the most critical currency in large-scale construction and prefabrication projects. The PD5-12S is engineered to drastically accelerate your project timelines through sheer processing velocity and relentless, uninterrupted consistency.
Unmatched Processing Velocity: With a maximum towing speed of 75 meters per minute and a bending speed of 1000 degrees per second, the machine effortlessly produces between 1,900 and 2,500 highly accurate stirrups every single hour.
Massive Labor Reduction: A single PD5-12S unit possesses the output capacity to replace 15 to 30 manual laborers, allowing you to reallocate your human resources to higher-value assembly tasks.
Continuous 24/7 Operation: Designed for round-the-clock endurance, this machine does not suffer from fatigue, ensuring your production targets are met regardless of demanding project deadlines.
Accelerated Project Delivery: By completely removing the bottleneck of manual steel preparation, your overall engineering and construction cycles are significantly shortened, leading to faster project handovers.
Modern industrial operations demand smart technology that simplifies complex, repetitive tasks. This machine is driven by a state-of-the-art programmable logic controller that acts as the highly efficient central brain of your entire steel processing operation.
Advanced PLC Integration: The fully automatic CNC system takes the guesswork out of steel bending, translating digital inputs into flawless mechanical movements with zero hesitation.
Massive Design Library: The system's high-capacity memory can store up to 500 distinct geometric designs, allowing your operators to recall complex shapes instantly without reprogramming.
Zero-Downtime Transitions: Switching between different stirrup shapes or dimensions requires no mechanical downtime or manual recalibration; a simple selection on the touch screen initiates the change immediately.
Low Operator Threshold: The highly visual, user-friendly human-machine interface ensures that even newly trained personnel can operate the equipment safely and efficiently, reducing your reliance on highly specialized labor.
Structural integrity relies entirely on the exactness of its foundational components. This equipment guarantees that every single stirrup meets the strictest engineering tolerances, eliminating the cascading structural errors caused by inconsistent manual bending.
Tri-Functional Mastery: By highly integrating straightening, bending, and cutting, the machine maintains absolute control over the steel bar from the moment it enters the feed until the final cut is made.
High-Power Servo Control: Driven by premium servo motors, the feeding and bending mechanisms operate with micro-millimeter precision, ensuring flawless execution of every angle up to ±180°.
Strict Tolerance Adherence: Achieving a length accuracy of ±1mm, the equipment meets and exceeds the rigorous regulatory standards required for commercial and industrial building foundations.

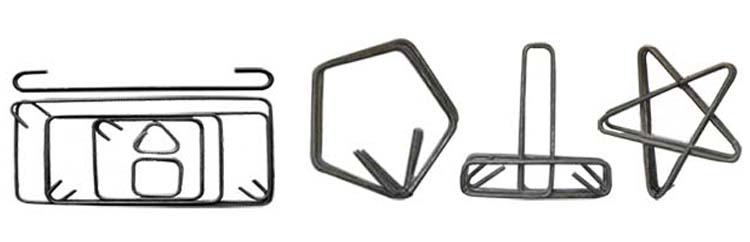

Complex Polygon Capability: Whether your project requires simple squares, intricate multi-angled polygons, or custom architectural shapes, the machine processes both single and double wires with equal finesse.
Industrial machinery must withstand punishing environments without faltering or breaking down. When you listen to the smooth operation of this bender, you are hearing the direct result of premium, globally sourced components working in perfect mechanical harmony.
Global Tier-1 Electronics: The core electrical and transmission systems utilize internationally renowned brands such as Siemens, Panasonic, and Schneider, guaranteeing exceptional operational stability and safety.
Forged Alloy Wear Parts: The critical touchpoints—including the straightening wheels, feeding rollers, and cutting blades—are forged from specialized, high-density alloys that resist extreme friction and wear.
Extended Operational Lifespan: Because the wear-and-tear components are engineered for maximum endurance, the overall lifespan of the machine is significantly extended compared to standard market alternatives.
Minimized Maintenance Burden: The high durability of the core components drastically reduces the frequency of consumable replacements, keeping your maintenance costs exceptionally low and your machine on the floor.
Capital equipment procurement must be justified by a rapid, tangible, and measurable return on investment. This machine is specifically designed to slash overhead costs and dramatically improve your operational bottom line from the very first day of deployment.
Immediate Labor Savings: By automating the workload of up to 30 manual workers, your operation instantly saves hundreds, if not thousands, of dollars in daily wage and insurance expenditures.
Rapid Payback Period: Due to its high cost-performance ratio and massive daily savings, purchasers typically recover their entire initial equipment investment within an astonishingly short 1 to 2 month period.
Waste Reduction Economics: The extreme ±1mm precision ensures that raw carbon steel is utilized to its maximum potential, virtually eliminating the financial drain of scrapped materials and off-cuts.
Maximized Profit Margins: By lowering your cost-per-stirrup to absolute minimums while simultaneously increasing your output volume, your overall project profitability is exponentially enhanced.
Procuring heavy machinery is not a one-time transaction; it is the beginning of a long-term operational partnership. As a dedicated direct supplier, we ensure that your operations never suffer from prolonged downtime, backing our equipment with comprehensive, global support.
Comprehensive 12-Month Warranty: Every machine comes with a full year of protective coverage, ensuring that your investment is safeguarded against any manufacturing defects.
Free Core Spare Parts: During the warranty period, we provide complimentary replacements for critical core components, ensuring your production line remains active without unexpected out-of-pocket costs.
Global Technical Dispatch: We offer borderless technical services, with the ability to dispatch our highly trained professional engineers directly to your facility, regardless of your country of operation.
On-Site Training & Commissioning: Our experts will personally handle the installation, fine-tuning, and comprehensive operational training for your staff, completely eliminating any post-procurement anxieties.
Selecting the right equipment provider is just as critical as selecting the machinery itself. We stand out in the global industrial market by prioritizing your operational success, delivering uncompromised value, and acting as a true extension of your production capabilities.
Factory-Direct Quality Control: By controlling the entire manufacturing process from raw chassis welding to final PLC programming, we guarantee that every unit leaving our floor meets strict CE certification standards.
Deep Industry Expertise: With years of dedicated experience in construction machinery, our engineering team understands the exact stresses and demands of high-volume steel processing environments.
Streamlined Global Logistics: We possess the infrastructure and expertise to securely package, ship, and deliver heavy machinery to your facility promptly, minimizing your waiting time and accelerating your deployment.
Continuous Innovation: We constantly refine our CNC algorithms and mechanical designs based on real-world feedback from our global partners, ensuring you always receive the most advanced technology available.
To assist your procurement team in making a highly informed and confident decision, we have compiled the most common technical and operational inquiries regarding this automated steel processing equipment.
The PD5-12S is highly versatile. When processing a single wire, it comfortably handles carbon steel and rebar diameters ranging from Φ5mm up to Φ12mm. For increased throughput, it can process double wires simultaneously with diameters ranging from Φ5mm to Φ10mm, maintaining perfect precision in both modes.
It is exceptionally straightforward. The machine features an intuitive, highly visual touch-screen interface. Your operators do not need advanced programming knowledge; they simply input the desired lengths and angles. Furthermore, the system can store up to 500 pre-configured geometric designs for instant recall.
The PD5-12S is engineered with high-efficiency servo motors and premium electrical components from brands like Siemens and Schneider, which naturally dissipate heat effectively. While it is built for continuous, heavy-duty operation, operating it in a standard ventilated industrial environment is sufficient to maintain optimal performance.
Because these core wear parts are forged from specialized, high-density alloys, they offer an extended operational lifespan. The exact replacement frequency depends on your daily production volume and the hardness of the steel being processed, but our clients consistently report significantly lower consumable turnover compared to standard market alternatives.
You are fully supported by our global technical service network. We provide comprehensive remote troubleshooting, and if necessary, we can dispatch our professional engineers to your specific location for hands-on maintenance, recalibration, or further operator training, ensuring your production experiences minimal interruption.
"
