Develop No.1
Huarui

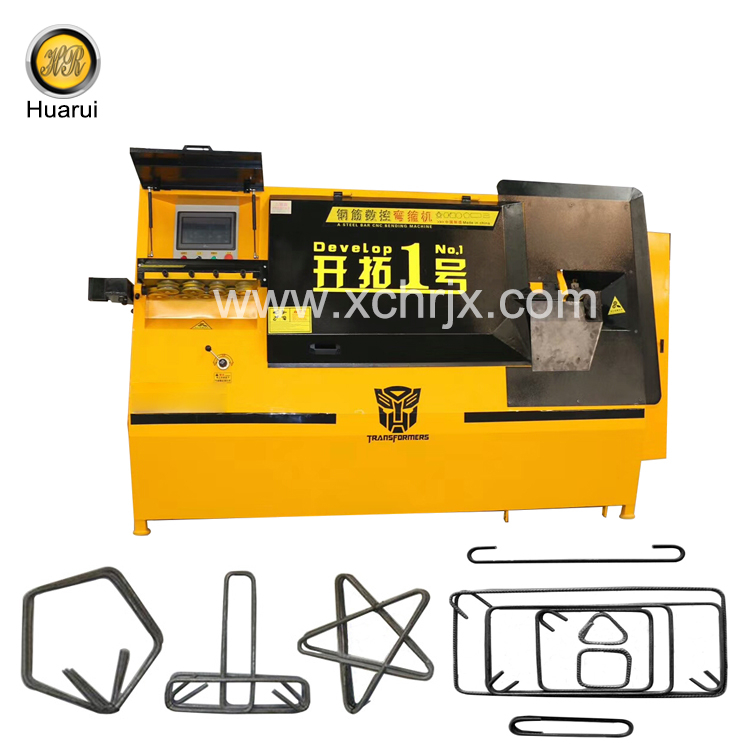

High Efficiency Develop No.1 3D CNC Wire Bending Machine
Product Features:
1. This equipment adopts servo controlling system;
2. Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc; can be processed in various sizes square, rectangle, triangle, polygon, etc.
3. Continuously bend various stirrup of plane figure;
4. Widely used in construction industry and rebar manufacturing enterprise;
5. High efficiency and accurate processing precision
Technical parameters:
Model No. | Develop NO. 1 |
Single wire Working Capacity (mm) | Round steel bar: 4-10 |
Ⅲ grade deformed steel bar: 4-8 | |
Double wire Working Capacity (mm) | Round steel Bar: 4-8 |
Ⅲ grade deformed steel bar: 4-6 | |
Production efficiency *(Pcs/hour） | 1600 |
Max. bending angle | 180° |
Max. feeding speed (m/h) | 3600 |
Max. bending speed (°／s) | 800 |
Length Error (mm) | ±1 |
Angle Error (°) | ±1 |
The height between axis of center of bending and ground (mm) | 1120 |
Motor power(kw) | 12.5 |
L*W*H(m) | 2.57x0.97x1.62 |
Weight(kg) | 1150 |
Detailed pictures:
