Welcome to Xuchang Huarui Machinery Co.,Ltd.
 |
| Quantity: | |
|---|---|
Develop No.3
Huarui

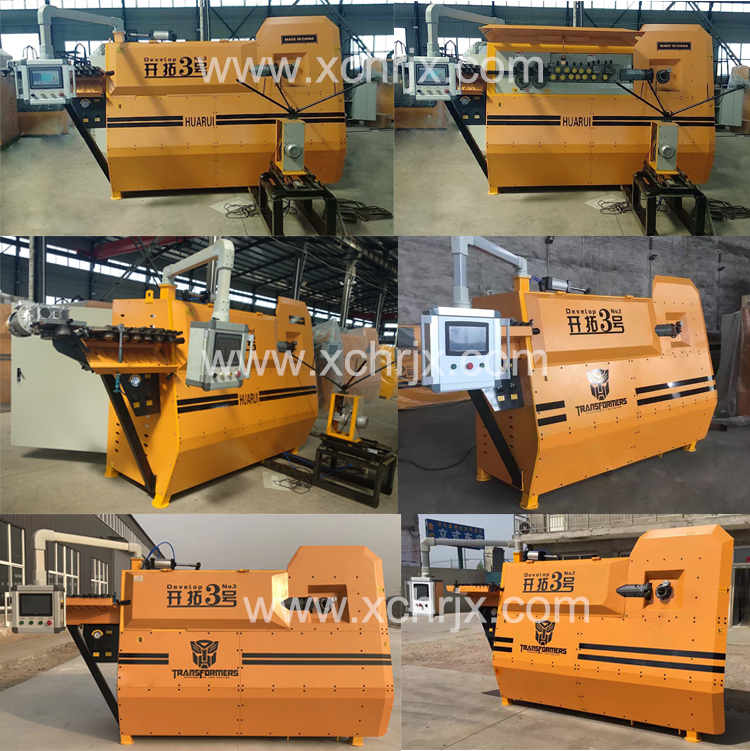

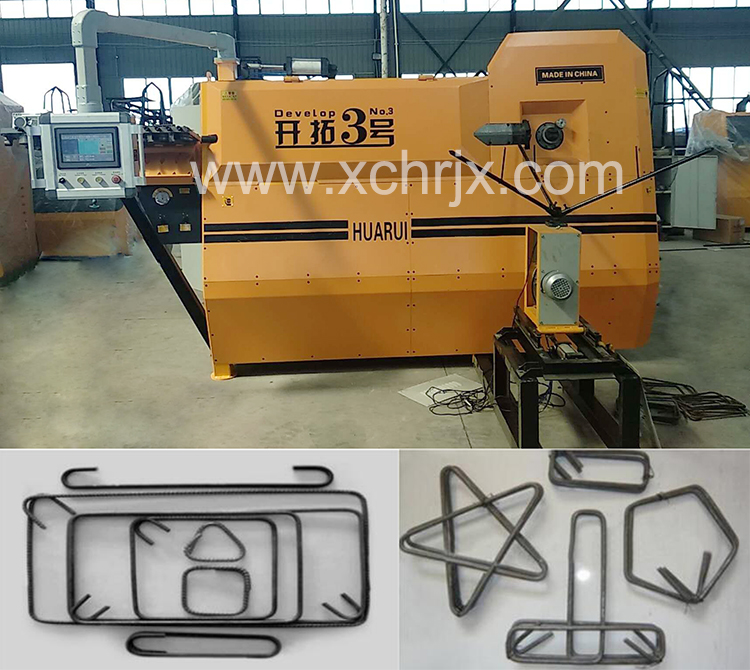

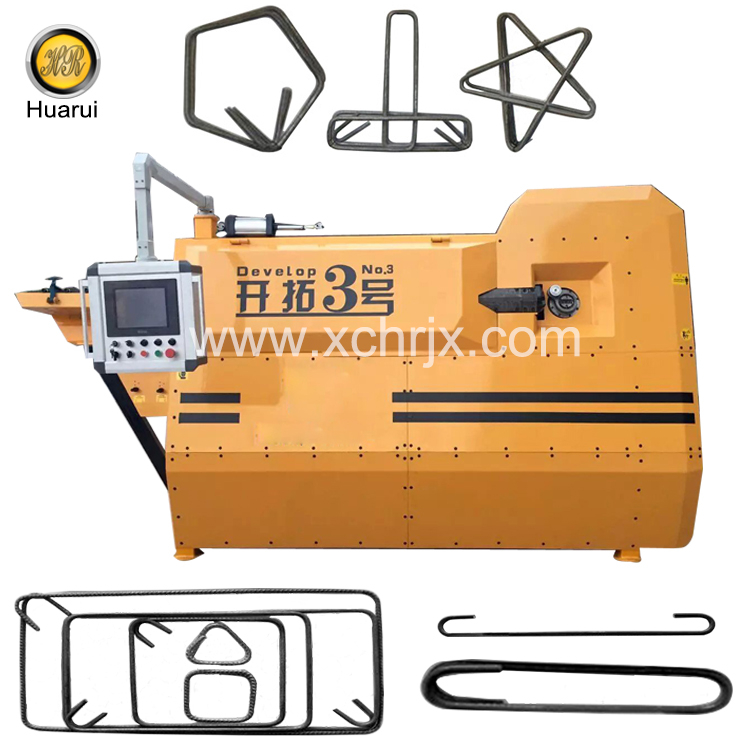

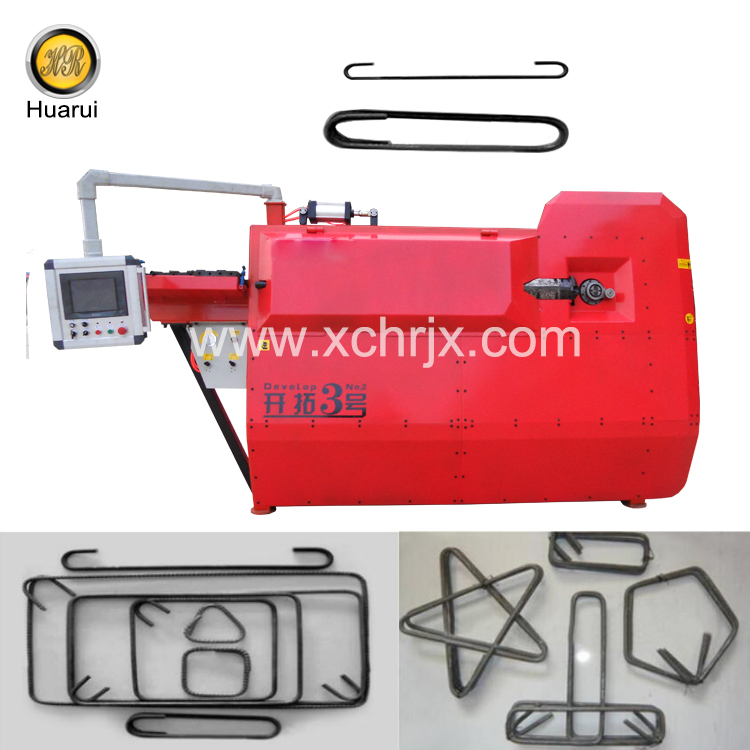

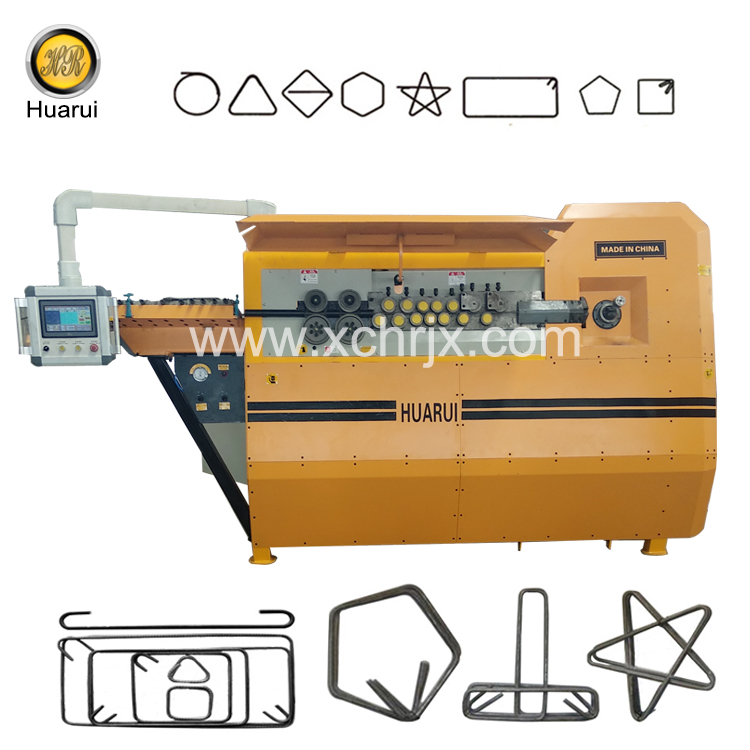

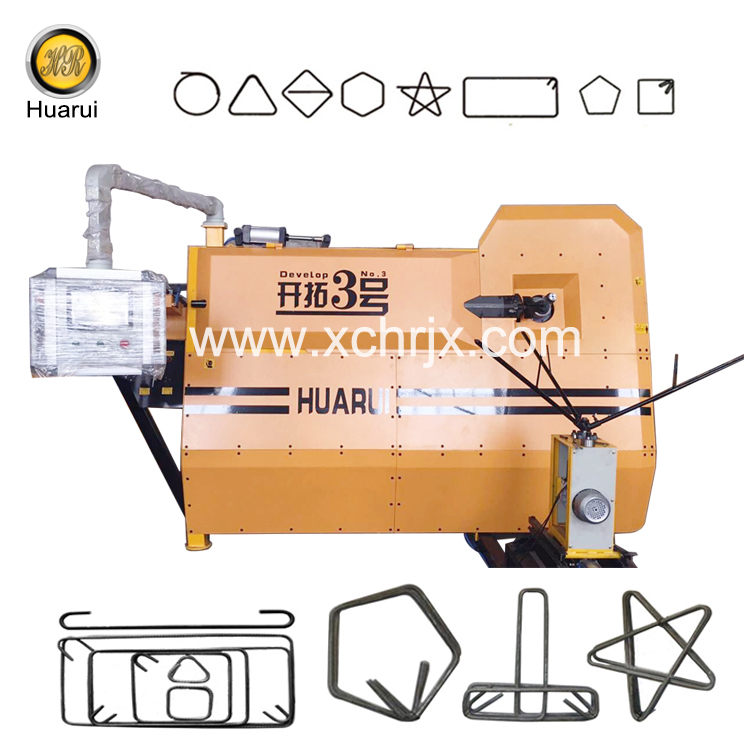

High quality Automatic Feeding Develop No.3 Rebar Bender
Product Features:
1. This equipment adopts servo controlling system;
2. Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc; can be processed in various sizes square, rectangle, triangle, polygon, etc.
3. Continuously bend various stirrup of plane figure;
4. Widely used in construction industry and rebar manufacturing enterprise;
5. High efficiency and accurate processing precision
Technical parameters:
Model No. | Develop NO. 3 |
Single wire Working Capacity (mm) | Round steel bar: 4-14 |
Ⅲ grade deformed steel bar: 4-14 | |
Double wire Working Capacity (mm) | Round steel bar: 4-10 |
Ⅲ grade deformed steel bar: 4-10 | |
Production efficiency *(Pcs/hour） | 1800 |
Max. bending angle | +-180° (bi-direction, Like I shaped) |
Max. feeding speed(m/h) | 4500 |
Max. bending speed(°／s) | 1000 |
Length Error (mm) | ±1.5 |
Angle Error(°) | ±1.5 |
The height between axis of center of bending and ground (mm) | 1380 |
Motor power(kw) | 28.5 |
L*W*H(m) | 4.1x1.1x2.1 |
Weight(kg) | 2200 |
High quality Automatic Feeding Develop No.3 Rebar Bender
Product Features:
1. This equipment adopts servo controlling system;
2. Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc; can be processed in various sizes square, rectangle, triangle, polygon, etc.
3. Continuously bend various stirrup of plane figure;
4. Widely used in construction industry and rebar manufacturing enterprise;
5. High efficiency and accurate processing precision
Technical parameters:
Model No. | Develop NO. 3 |
Single wire Working Capacity (mm) | Round steel bar: 4-14 |
Ⅲ grade deformed steel bar: 4-14 | |
Double wire Working Capacity (mm) | Round steel bar: 4-10 |
Ⅲ grade deformed steel bar: 4-10 | |
Production efficiency *(Pcs/hour） | 1800 |
Max. bending angle | +-180° (bi-direction, Like I shaped) |
Max. feeding speed(m/h) | 4500 |
Max. bending speed(°／s) | 1000 |
Length Error (mm) | ±1.5 |
Angle Error(°) | ±1.5 |
The height between axis of center of bending and ground (mm) | 1380 |
Motor power(kw) | 28.5 |
L*W*H(m) | 4.1x1.1x2.1 |
Weight(kg) | 2200 |
