PD5-12D
Huarui

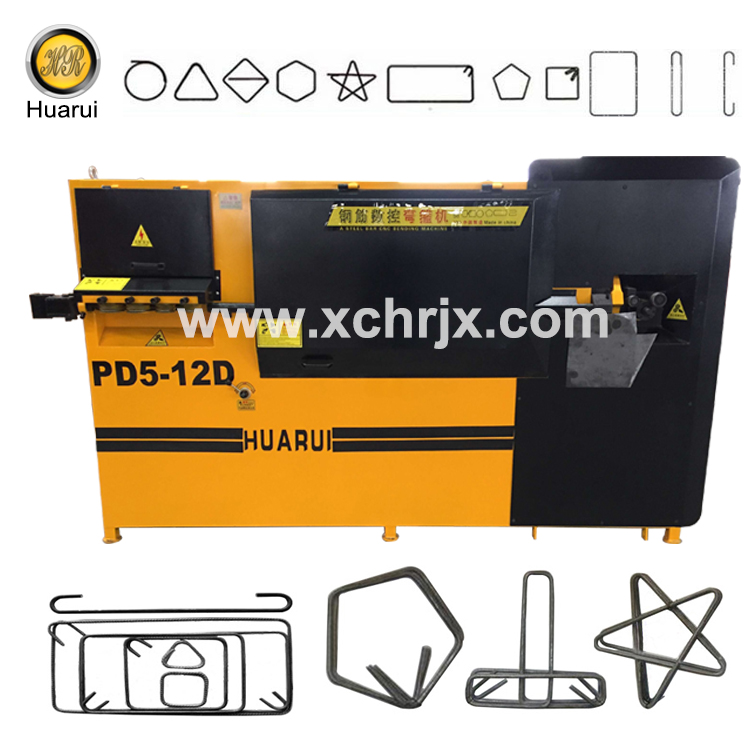

Automatic PD5-12D Precision Bending Equipment
Product Features:
1. This equipment adopts servo controlling system;
2. Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc;
3. Max bending diameter of rebar is 10mm;
4. Continuously bend various stirrup of plane figure;
5. Bidirectional bending function,rebar stirrup bending machine can make special-shaped;
6. High efficiency and accurate processing precision.
7. Double roller synchronization with a wire feed system,easy to use and more convenient to study.
Technical parameters:
Model No. | PD5-12D |
Single Line Working Capacity(mm) | Round steel bar: 4-10 |
Ⅲ grade deformed steel bar: 4-8 | |
Double Line Working Capacity(mm) | Round steel bar: 4-8 |
Ⅲ grade deformed steel bar: 4-8 | |
Production efficiency (pcs/hour) | 1800 |
Max. bending angle | 180° |
Max. feeding speed(m/h) | 3000 |
Max. bending speed(°／s) | 1000 |
Length Error(mm) | ±1.5 |
Angle Error(°) | ±1 |
The height between axis of center of bending and ground(mm) | 1180 |
Motor power(kw) | 18.5 |
L*W*H(mm) | 3700x1100x1750 |
Weight(kg) | 1600 |
Machine Pictures:
