PD5-12A
Huarui

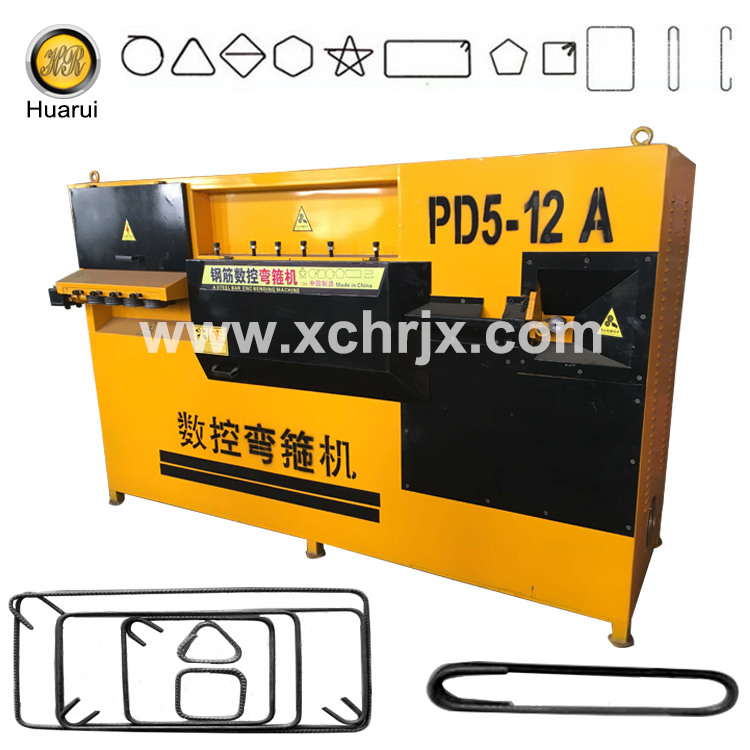

Good Quality PD5-12A Wire Bending Machine
Product Features:
1. This equipment adopt servo controlling system;
2. Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc; can be processed in various sizes square, rectangle, triangle, polygon, etc.
3. Continuously bend various stirrup of plane figure;
4. Widely used in construction industry and rebar manufacturing enterprise;
5. High efficiency and accurate processing precision
Technical parameters:
Model No. | PD5-12A |
Single Line Working Capacity(mm) | Round steel bar:4-8 |
Ⅲ grade deformed steel bar: 4-6 | |
Double Line Working Capacity(mm) | Round steel bar: 4-6 |
Ⅲ grade deformed steel bar: 4 | |
Production efficiency (pcs/hour) | 1400 |
Max. bending angle | 180° |
Max. feeding speed(m/h) | 3000 |
Max. bending speed(°／s) | 1000 |
Length Error(mm) | ±1 |
Angle Error(°) | ±1 |
The height between axis of center of bending and ground(mm) | 1120 |
Motor power(kw) | 14.5 |
L*W*H(mm) | 3160x1100x1650 |
Weight(kg) | 1200 |
