Fast Speed Automatic Rebar Stirrup Bender Steel Wire Bending Machine

GW24KG, GW/28KG, GW32KG, GW42KG Steel Wire Bending Machine is Easy to use, good safety performance, standard angle, fast speed, convenient transportation

Color:
Bending material:
Spindle Speed:
Quantity:
  • GW24KG, GW/28KG, GW32KG, GW42KG
  • Huarui

Fast Speed Automatic Rebar Stirrup Bender Steel Wire Bending Machine


Machine performance characteristics

1.Easy to use, good safety performance, standard angle, fast speed, convenient transportation

2. Simple operation, only one person is required at work; no training is needed, the machine will be operated when it is turned on; this machine is a steel bar bending machine, manual control or foot button, and it will automatically return to the position when it reaches the limited position, with good safety performance.

3. Standard angle, the machine can adjust the angle range between 0-360 degrees, using two foot switches of 90 degrees and 135 degrees, the angle can be changed freely

4. Fast speed, the machine runs between 25-30 revolutions per minute, the bending hoop per hour is about 500-600 per hour, the bending of 6-8mm steel bar is about 2-3 times faster than manual, and the bending of 10-14mm steel bar 4-5 times faster than manual.


Main technical parameters

Model No.

Features

Pictures

GW-24KG

bar stirrup bending machine

1. Motor power: 3KW (4 P)

2. Size: 850*550*875mm

3. NG: 155kg

4. Bending max.angle: 180˚

5. Bending Dia.:

Round steel: 5-25mm(Q235)

Deformed steel bar: 5-22mm

6. Spindle Speed: 28r/min

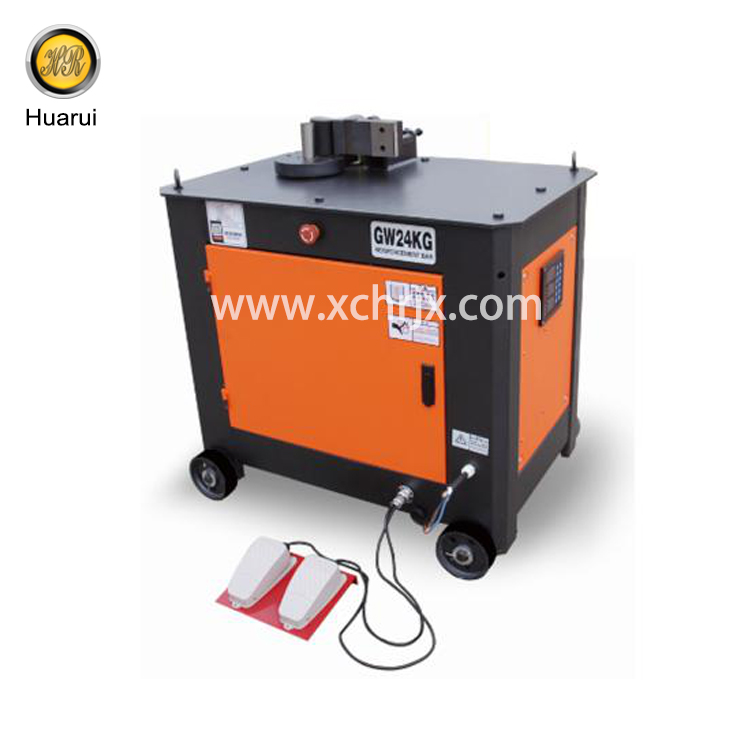

GW24KG

GW-28KG

bar stirrup bending machine

1. Motor power: 3KW (4 P)

2. Size: 850*550*875mm

3. NG: 175kg

4. Bending max.angle: 180˚

5. Bending Dia.:

Round steel: 5-28mm(Q235)

Deformed steel bar: 5-25mm

6. Spindle Speed: 28r/min

GW28KG

GW-32KG

bar stirrup bending machine

1. Motor power: 3KW (4 P)

2. Size: 700*700*865mm

3. NG: 220kg

4. Bending max.angle: 180˚

5. Bending Dia.:

Round steel: 5-32mm(Q235)

Deformed steel bar: 5-30mm

6. Spindle Speed: 15-18r/min

GW32KG 1

GW-42KG

bar stirrup bending machine

1. Motor power: 4KW (4 P)

2. Size: 900*700*870mm

3. NG: 300kg

4. Bending max.angle: 180˚

5. Bending Dia.:

Round steel: 5-42mm(Q235)

Deformed steel bar: 5-36mm

6. Spindle Speed: 15r/min

GW42KG 1


More pictures

Bending machine


Packaging and shipping

Shipping and packaging
