HR5-12S
Huarui

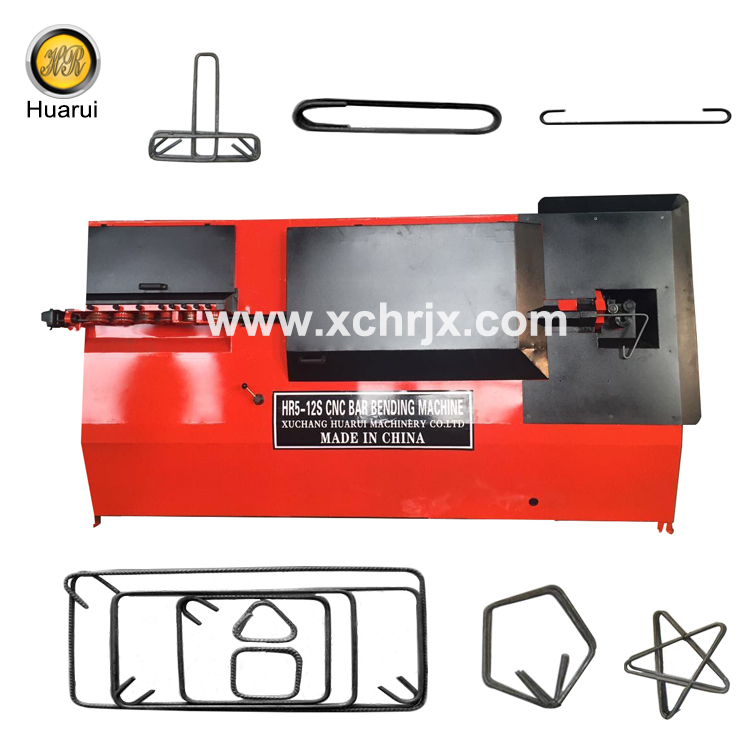

Hot Sale 10mm 12mm HR5-12S Rebar Stirrup Cnc Wire Bending Machine
Product Features:
1. The automatic stirrup bender is used for bending Steel wire/Steel bar/ Rebar/ Stirrup.
2. The automatic stirrup bender uses high-quality, fast, energy-saving steel construction process, ensuring efficiency and effective.
3. But also provides the premise for the low price and high quality.

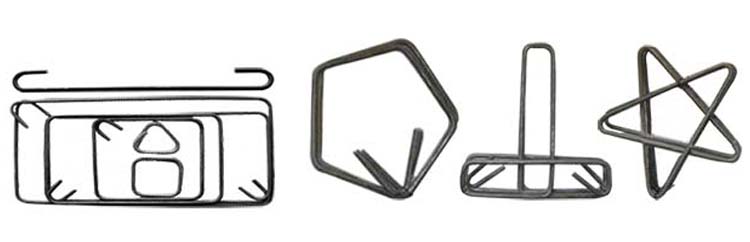

4. Widely variety, can produce more than 100 different types wokpiece.
5. This equipment adopts servo controlling system;
6.Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc;
7.Max bending diameter of rebar is 12mm;
Technical parameters:
Model No. | HR5-12S |
Single Line Working Capacity (mm) | Round steel bar: 4-12 |
Ⅲ grade deformed steel bar: 4-10 | |
Double Line Working Capacity (mm) | Round steel bar: 4-10 |
Ⅲ grade deformed steel bar: 4-8 | |
Production efficiency (pcs/hour) | 1800 |
Max. bending angle | 180° |
Max. feeding speed (m/h) | 3000 |
Max. bending speed (°／s) | 1000 |
Length Error(mm) | ±1.5 |
Angle Error (°) | ±1.5 |
The height between axis of center of bending and ground (mm) | 1380 |
Motor power (kw) | 27.5 |
L*W*H (mm) | 4100x1100x2100 |
Weight (kg) | 2000 |

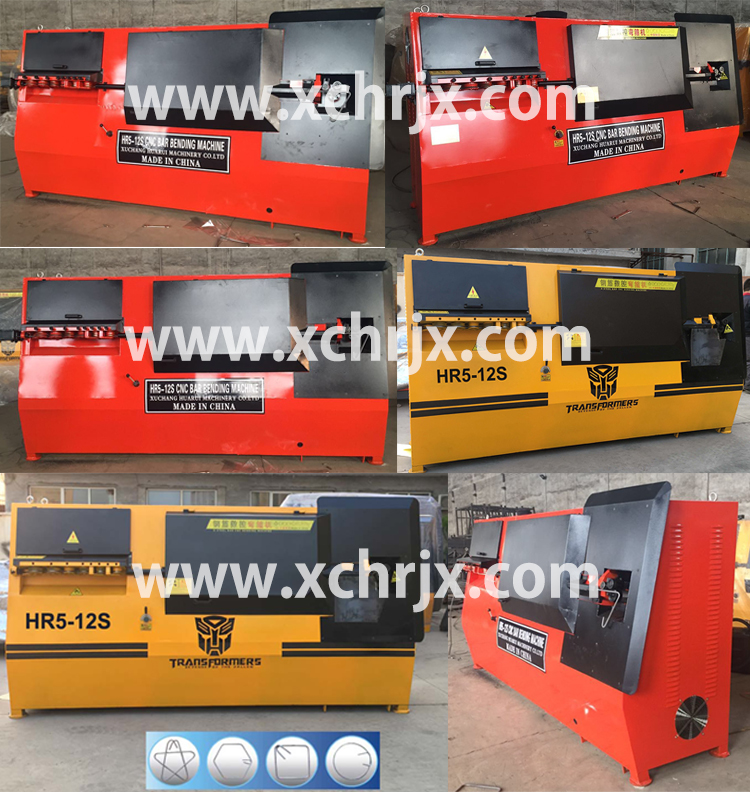

Machine Pictures:
