PD5-12A, PD5-12C, PD5-12D, PD5-12S
Huarui

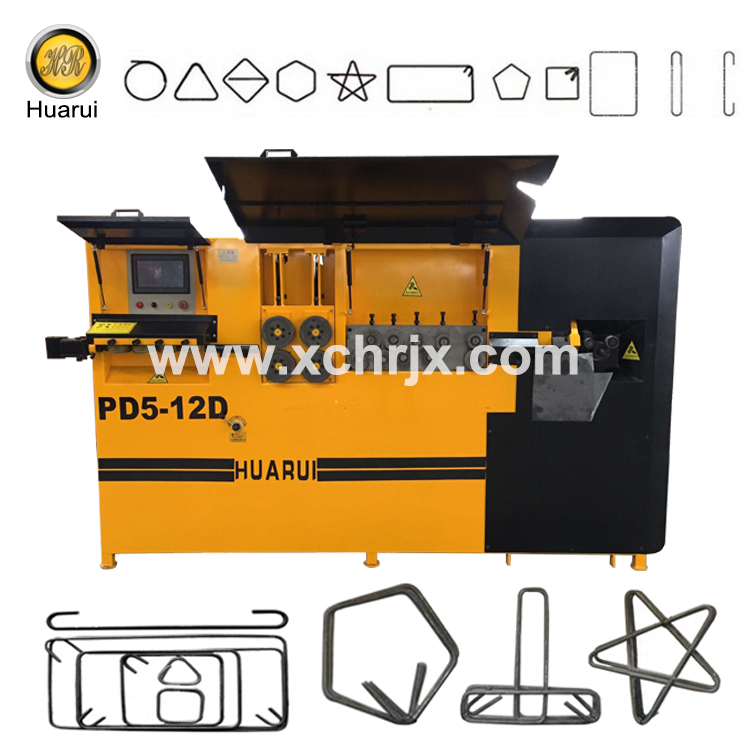

Factory Price PD Series CNC Stirrup Bending Machine
Product Features:
1. This equipment adopt servo controlling system;
2. Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc; can be processed in various sizes square, rectangle, triangle, polygon, etc.
3. Continuously bend various stirrup of plane figure;
4. Widely used in construction industry and rebar manufacturing enterprise;
5. High efficiency and accurate processing precision
Main technical parameter:
Model No. | PD5-12A | PD5-12C | PD5-12D | PD5-12S |
Single Line Working Capacity(mm) | Round steel bar: | Round steel bar: 4-10 | Round steel bar: 4-10 | Round steel bar: 4-12 |
Ⅲ grade deformed steel bar: 4-6 | Ⅲ grade deformed steel bar: 4-8 | Ⅲ grade deformed steel bar: 4-8 | Ⅲ grade deformed steel bar: 4-10 | |
Double Line Working Capacity(mm) | Round steel bar: 4-6 | Round steel bar: 4-8 | Round steel bar: 4-8 | Round steel bar: 4-10 |
Ⅲ grade deformed steel bar: 4 | Ⅲ grade deformed steel bar: 4-6 | Ⅲ grade deformed steel bar: 4-8 | Ⅲ grade deformed steel bar: 4-8 | |
Production efficiency （pcs/hour） | 1400 | 1400 | 1800 | 1800 |
Max. bending angle | 180° | 180° | 180° | 180° |
Max. feeding speed(m/h) | 3000 | 3000 | 3000 | 3000 |
Max. bending speed(°／s) | 1000 | 1000 | 1000 | 1000 |
Length Error(mm) | ±1 | ±1 | ±1.5 | ±1.5 |
Angle Error(°) | ±1 | ±1 | ±1 | ±1.5 |
The height between axis of center of bending and ground(mm) | 1120 | 1120 | 1180 | 1380 |
Motor power(kw) | 14.5 | 16.5 | 18.5 | 27.5 |
L*W*H(mm) | 3160x1100x1650 | 3660x1100x1750 | 3700x1100x1750 | 4100x1100x2100 |
Weight(kg) | 1200 | 1400 | 1600 | 2000 |
