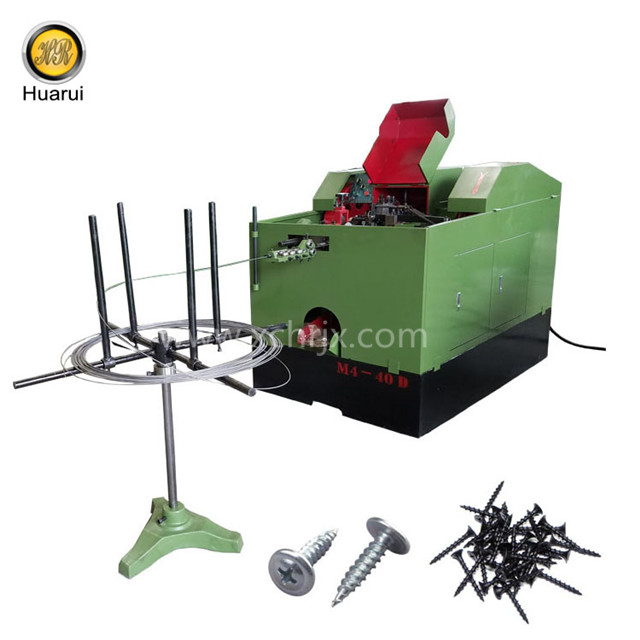

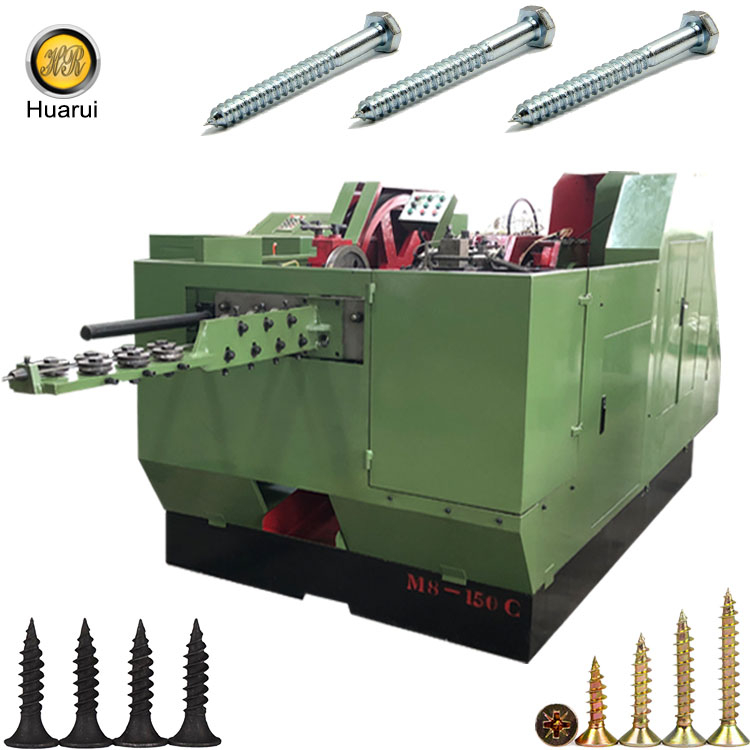

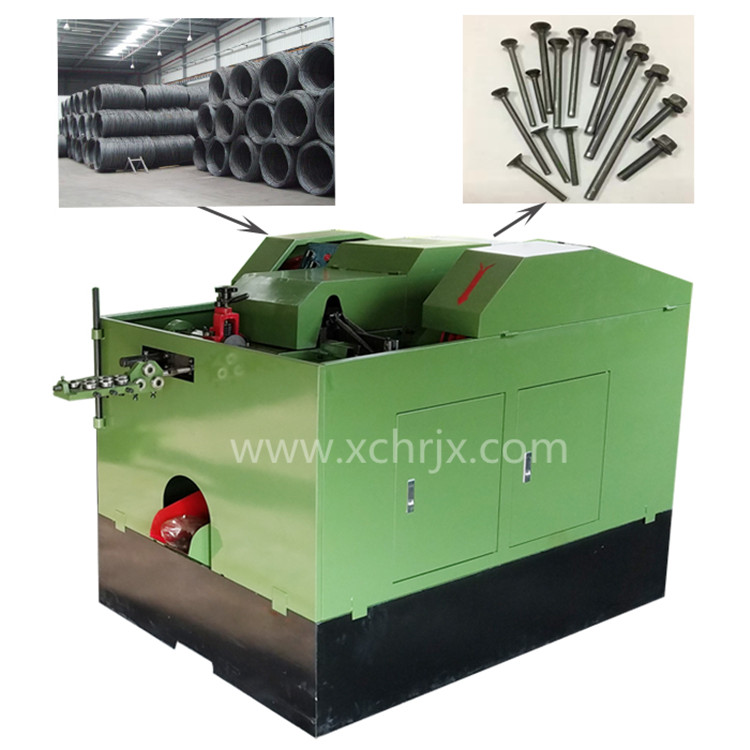

Automatic Screw Making Machine / Cold Heading Machine with Best Price
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Main technical parameters
Model | Max. Screw Dia. (mm) | Max. Screw length (mm) | Capacity (pcs/min) | Motor (kw) | Weight(Ton) | Overall size (m) |
ZM3-18A/B | 3 | 18 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
ZM3-28A/B | 3 | 28 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
ZM4-28B | 4 | 28 | 120-160 | 1.5/0.37 | 0.97 | 1.5*0.9*0.9 |
ZM4-28D | 4.5 | 28 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1*1.2 |
ZM4-40B | 4 | 40 | 120-150 | 1.5/0.37 | 0.97 | 1.6*1*1.2 |
ZM4-40D | 4.5 | 40 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1.1*1.1 |
ZM5-40B | 6 | 40 | 120-150 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
ZM5-60B | 6 | 60 | 110-140 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
ZM5-80B | 6 | 80 | 80-100 | 2.2/0.37 | 1.9 | 2*1.1*1.2 |
ZM5-100B | 6 | 100 | 60-80 | 3/0.18 | 2.1 | 2.4*1.2*1.2 |
ZM5-120B | 6 | 120 | 50-70 | 3.6/0.37 | 2.3 | 2.8*1.3*1.3 |
ZM6-60B | 8 | 60 | 80-110 | 4/0.37 | 2.8 | 2.3*1.3*1.3 |
ZM6-100B | 8 | 100 | 60-90 | 4/0.37 | 2.7 | 2.3*1.3*1.3 |
ZM6-120B | 8 | 120 | 60-70 | 4/0.37 | 3 | 2.4*1.3*1.4 |
ZM6-170B | 8 | 170 | 40-70 | 4/0.37 | 3.7 | 3*1.3*1.5 |
ZM6-200B | 8 | 200 | 40-55 | 4/0.37 | 3.7 | 3*1.3*1.5 |
ZM8-120B | 10 | 120 | 50-90 | 5.5/0.37 | 4.6 | 3.4*1.5*1.5 |
ZM8-130B | 10 | 130 | 50-90 | 5.5/0.37 | 4.6 | 3.4*1.51.5 |
ZM8-130C | 10 | 130 | 50-90 | 5.5/0.37 | 4.6 | 3.4*1.51.5 |
ZM8-150C | 10 | 150 | 40-50 | 5.5/0.37 | 5 | 3.5*1.7*1.7 |
ZM8-200B | 10 | 200 | 25-60 | 7.5/0.37 | 6 | 3.8*1.6*1.7 |
ZM10-120B | 12 | 120 | 40-70 | 11/0.75 | 7 | 3.3*1.71.7 |
ZM10-170C | 12 | 170 | 40-60 | 11/0.75 | 7.5 | 4.2*1.81.7 |
ZM10-220C | 12 | 220 | 35-60 | 11/0.75 | 7.5 | 4.2*1.81.7 |
ZM10-250C | 12 | 250 | 30-45 | 11/0.75 | 8.5 | 5*1.8*1.7 |
ZM10-300C | 12 | 300 | 25-35 | 15/0.75 | 9 | 5*1.9*2.1 |
ZM10-360C | 12 | 360 | 20-30 | 15/0.75 | 12 | 6.7*2*2.6 |
ZM12-150C | 14 | 150 | 40-50 | 15/0.75 | 10 | 3.9*1.9*1.8 |
ZM12-250C | 14 | 250 | 35-50 | 15/0.75 | 11 | 5.3*2.2*1.9 |
ZM14-150C | 16 | 150 | 40-50 | 11/0.75 | 10 | 4.5*2.2*2.15 |
ZM14-250C | 16 | 250 | 35-45 | 15/0.75 | 11 | 5*2.2*2.15 |

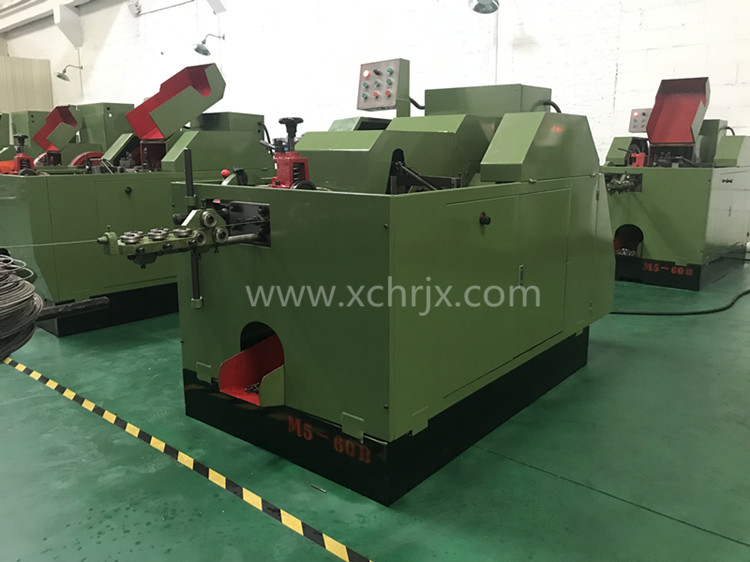

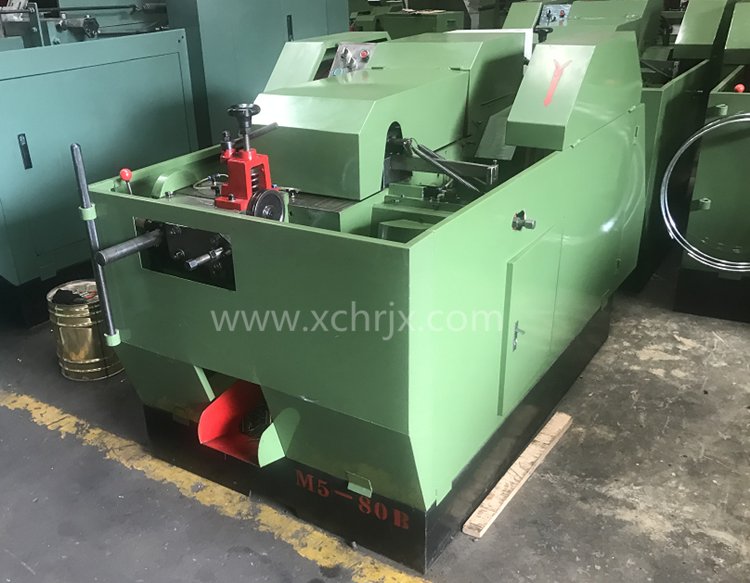

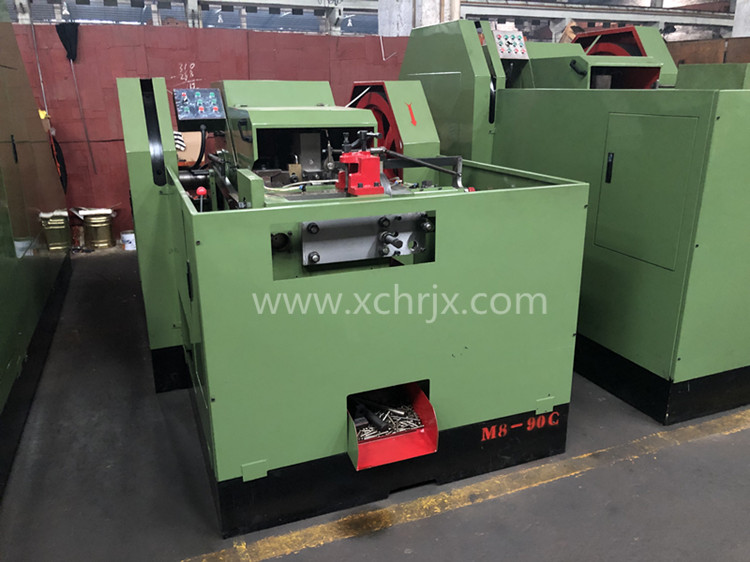

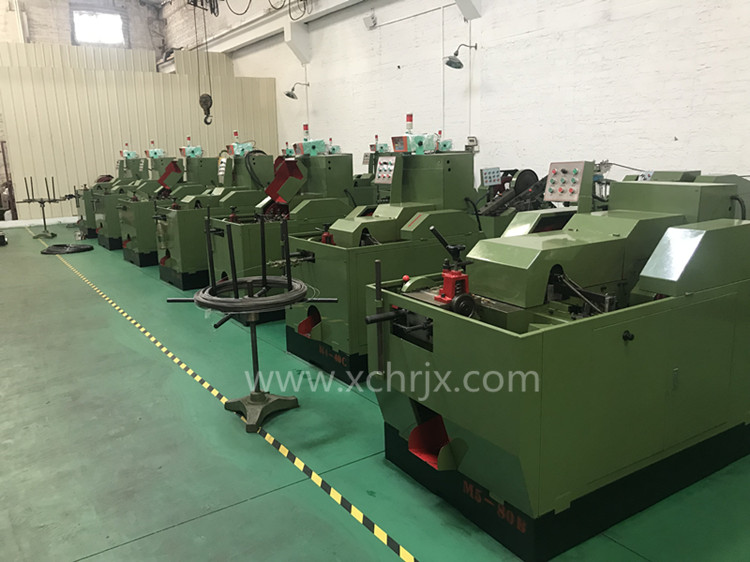

Machine display

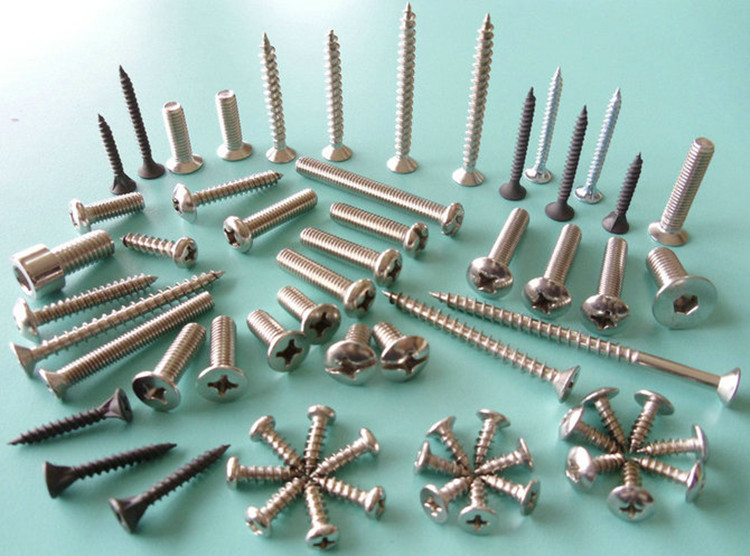

Screw pictures

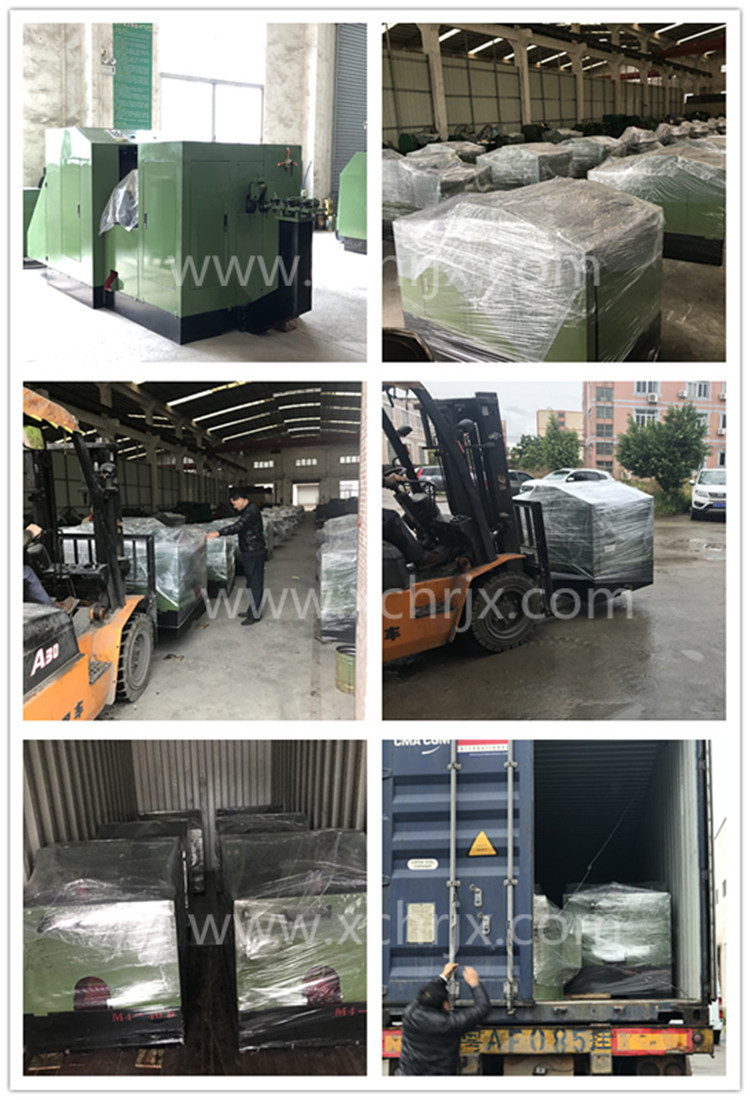

Loading and shipping to overseas customers
