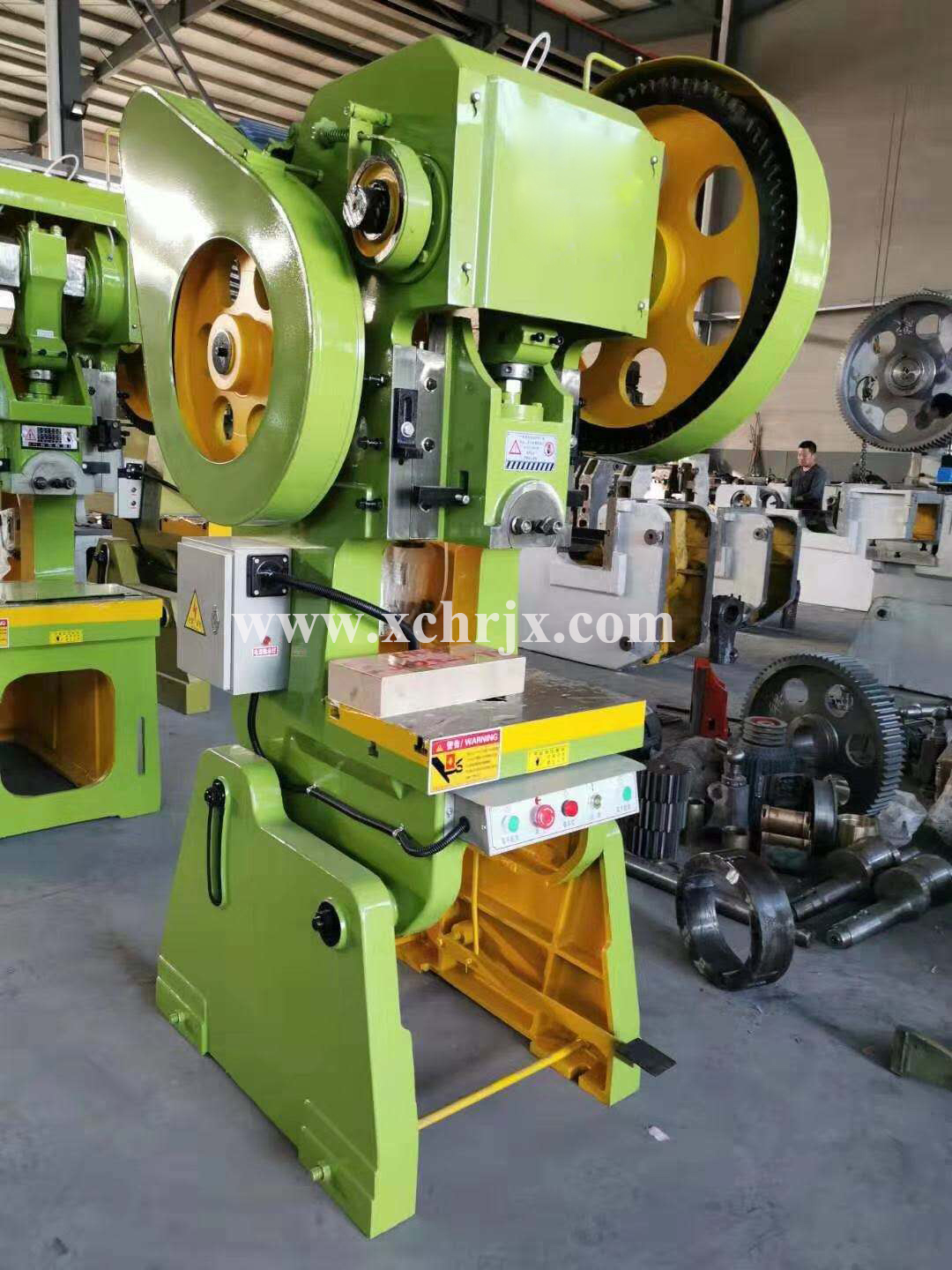

This is punching machine, which can make washers of the bolts

This is punching machine, which can make washers of the bolts

roofing nail making machine (58)

Main Technical Parameters of Each Model:

Machine Model		HR23-25T	HR23-40T	HR23-63T
Nominal pressure		250KN	400KN	630KN
Slider stroke		70mm	100mm	100mm
Number of slider strokes		70times/min	70times/min	50times/min
Maximum closed height		290mm	350mm	380mm
Closed height adjustment		40mm	60mm	60mm
Distance between slider center and fuselage		200mm	250mm	280mm
Table size		530x330mm	640x420mm	700x450mm
Blanking hole diameter of table		130mm	160mm	190mm
Slider bottom surface size		200x170mm	250x190mm	310x220mm
Handle hole size (DxH)		40x60mm	50x100mm	50x100mm
Distance between fuselage columns		230mm	320mm	350mm
Backing plate thickness		45mm	70mm	80mm
Maximum tilt Angle		20°	20°	20°
Engine	Power	2.2KW	3KW	4KW
	Rotating speed	1430r/min	1420r/min	1440r/min
	Model	Y100L 1-4	Y100L 1-4	Y100L 1-4
Overall size		1.0x0.83x1.95m	1.4x1.1x2.3m	1.5x1.2x2.4m
Weight		1.1T	2.15T	2.8T

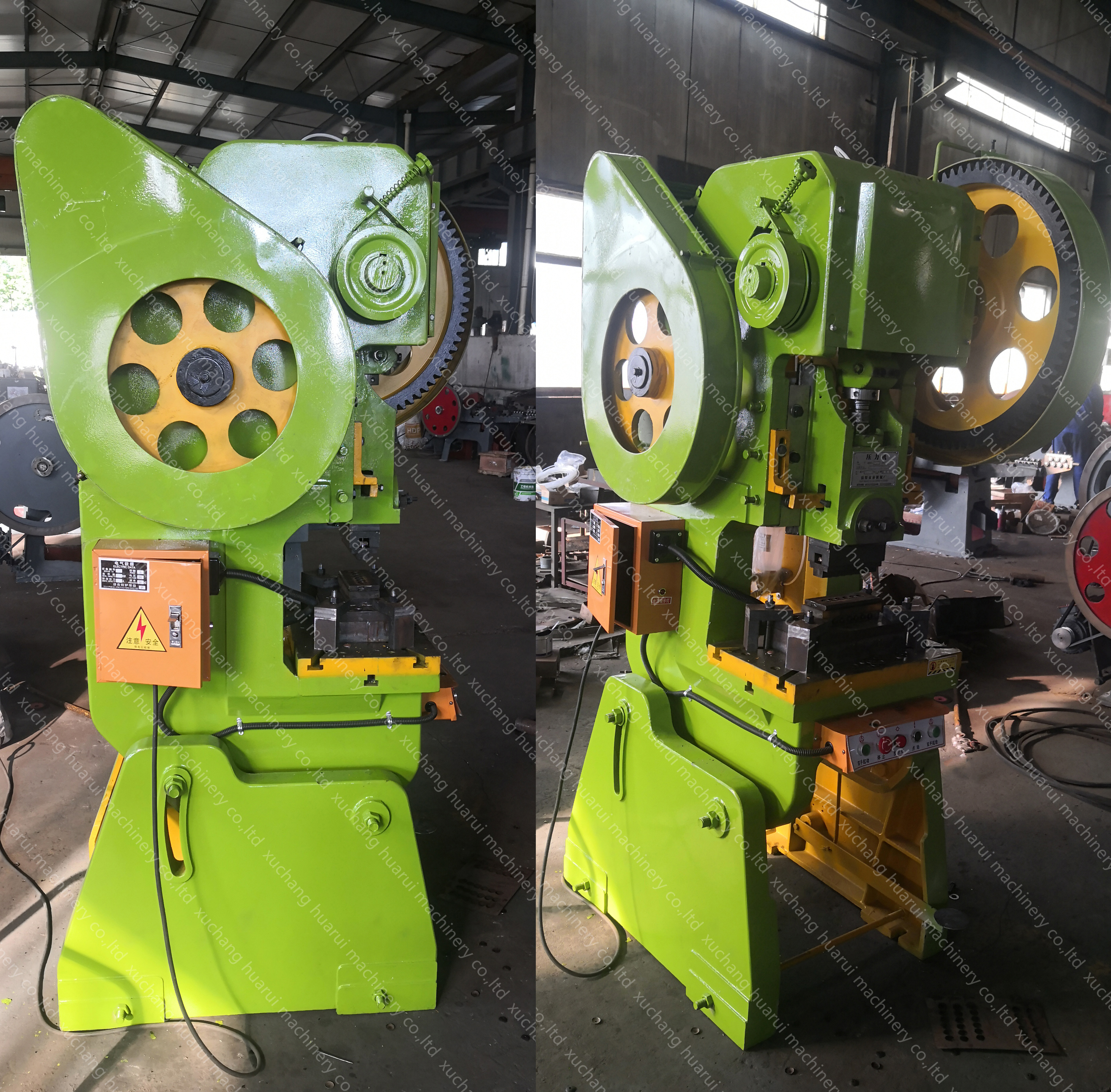

Machine Details:

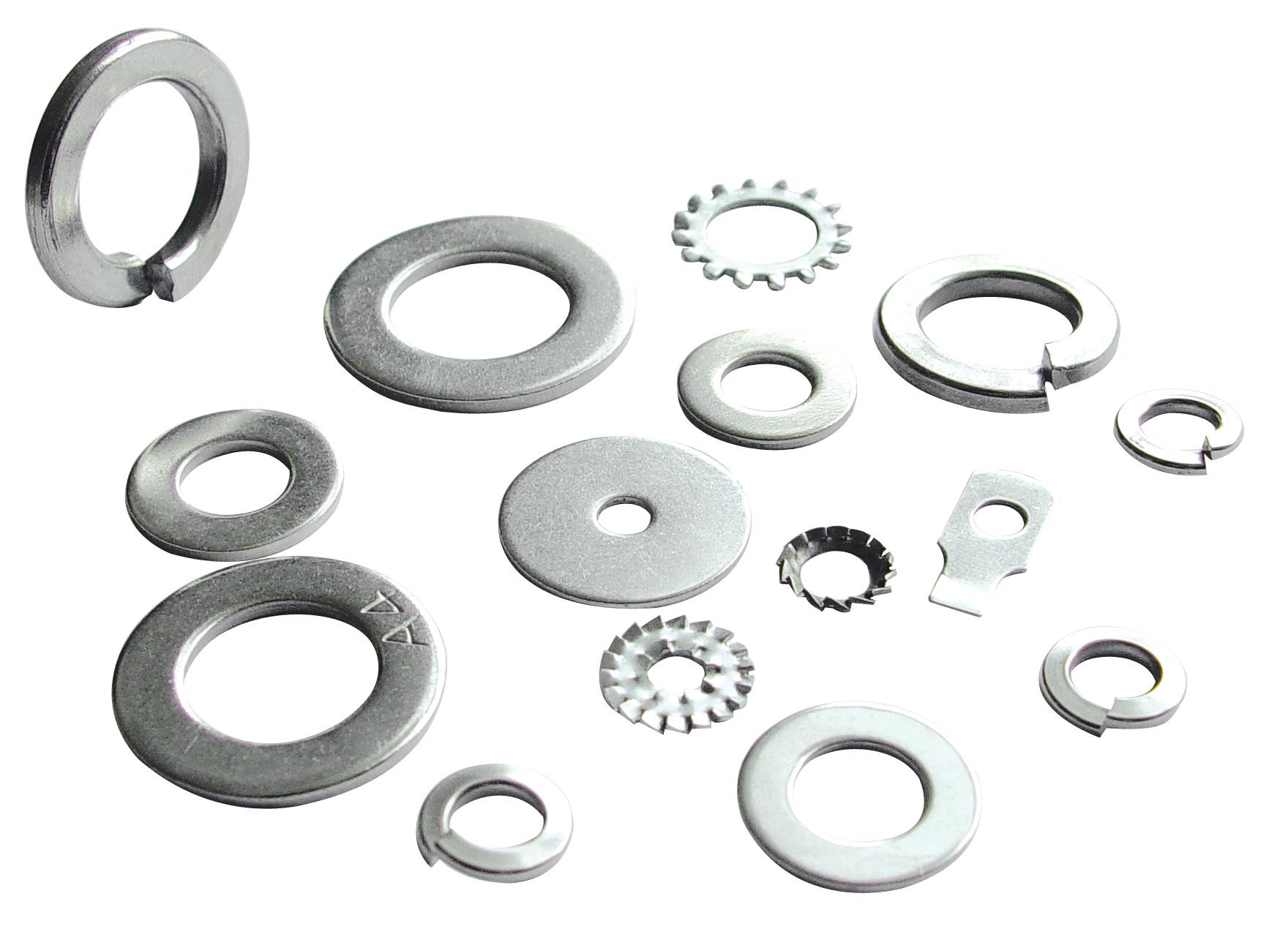

Finished Washer:
