Welcome to Xuchang Huarui Machinery Co.,Ltd.
 |
| Quantity: | |
|---|---|
QKJ-358
Huarui
Tire Block Cutting Machine/ Tire Blocks Cutter
1.Working principal
Tire block cutting machine is prepared for the crush of host machine, Not only it makes the cutting strip-type waste rubber cut into about 3*5cm small pieces, but also can enter into host machine again through mutual use between sword and fixed knife, convenient to feed, high output and won’t damage roller easily, power is 5.5kw, revolting speech is 380r/min，shape dimension: 1m*0.8m*1.4m. To pay attention to the space between sword knife and fixed knife when the machine is in operation, best to keep at around 0.1mm, so that the steel wire can be cut off.
2.Technical parameters
| QKJ-358 Tire Block Cutter | |
Name | Technical parameter |
Motor power | 5.5 KW |
Capacity | 800kg/h |
Motor speed | 380r/min |
Specification of cutting slice | 3*5*6cm |
L*W*H | 1.0*0.8*1.4m |
Weight | 800 kg |

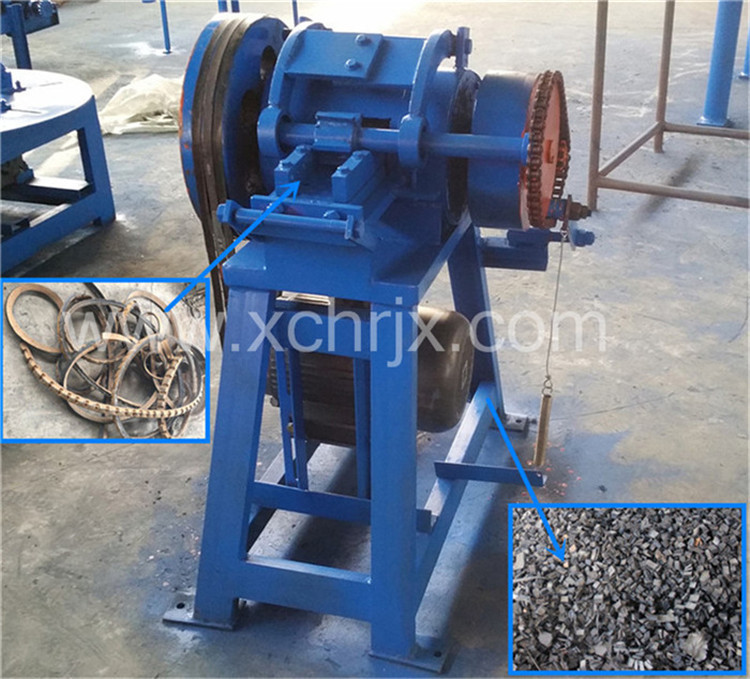

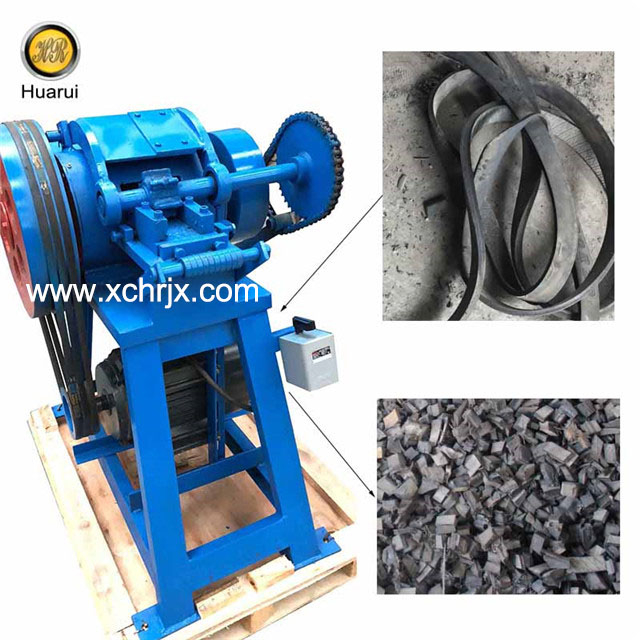

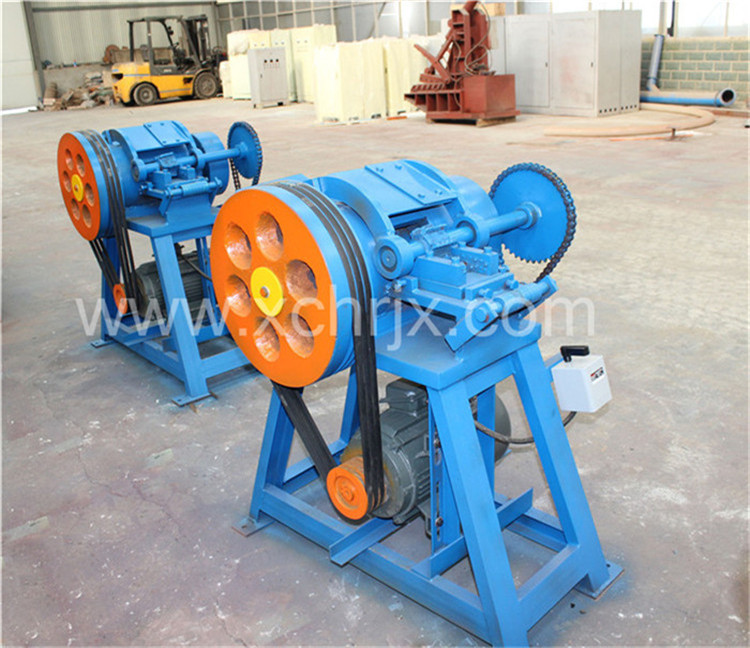

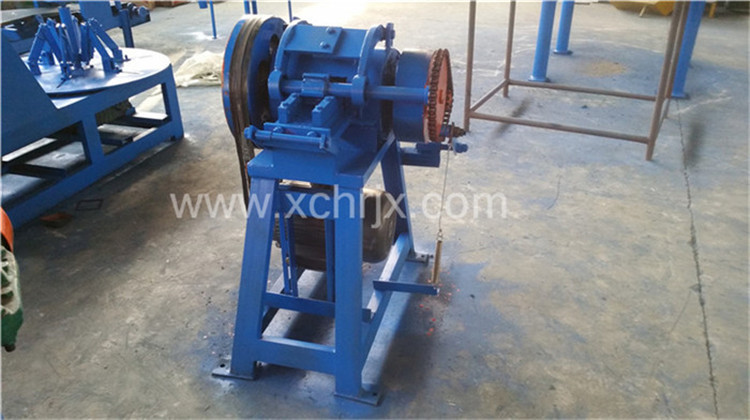

3. Detail pictures

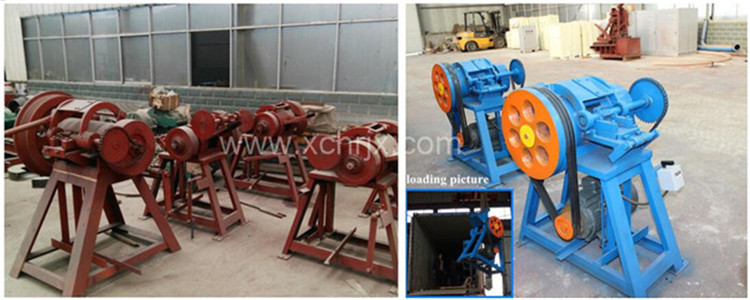

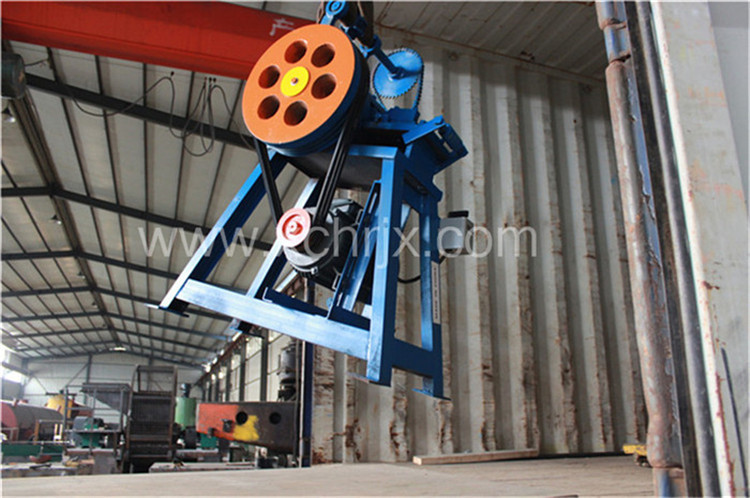

4. Shipment photos
5. Our certificate
