Product Introduction:

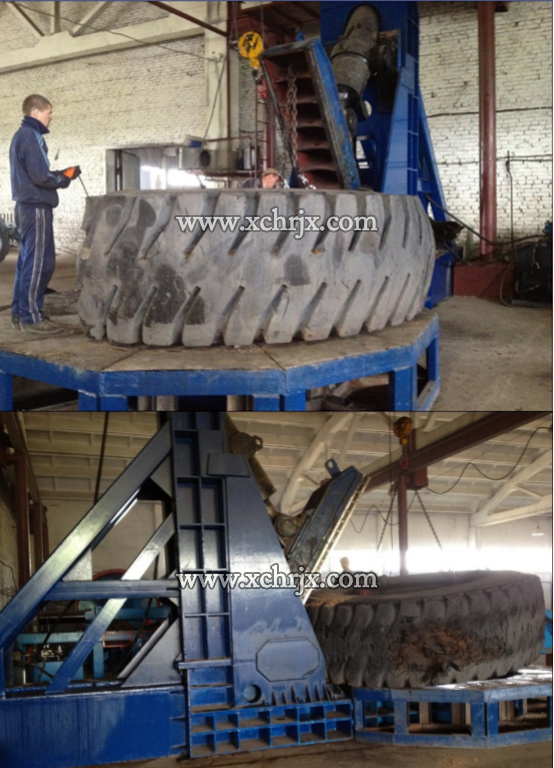

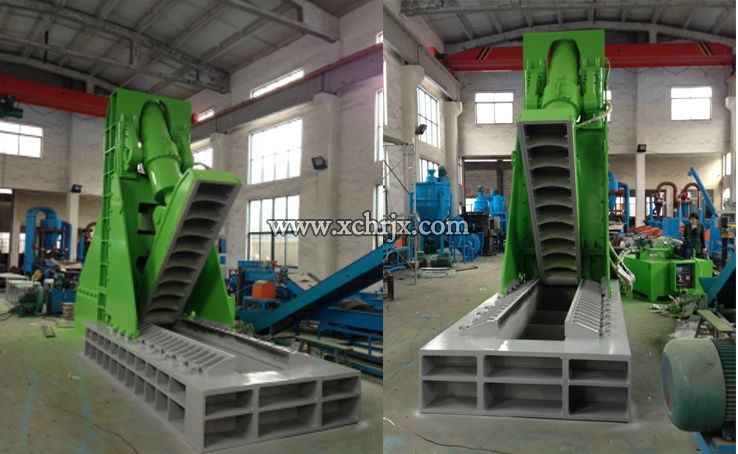

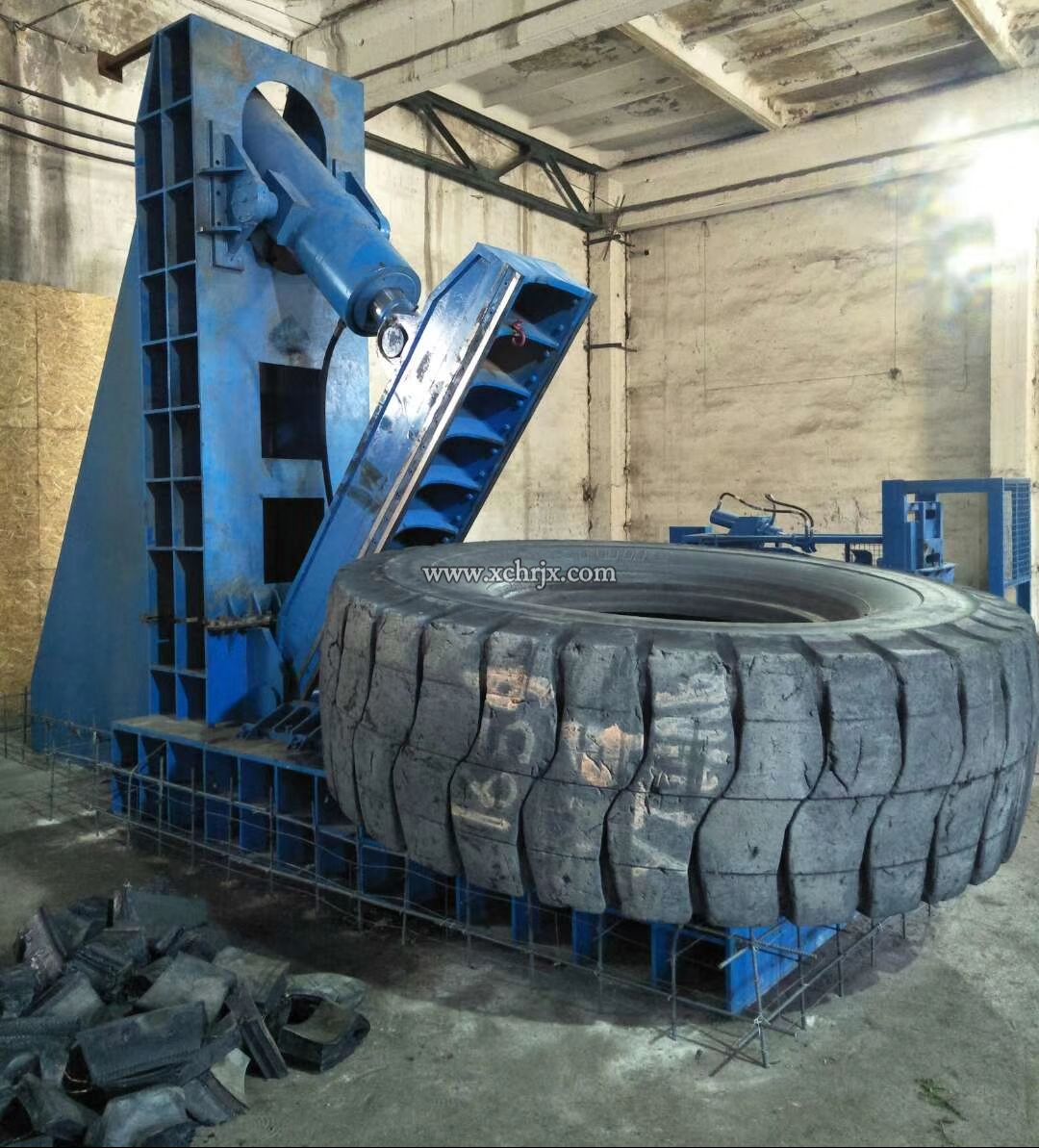

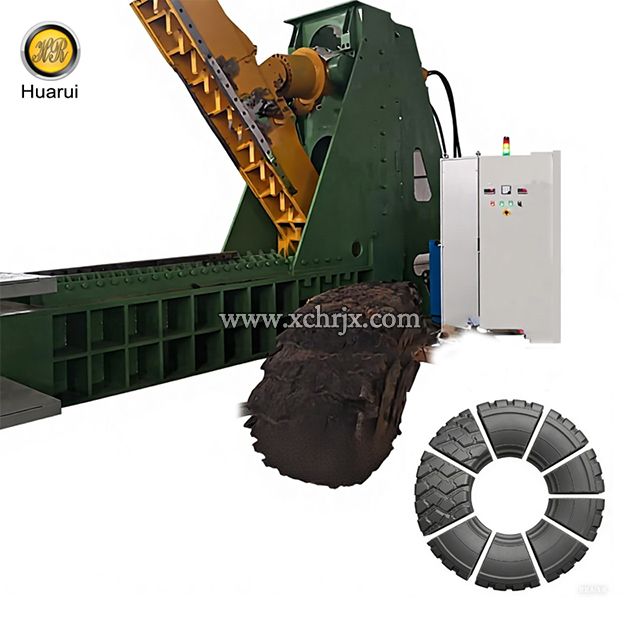

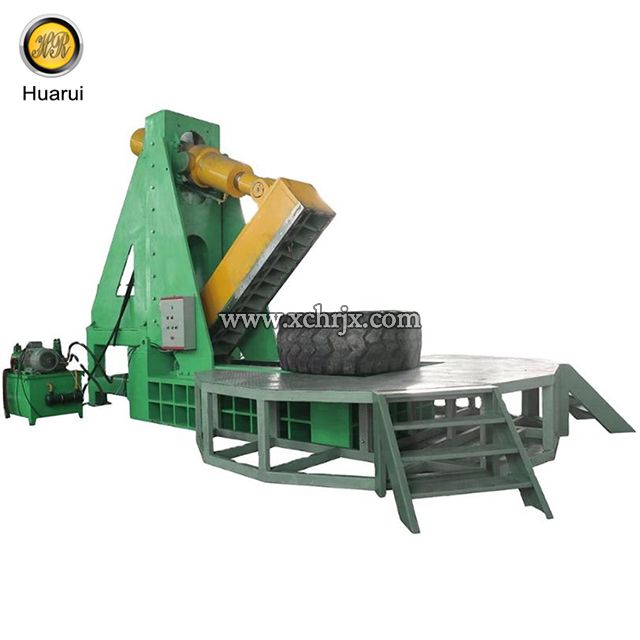

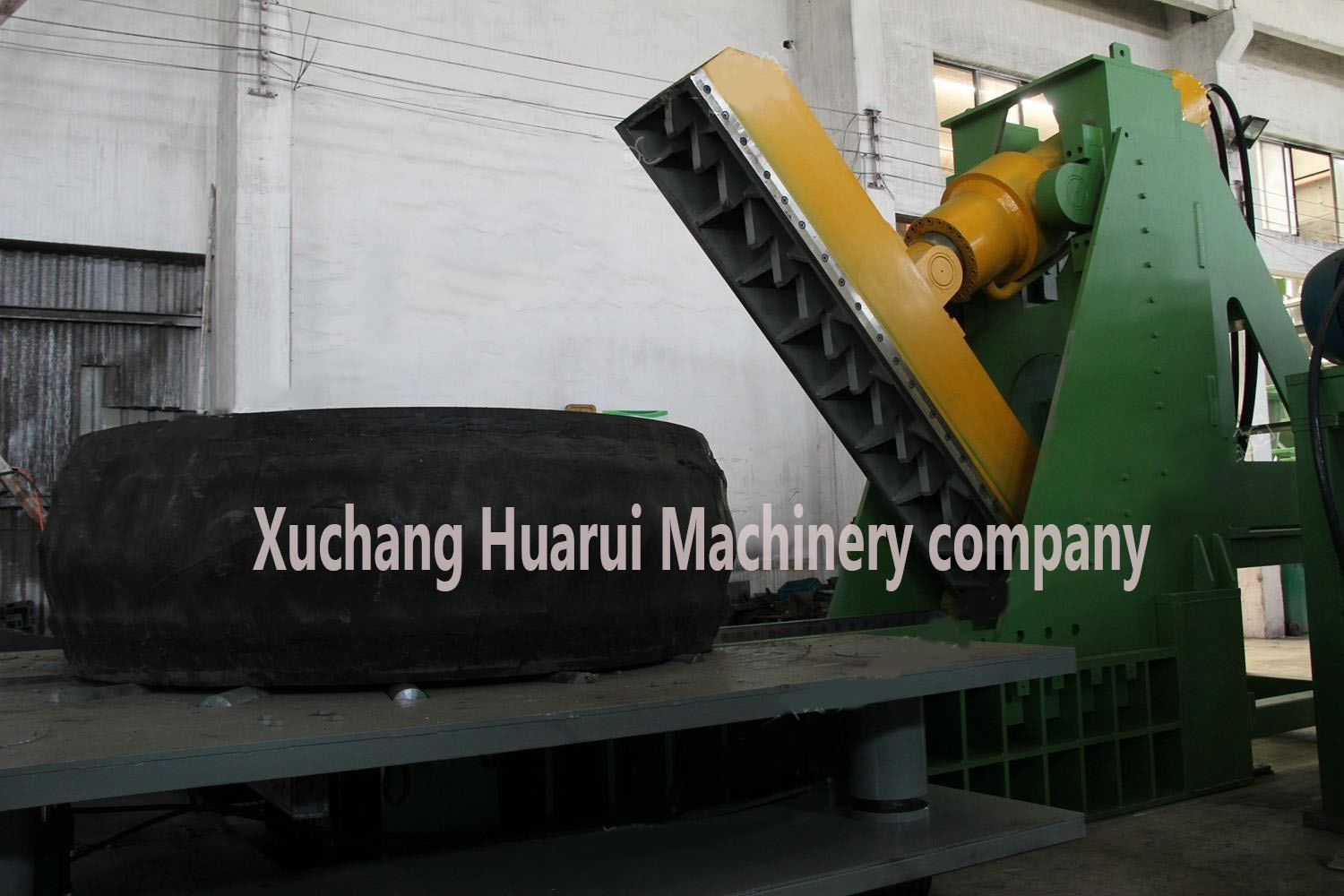

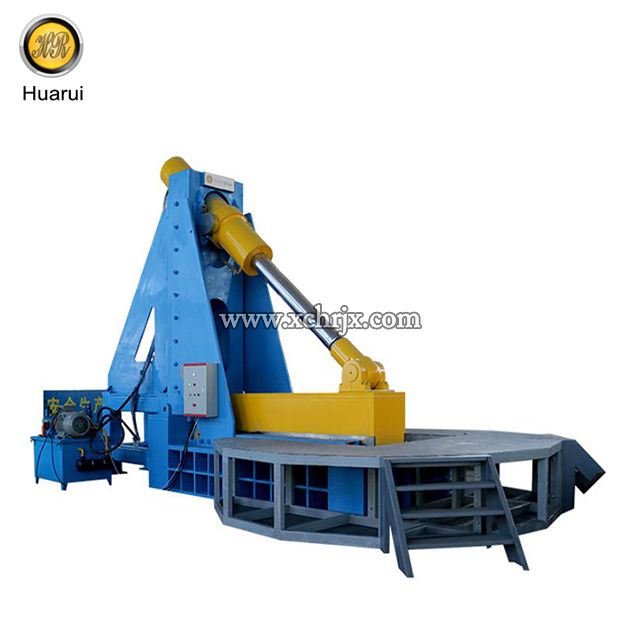

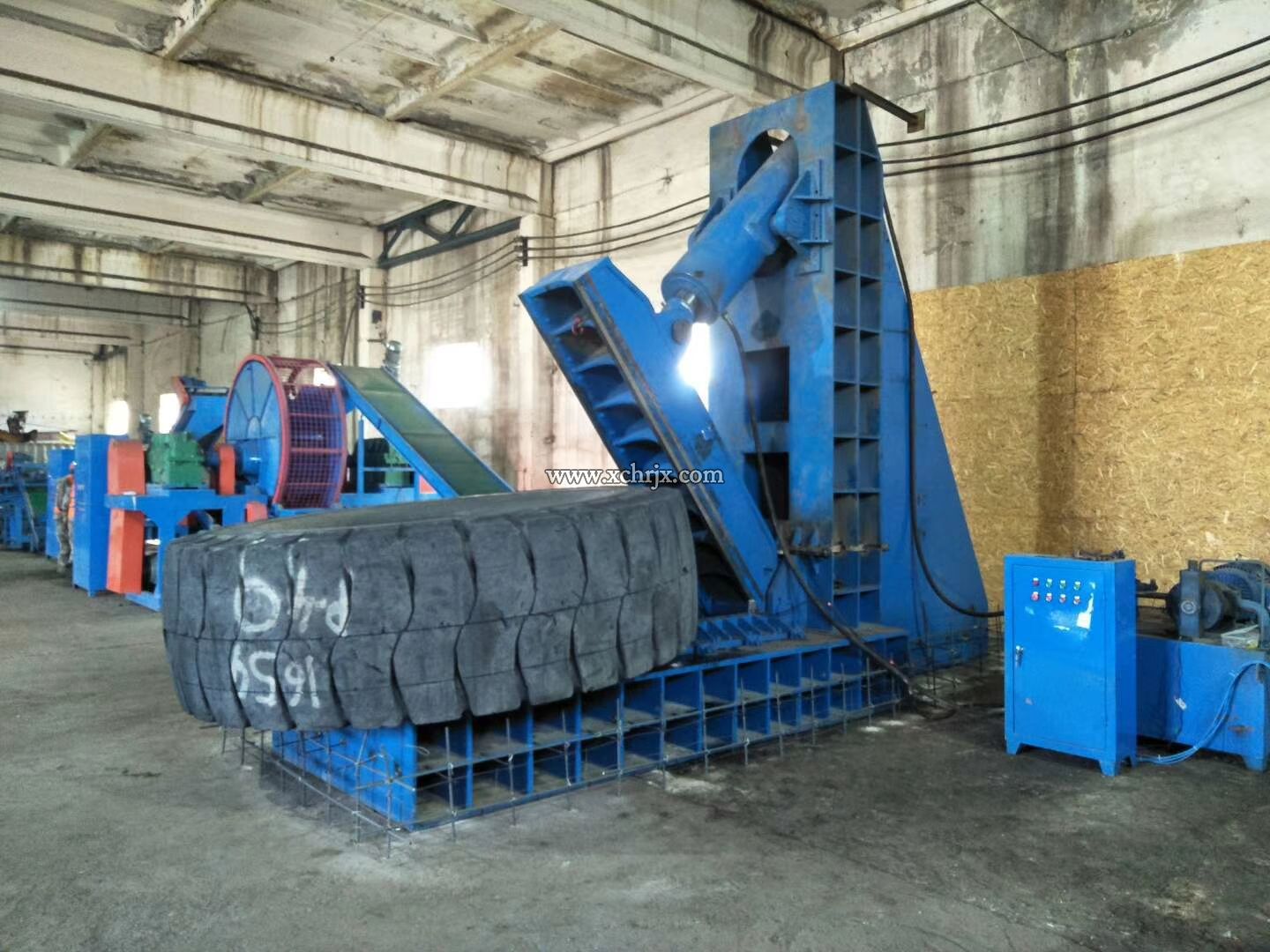

The OTR tire cutter belong to waste tire recycling machine, it is used to cut large OTR tires /giant engineering tires to smaller pieces. It can deal with all kinds of nylon tires, radial tire (<= 4000 mm diameter).
The OTR cutter is composed of motor, hydraulic system, oil cylinder, one pair of blade, frame and rotating body etc.
The basic principle is: motor drive hydraulic system and the cylinder place the tire on the blade, two blades rotating blades forming shear, achieve the effect of shear. This hydraulic oil cylinder has a very big power, so it can cut the 8-10cm steel wire which is mix within the OTR tire.
Feature:
This equipment is with good shear effect, shearing speed, low energy consumption, easy operation and safety.
Technical parameters:
Model | CJ-4000 |
Capacity | 3-5T/H |
Motor power | 18.5KW |
Adapt tire | ≤4000mm |
Hydraulic force | 300T |
Working pressure | 22-30Pa |
Material of blades | Cr12 |
Blade | 12pcs |
Lifting way | Mechanical lifting |
Dimension | 6200*1760*4590 mm |
Gross weight | 28T |
Advantages of OTR Tire Cutting Machines
1. Compatible with Giant OTR Tires, Wide Range of Applications
Designed specifically for large mining tires, engineering giant tires, and heavy-duty port tires, it can handle large-diameter, high-hardness OTR tires with steel wires, solving the problem of ordinary equipment being unable to cut them.
2. Hydraulically Driven, Strong Cutting Force, Stable Operation
Utilizing a high-tonnage hydraulic system, it boasts strong shearing force and ample power, ensuring smooth cutting without tire jamming or blade breakage. It efficiently cuts steel-wire tires and thickened tire bodies as well.
3. One-Step Cutting, High Pre-processing Efficiency
It can directly and quickly cut whole tires into blocks/strips, making it an ideal pre-processing equipment before tire crushing, pyrolysis, and rubber powder production lines, significantly improving the efficiency of the entire recycling line.
4. Wear-Resistant and Durable Blades, Low Maintenance Costs
Equipped with high-strength wear-resistant alloy blades, it has a long service life, is easy to replace, and reduces long-term use and maintenance costs.
5. Fully Automatic/Semi-Automatic Operation, Safe and Worry-Free: Simple operation process, one-button start, equipped with safety protection and emergency stop devices, reducing manual intervention and lowering operational risks.
6. Robust Structure, Adaptable to Harsh Working Conditions: Heavy-duty frame design, strong load-bearing capacity, and shock resistance, allowing for long-term stable operation in complex environments such as mines, recycling plants, and processing plants.
7. Energy-Saving and Environmentally Friendly, Meets Recycling Industry Standards: Low noise, low energy consumption, and no dust pollution, meeting the environmental requirements for the resource recycling of waste tires.
Maintenance：
You can change the hydraulic valves every 4-5 months, and add the hydraulic oil every 2months.
And the blade can be used to cutting 2000T tires, if there is wearing, it can be repaired; if damaged it was easy to change.
Cutters for smaller tires 2 meters and below
