GS-100 thread rolling machine,HRJ-3.5 Coil nail welding machine
Huarui Machinery

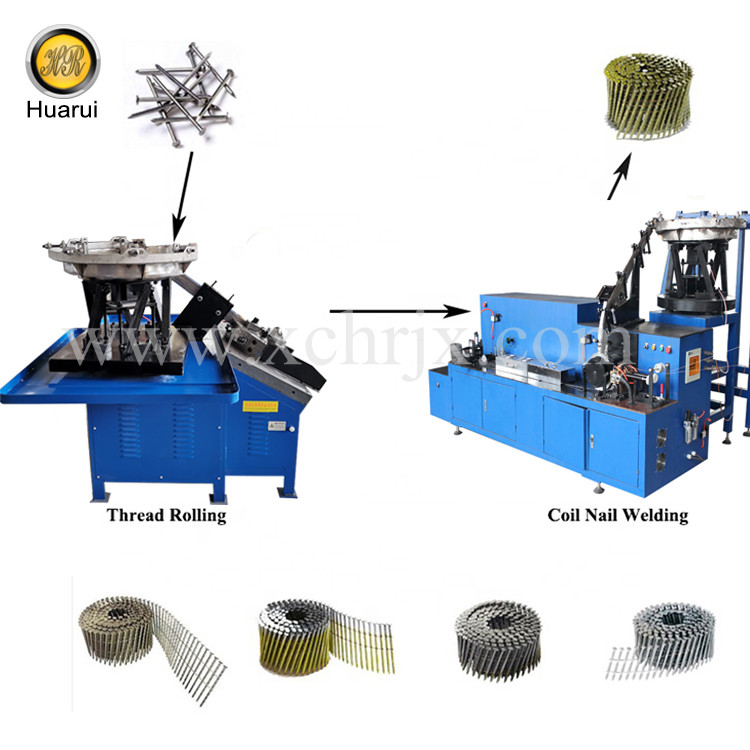

The coil nail making machine is automatic welding equipment. Put the nails to vibrating disk, the nails will get in welding wheel by feeding tracks in order, weld by two coppered wire, and then through oiled to anti-rusting automatically, drying and counting device, roll it into a dish, cutting off according to the setting quantity of per dish, finally fixed the dish by rubber ring and packing.

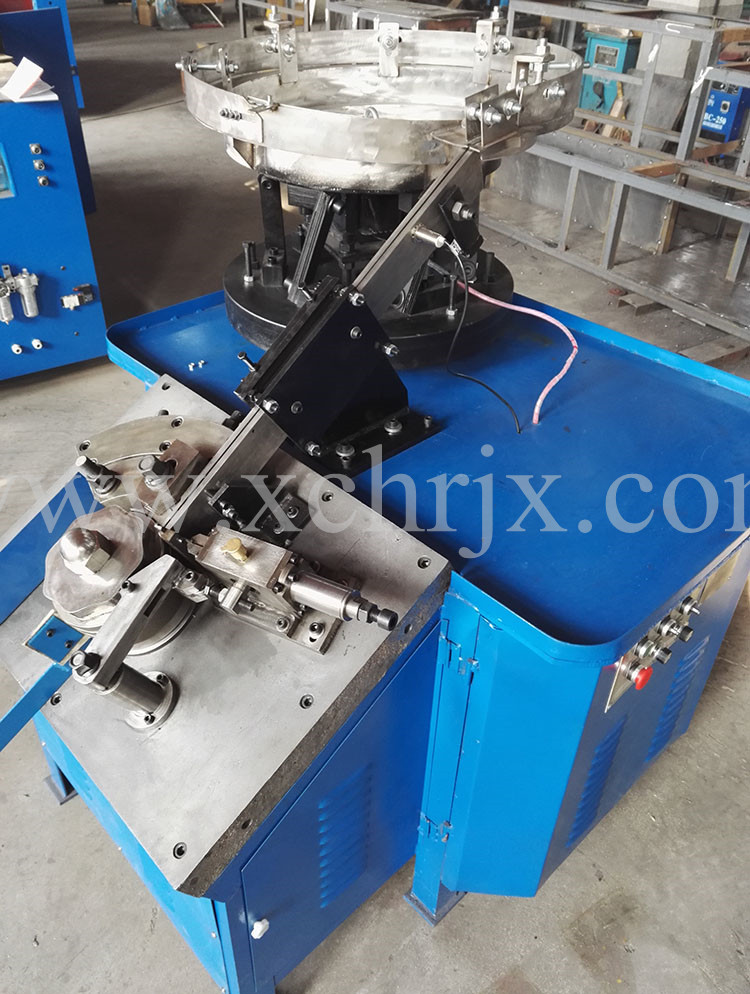

| Model | GS-100 high speed thread rolling machine |
| Diameter range | 1.8-4.2mm |
| Length range | 25-100mm |
| Capacity | 600-1000pcs/min |
| Weight | 1500kg |
| L*W*H | 1420*1400*1450mm |
| Power | 7.5kw |

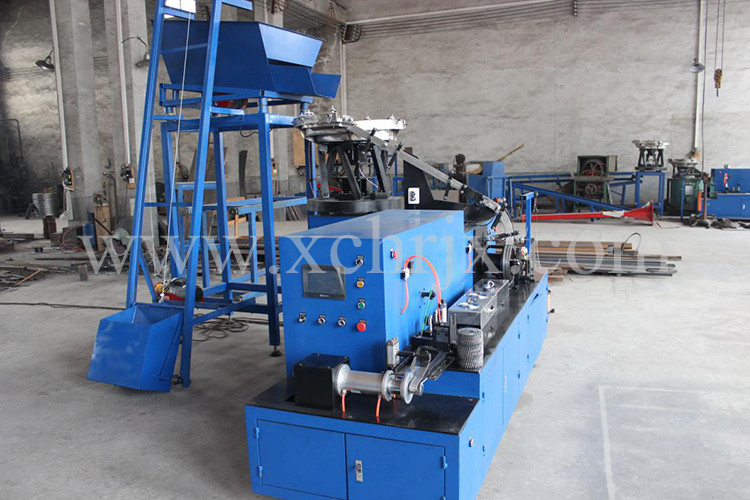

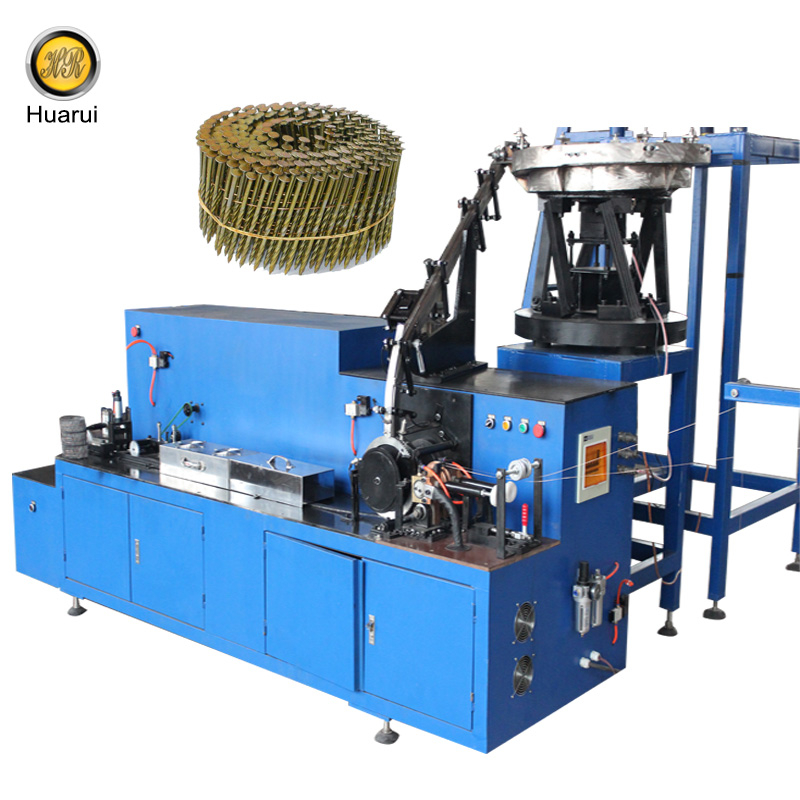

Coil Nail Welding machine
| No. | Model | HRJ-3.5 Coil nail welding machine |
| 1 | Wire Dia. | Below 4.5mm |
| 2 | Nail Length | Below 130mm |
| 3 | vibration disk power | 3kw, 380v |
| 4 | Rated Power | 15kw |
| 5 | Coil nail specification | Angle:15°/16° Quantity per roll:120~1200pcs/roll Welding wire for coil nails: 0.6mm,0.7mm,0.8mm |
| 6 | Working area | 2700*850 |
| 7 | Production speed | 1000-2800pcs/minute |
| 8 | Dimension | 2900*1500*1800mm |
| 9 | Weight | 1500kgs |
Spare Parts:
Finished products:
CE Certificate
