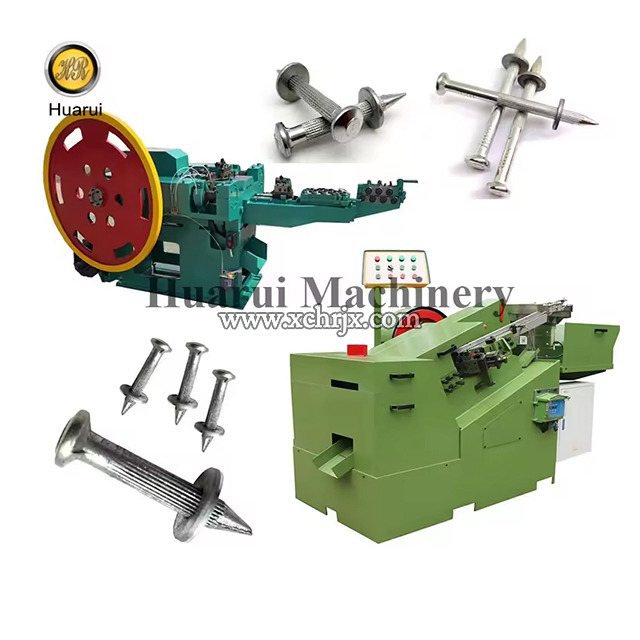

Product Introduction of Shooting Nail Forming Machine
The Shooting Nail Making Machine is a fully automatic, high-speed industrial equipment dedicated to producing concrete shooting nails (drive pins) and steel nails with washers, widely used in construction, hardware manufacturing, and fastening industries. It integrates wire feeding, forming, heading, pointing, and post-processing, delivering stable, efficient, and high-quality nail production.
Product Overview of shoot nail making machine
Product Name: Automatic Shooting Nail Making Machine (Concrete Nail Making Machine / Drive Pin Making Machine)
Main Application: Manufacture concrete shooting nails, steel drive pins, and nails with integrated washers for construction fastening.
Working Principle: Adopts a plunger-type structure for low noise, low impact, and high-speed continuous production.
Service Life: Over 20 years for the mainframe; core components with a 2-year warranty.
Advantages of Drive Pin nail making machine
1. High Production Efficiency
2. High Precision & Stable Nail Quality
Produces shooting nails with uniform size, standard head shape, and sharp nail point.
Low rejection rate, reducing material waste and production cost.
3. Strong Versatility & Wide Application
Can produce various specifications of shooting nails, concrete nails, steel nails, and special nails.
Quick and convenient adjustment for different nail lengths and diameters.
4. Sturdy & Durable Structure
Main body made of high-strength castings and thick steel plate, with good rigidity and low vibration.
5. Easy Operation & Low Maintenance
Reasonable structure design for convenient daily maintenance and part replacement.
Low failure rate, reducing downtime and improving overall efficiency.
6. Energy Saving & Low Noise
7. High Cost Performance
Reasonable price with stable and reliable performance.
Long service life, low wearing parts consumption, low long-term operating cost.Helps customers quickly recover investment and gain higher profits.

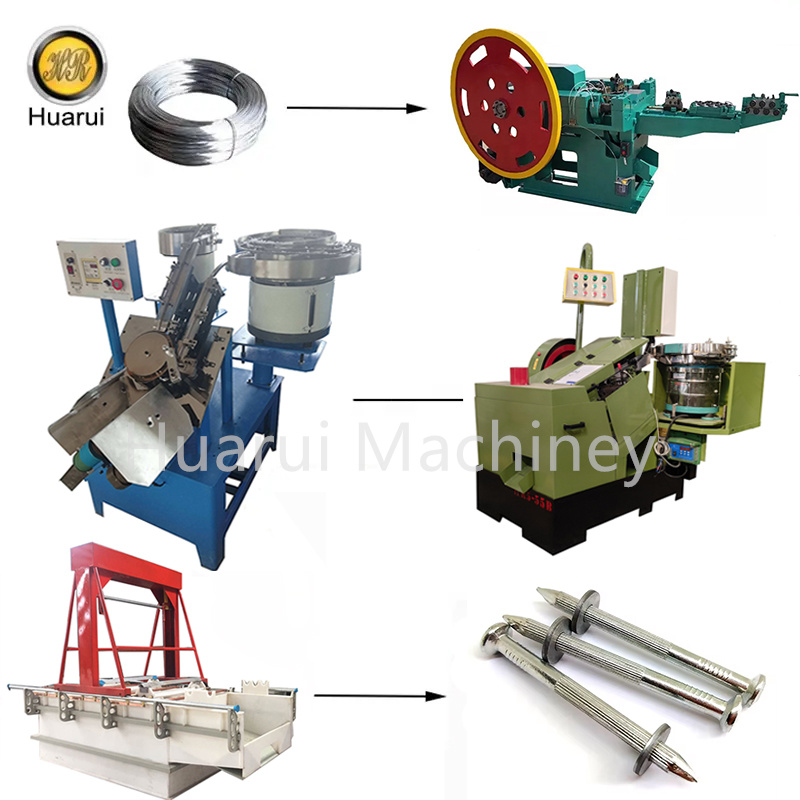

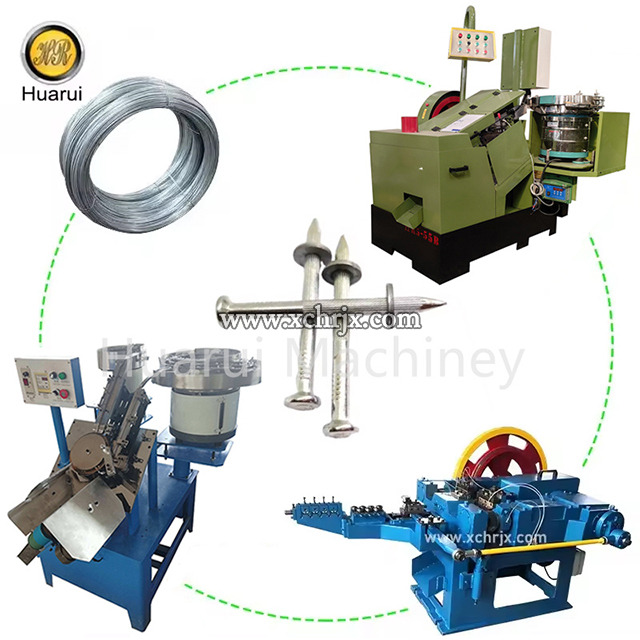

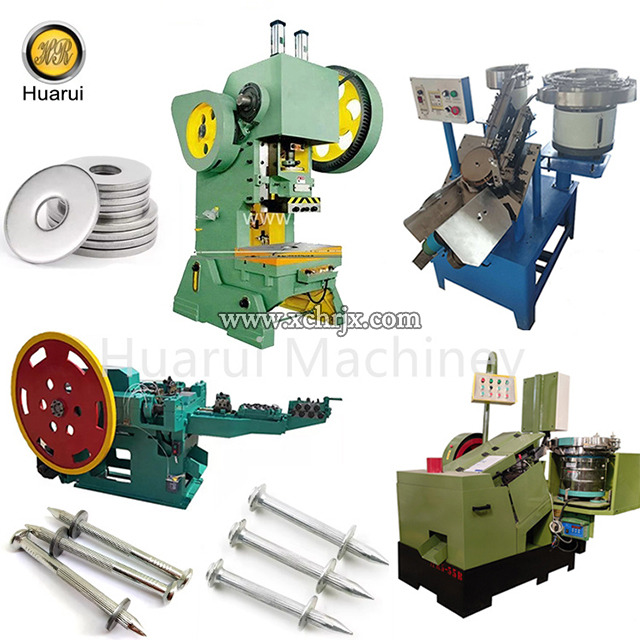

Shooting pin nail making line workflow
Wire rod---Nail making machine--Washer making machine---Nail/Washer polishing---Threaded by Thread rolling machine---Nails galvanizing by Galvanizing Equipment---Nail&washer Strip Assembly Machine--Finished NK Shooting nails.

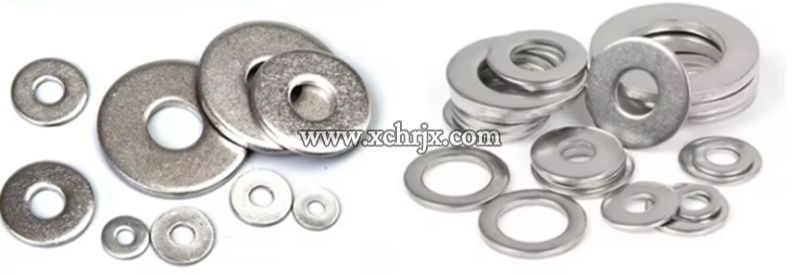

1. Washer Making Machine, Washer punching machine

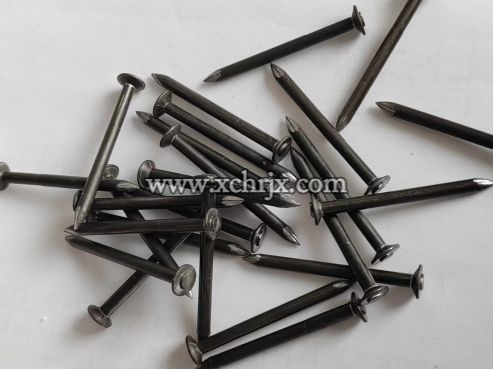

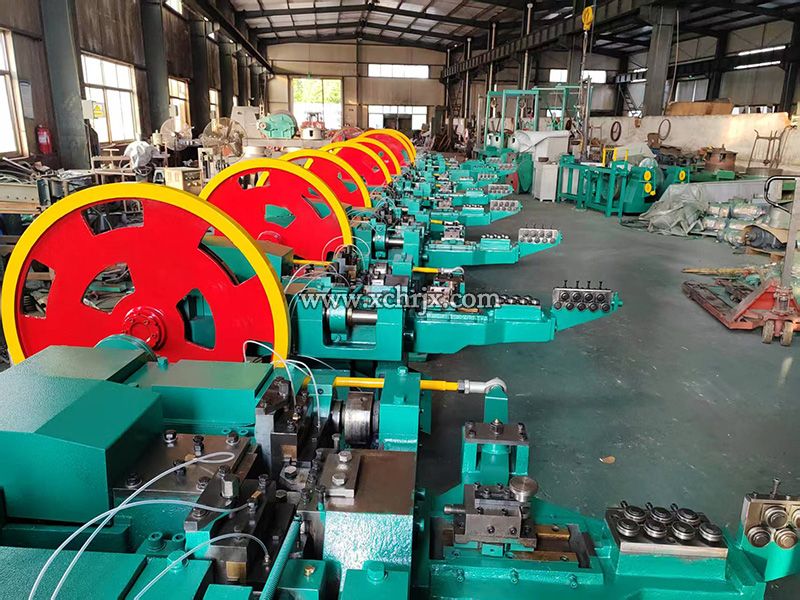

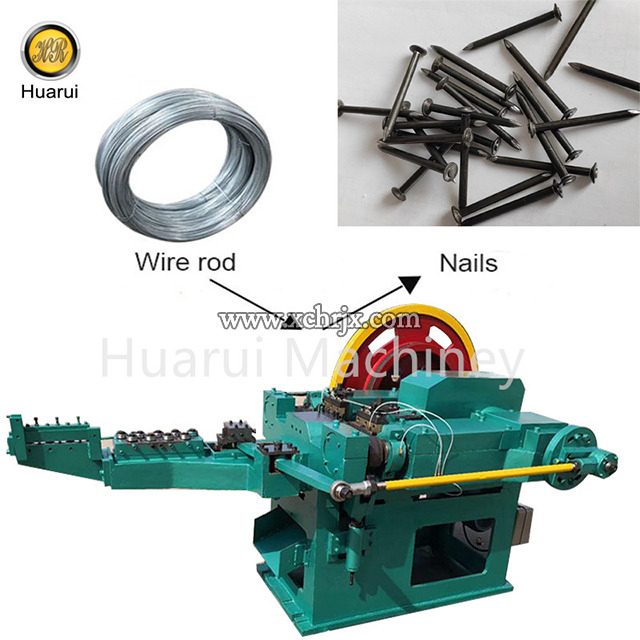

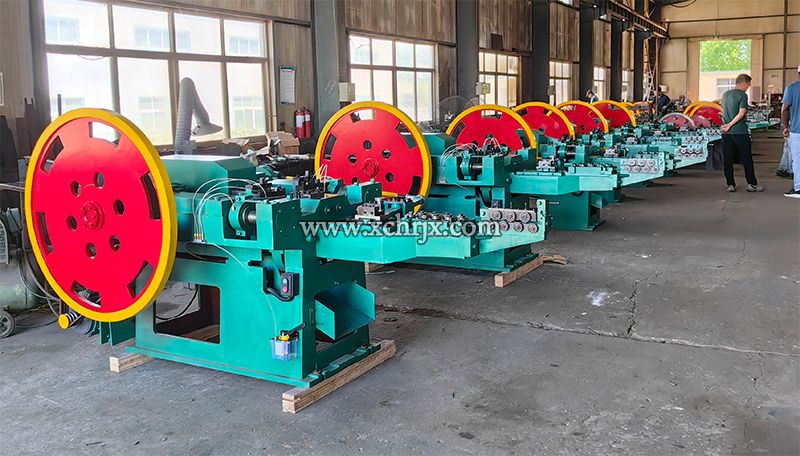

2.High speed low noise Automatic nail making machine
Technical Parameters of nail cutting machine
Model | Diameter of nails | Length of nails | Designed speed | Motor | Dimension | Weight |
Z94-3C | 1.8-3.5mm | 30-75mm | 320pcs/min | 3kw | 2.0*1.4*1.4m | 1.35tons |
Z94-4C | 2.8-4.5mm | 50-100mm | 260pcs/min | 4kw | 2.2*1.6*1.6m | 1.8tons |
Z94-4C(2) | 2.8-5mm | 50-120mm | 260pcs/min | 4kw | 2.3*1.6*1.3m | 2.0tons |
Z94-5.5C | 3.8-5.5mm | 75-150mm | 220pcs/min | 5.5kw | 2.5*1.8*1.5m | 2.2tons |

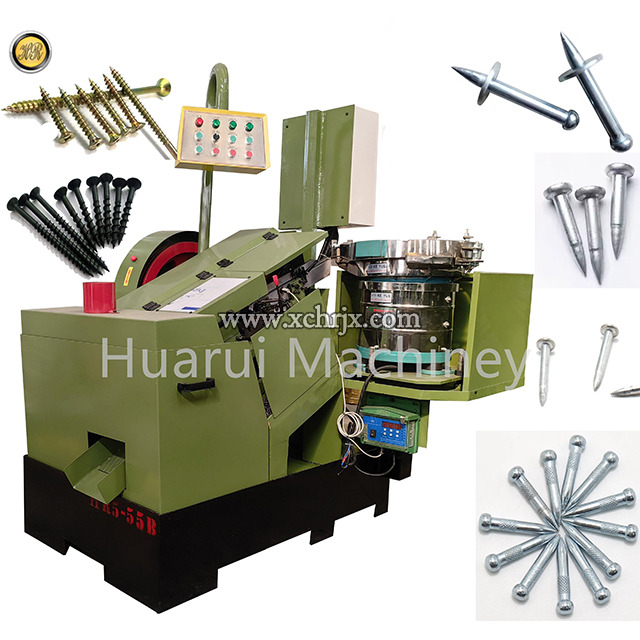

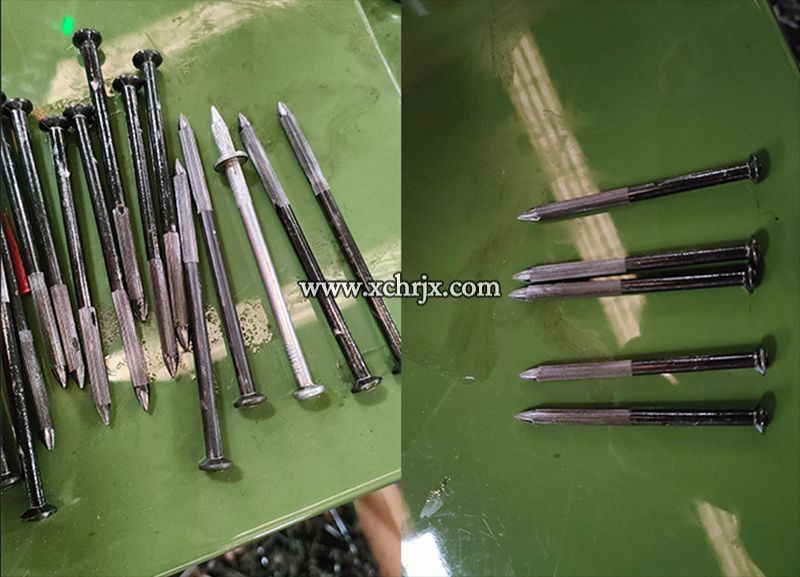

Nail Thread Rolling machine, Nail threading machine

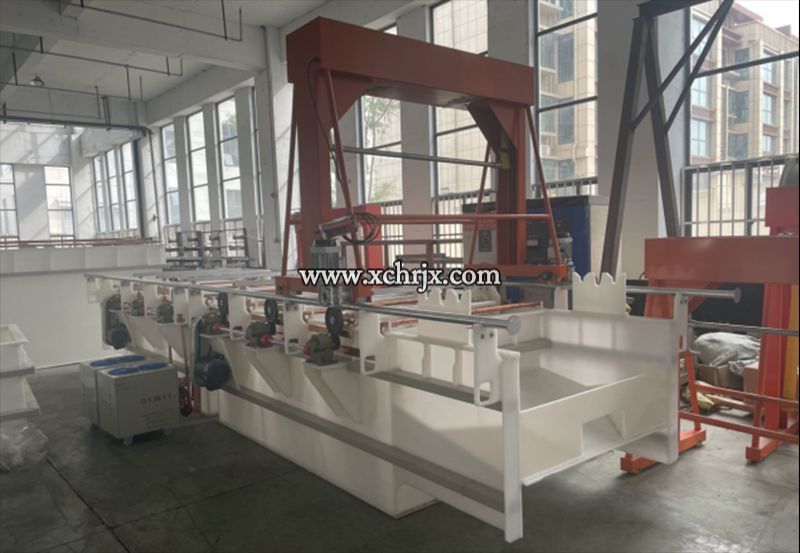

Electric galvanizing equipment
Function: for galvanizing all kinds of nails or screws to make the nails or screws more bright and anti-rust.Electric galvanizing (electrolytic zinc plating) uses an electrolytic cell to deposit a uniform zinc layer on steel/iron surfaces for corrosion protection, with strict control over thickness and finish.

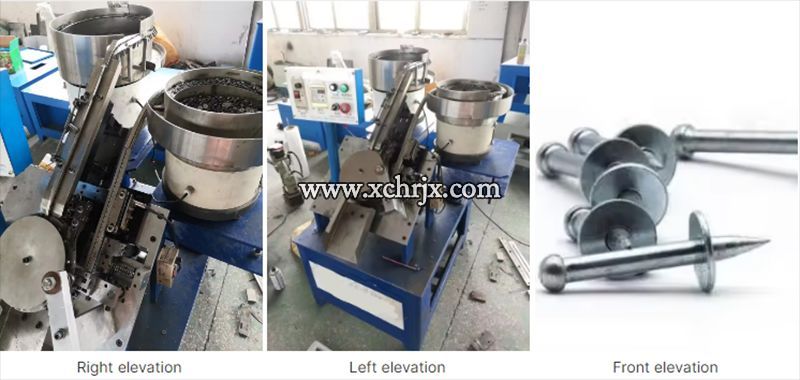

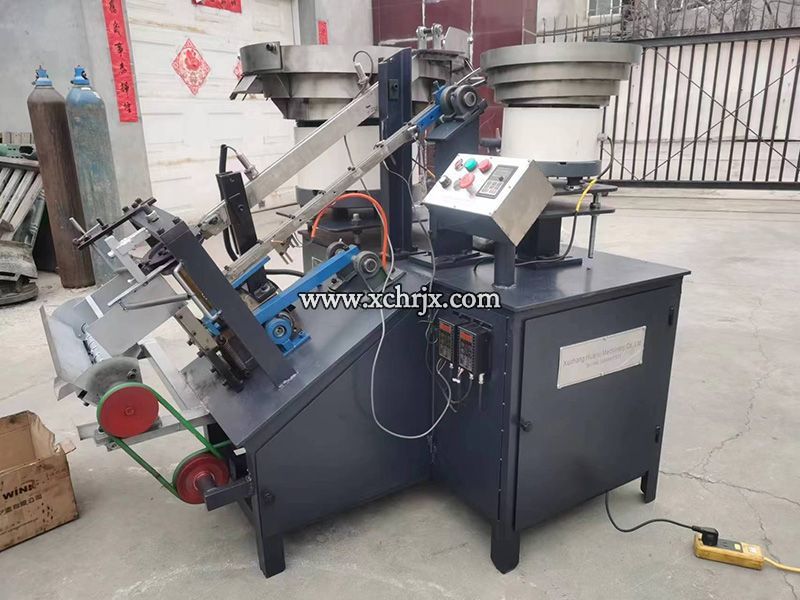

Nail assembly machine, Nail washer assembly machine
The Nail Assembly Machine is a high-speed automatic mechanical equipment specially used for the production, forming, and assembly of various finished nails. It is mainly matched with nail making machines to realize automatic feeding, shaping, sorting, and packaging preparation of steel nails, concrete nails,roofing nails, and other types of fasteners.
What we can do for you?
1.Pre-sale service:
1).Instruction-----Special analysis of our equipment for customers' understanding.
2).Welcome to visit our factory, and discuss with our professional technician.
3).Customized---According to customer's production request,making the production solution professionally.
2.On-sale service:
1). Welcome to inspect your goods before loading or we send you the photos.
2). Product quality is guaranteed, all inspection agency documents is satisfied if necessary.
3). Inspection before loading is offered if you need .
4). Documents for customs clearance is supplied.
3.After-sale service:
1).24 hours technical support online.
2). engineers are available to your factory to install and operate machines.
