Product Introduction of Cement Nail Making Machines
Cement Nail Making Machine (also known as Concrete Nail Making Machine) is a specialized, high-efficiency automatic mechanical equipment designed for mass production of cement nails (concrete nails). It processes carbon steel wire rods into high-hardness cement nails through a series of precise forming processes, which are widely used in construction, decoration, and hardware manufacturing industries.
Our main products include: Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Nail Rolling Machine and High-speed Coil Nail Machine. pneumatic nail making machine,paper taped round head strip nail collator and so on.

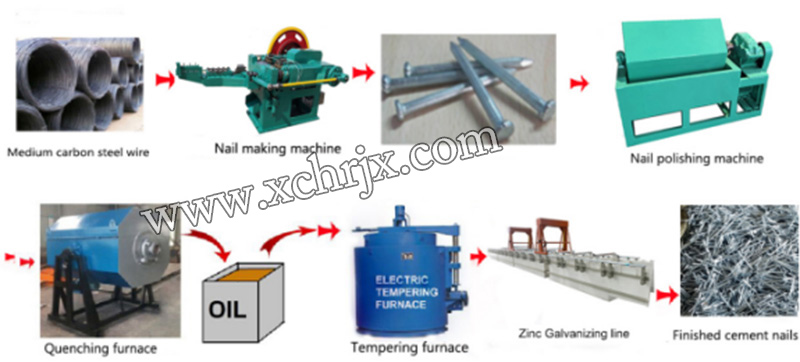

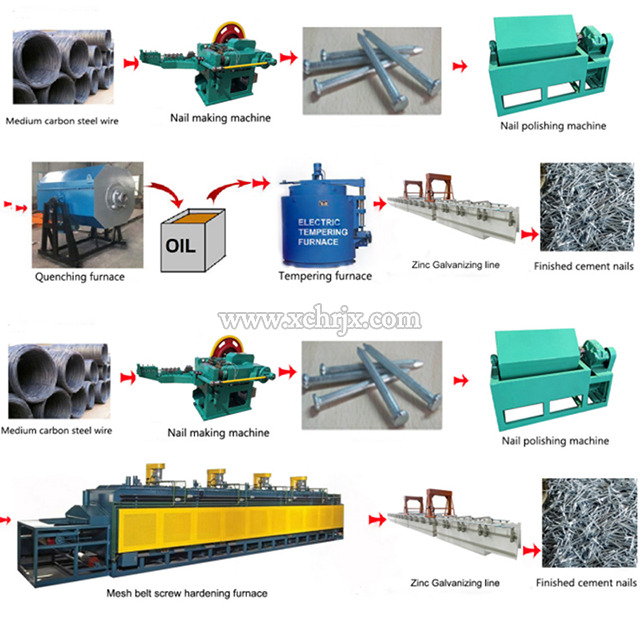

Cement nail production line workflow
Wire material--Nail making machine --nail polishing machine --nail hardening furnace --nail tempering furnace --nail zinc galvanizing equipment --Finished cement nails .

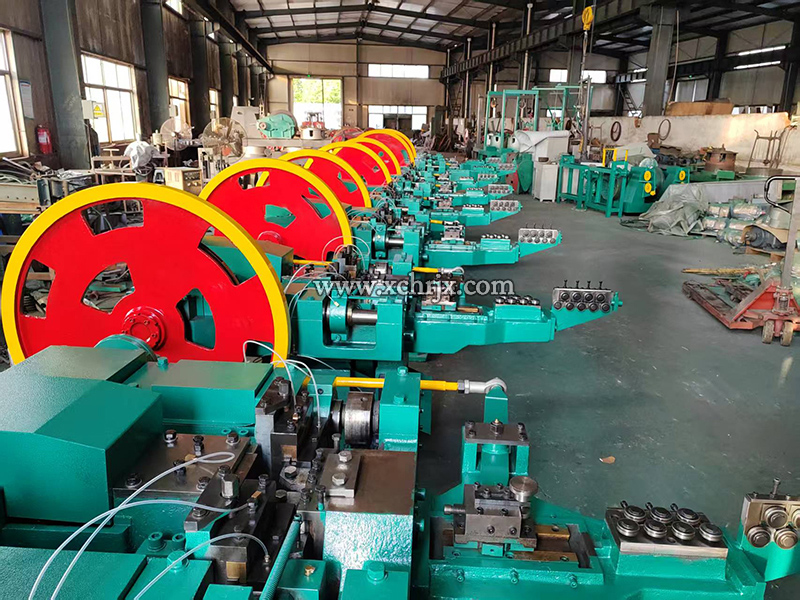

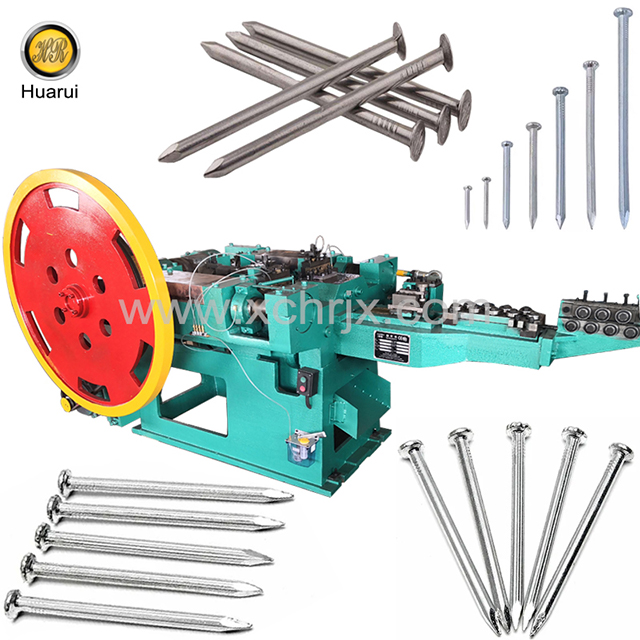

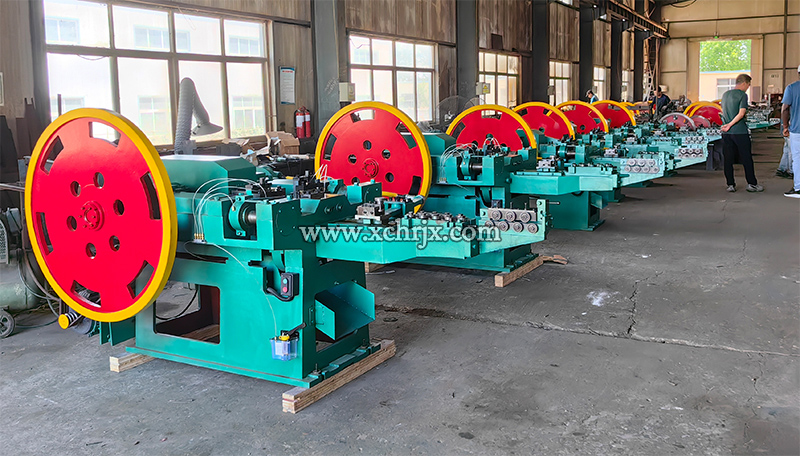

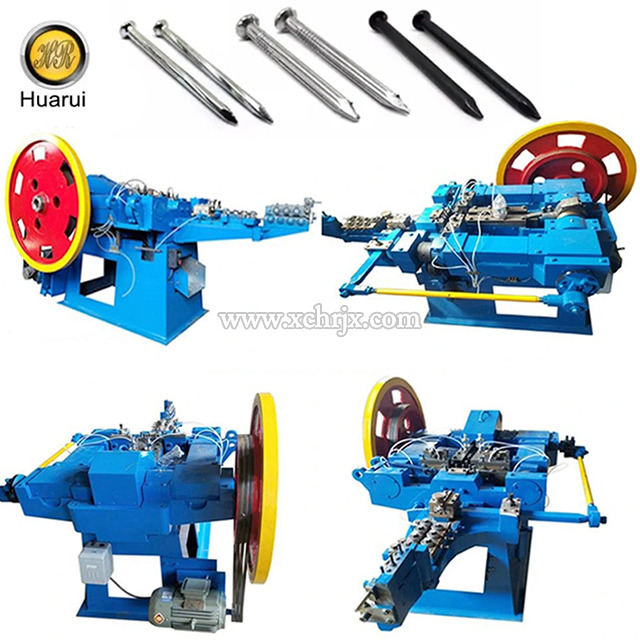

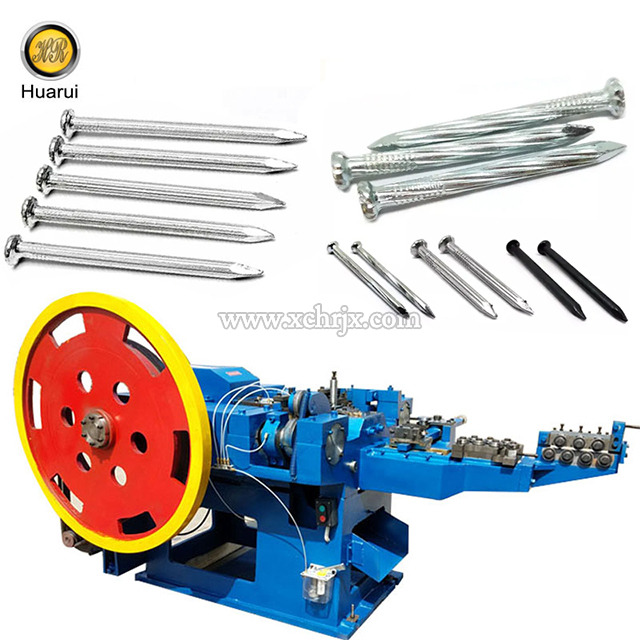

1. Automatic nail making machine
Function: This machine adopts piston structure to ensure the high working speed,low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.
Cement Nail Machine Features
1. High Efficiency & High Output
Adopts plunger-type structure for high-speed operation, with production speed reaching 180-450 pieces per minute.
One-time automatic forming of nail head and point, with a finished product pass rate of up to 99.99%.
2.Stable & Durable Structure
Machine body made of vacuum-cast steel or high-strength cast iron, with excellent rigidity, vibration resistance, and no deformation under high/low temperatures.
High-strength alloy cutters and molds, greatly extending service life and reducing tool loss.
3.Simple operation: one worker can operate 3-5 sets of machines, significantly reducing labor costs.
4.Wide Applicability
Can produce various specifications of cement nails, as well as common steel nails etc., by changing molds.
5.Low Noise & Energy Saving
Optimized mechanical design reduces noise during operation; equipped with a reliable lubrication system to minimize wear and energy consumption.
6.Cost-effective: Low energy consumption, low maintenance cost, and high return on investment.
Model No. | Nail diameter | Nail length | Motor power | Working speed | Overall dimension | weight |
Z94-1C | 0.9-1.6mm | 9-25mm | 1.5kw | 450pcs/min | 1.5*1.3*1.2m | 0.8ton |
Z94-2C | 1.2-2.8mm | 16-50mm | 2.2kw | 380pcs/min | 1.7*1.3*1.4m | 1.15ton |
Z94-3C | 1.6-3.5mm | 25-75mm | 3.0kw | 320pcs/min | 2.0*1.4*1.4m | 1.35ton |
Z94-4C | 2.8-4.5mm | 30-100mm | 4.0kw | 260pcs/min | 2.2*1.6*1.65m | 1.8ton |
Z94-4C(2) | 2.8-5.0mm | 50-120mm | 4.0kw | 260pcs/min | 2.32*1.55*1.3m | 2.1ton |
Z94-5.5C | 3.5-5.5mm | 75-150mm | 5.5kw | 220pcs/min | 2.5*1.6*1.5m | 2.15ton |
Z94-5C(2) | 3.0-6.5mm | 80-220mm | 5.5kw | 130pcs/min | 3.1*1.7*1.65m | 2.7ton |
Z94-6C | 3.0-8.0mm | 80-220mm | 7.5kw | 130pcs/min | 3.1*1.7*1.65m | 4.5ton |

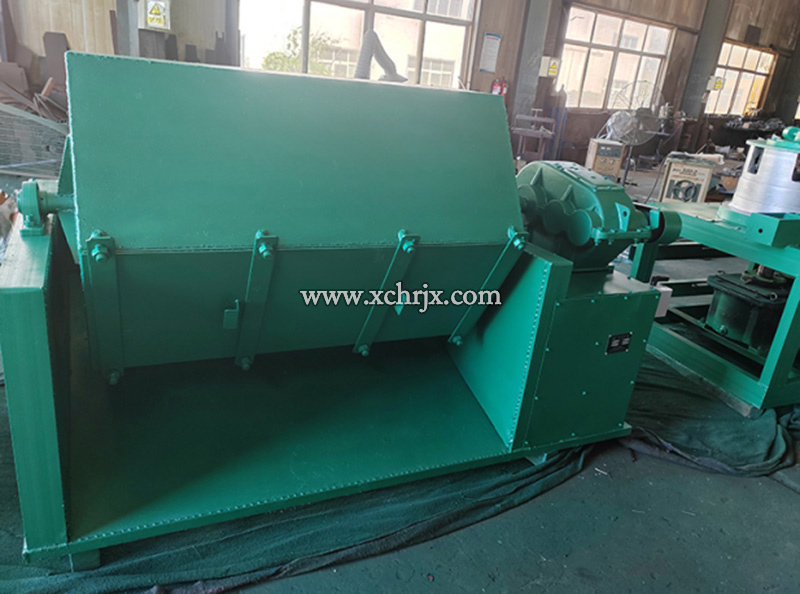

2. Nail polishing machine
Function: This machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.
Title | Motor power | Overall size | Capacity of nails | Weight of machine |
SD-400 Nail polishing machine | 2.2kw | 1.64*0.9*1.0m | 400kg | 380kg |
SD-600 Nail polishing machine | 3.0kw | 1.7*1.2*1.3m | 600kg | 580kg |
SD-1000 Nail polishing machine | 5.5kw | 1.8*1.55*1.5m | 1000kg | 750kg |
3. Automatic cutter grinding machine
Function: This is the auxiliary equipment of nail making machine, when the nail cutter of the nail making machine is not so sharp, the user can use this machine to sharpen it.
Title | Diameter of grinding wheel | Motor power | output | Overall size | Weight |
ZM6-6 Automatic cutter grinder | 200mm | 0.75kw | 2900r/min | 0.8*0.5 *1.0m | 210kg |

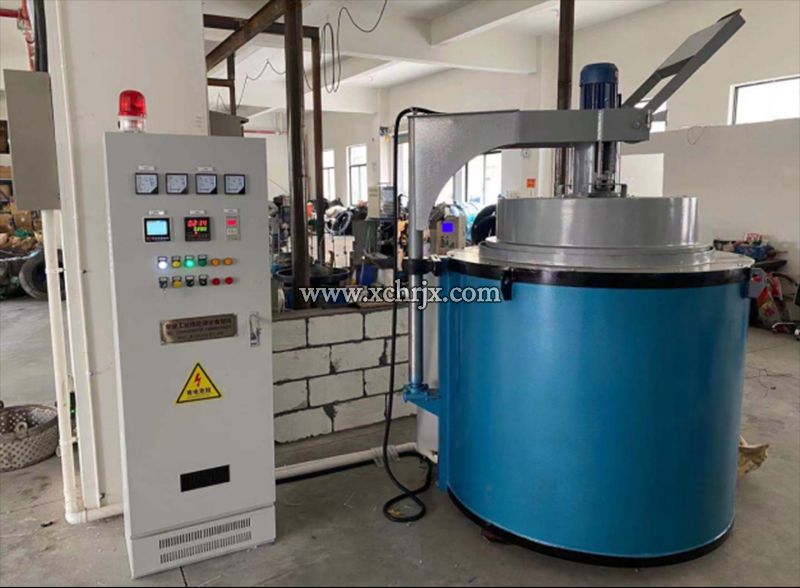

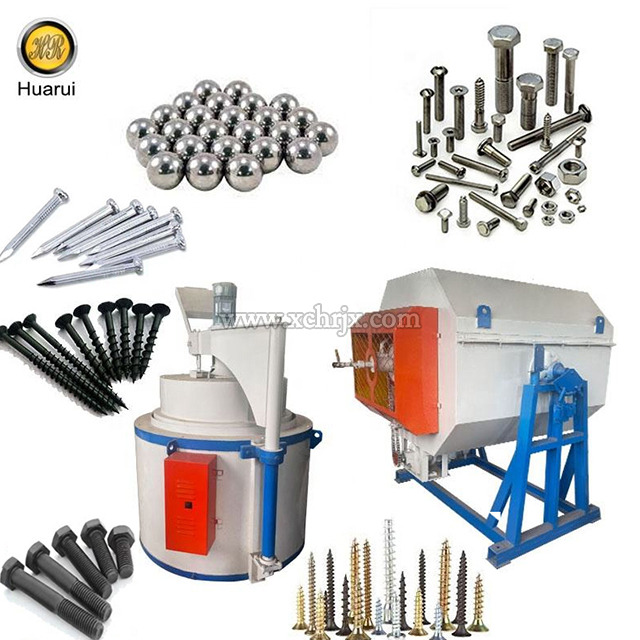

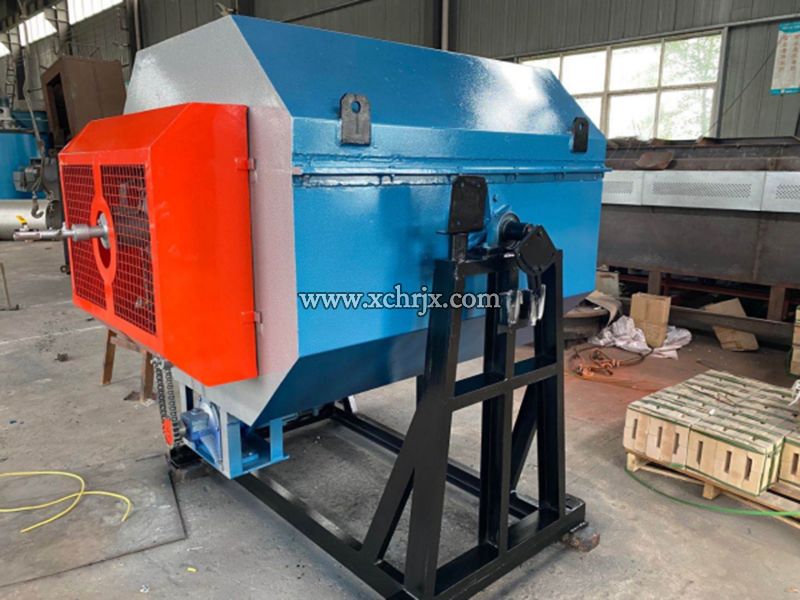

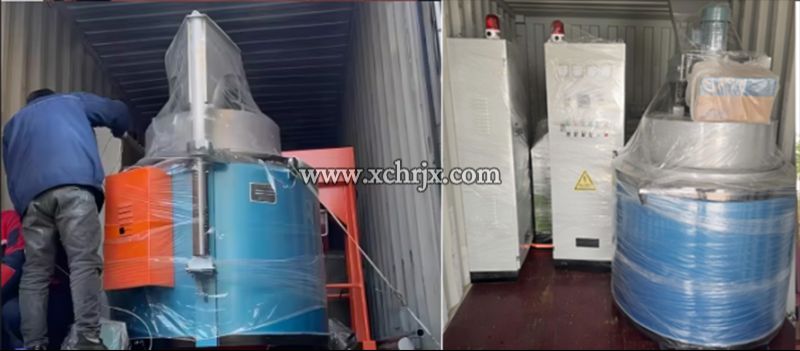

4. Screw Nail Hardening Furnace ,Heat treatment furnace ,Screw nail Tempering Furnace
Function：
The furnace is mainly used for quenching, tempering, annealing, and other heat treatment of bicycle parts, sewing machine parts, standard parts, steel ball bearings, rollers, nails, screws and other small parts.
The furnace has the characteristics such as: good uniformity of furnace temperature, simple operation, simple maintenance, low energy consumption and energy saving.

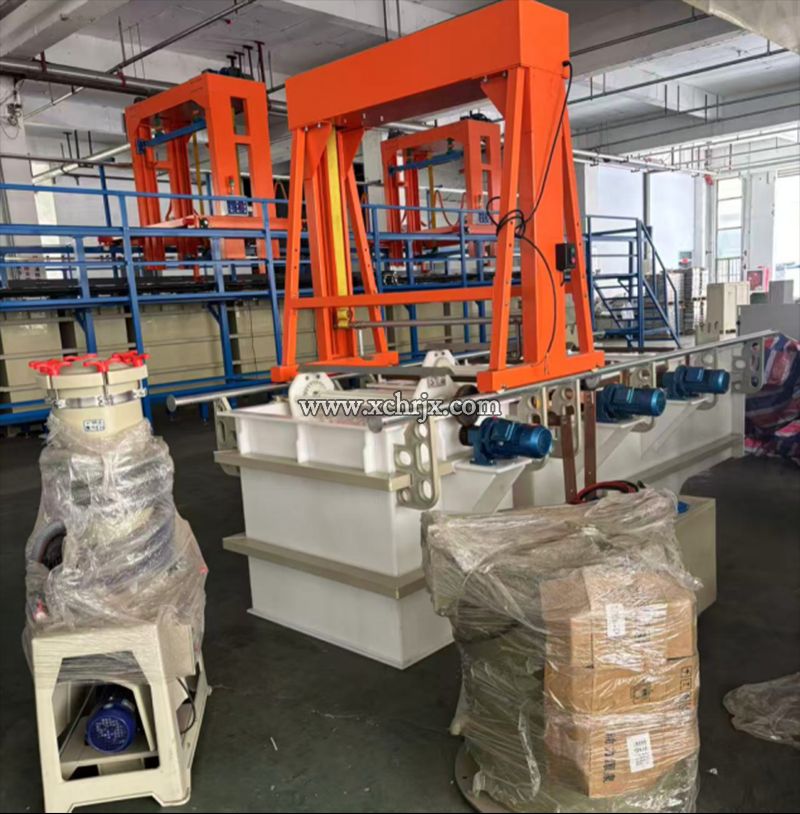

5.Electric galvanizing equipment,Nail galvanizing line
Function: for galvanizing all kinds of nails or screws to make the nails or screws more bright and anti-rust.Electric galvanizing (electrolytic zinc plating) uses an electrolytic cell to deposit a uniform zinc layer on steel/iron surfaces for corrosion protection, with strict control over thickness and finish.

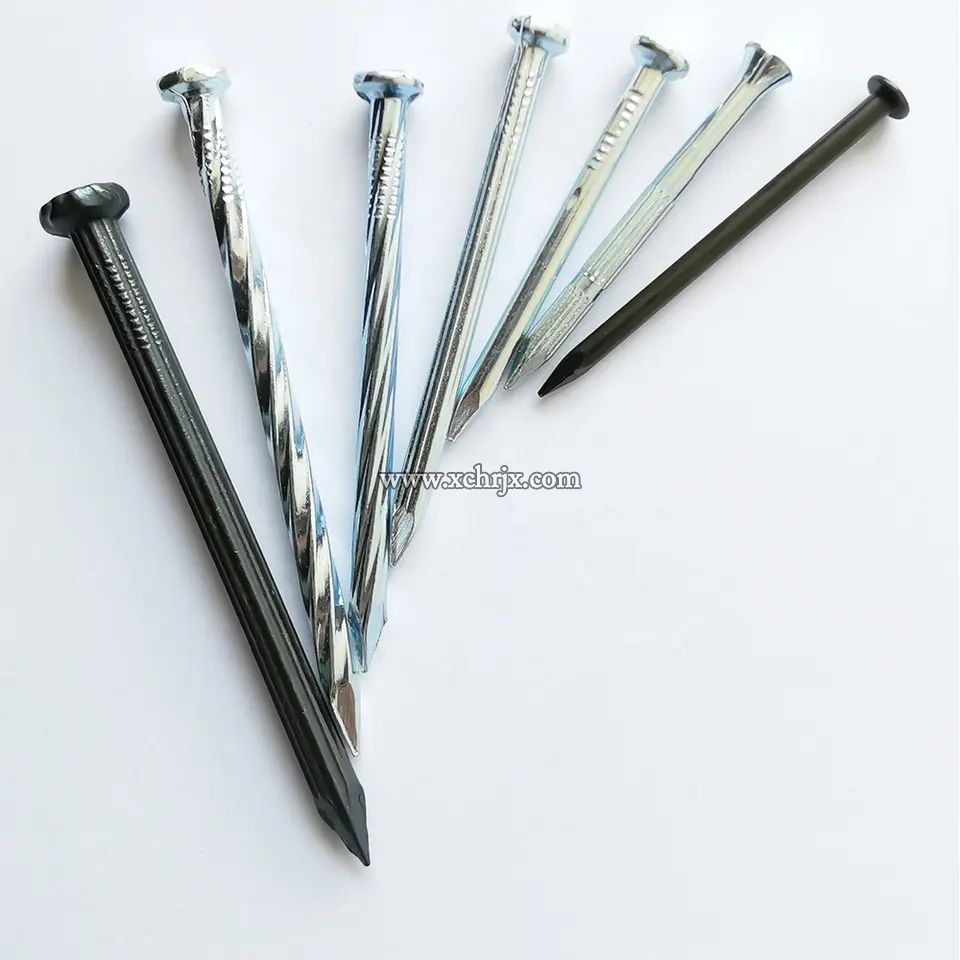

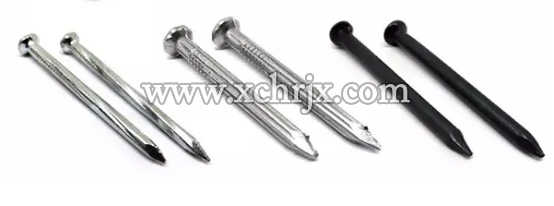

Application of Cement nails
Construction sites: for fixing form work, installing electrical boxes, and fastening wooden structures to concrete.
Hardware factories: mass production of cement nails for wholesale and retail.
Decoration companies: for installing ceiling keels, wall panels, and other decoration works.
What we can do for you?
1.Pre-sale service:
1).Instruction-----Special analysis of our equipment for customers' understanding.
2).Welcome to visit our factory, and discuss with our professional technician.
3).Customized---According to customer's production request,making the production solution professionally.
2.On-sale service:
1). Welcome to inspect your goods before loading or we send you the photos.
2). Product quality is guaranteed, all inspection agency documents is satisfied if necessary.
3). Inspection before loading is offered if you need .
4). Documents for customs clearance is supplied.
3.After-sale service:
1).24 hours technical support online.
2). engineers are available to your factory to install and operate machines.
