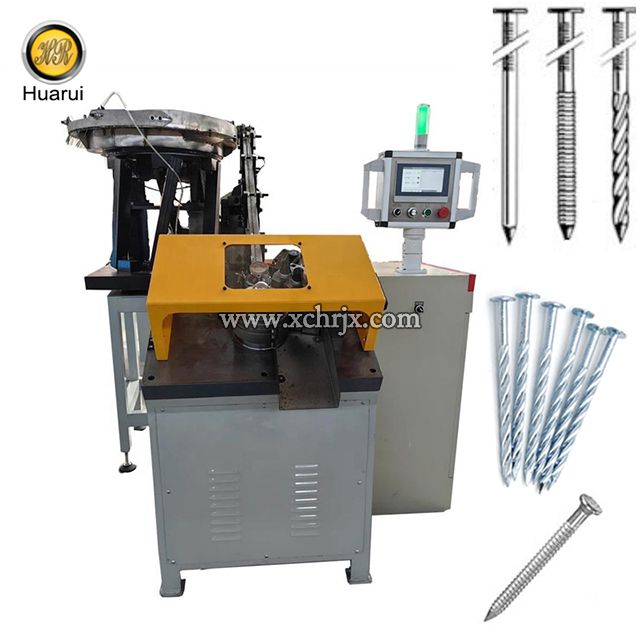

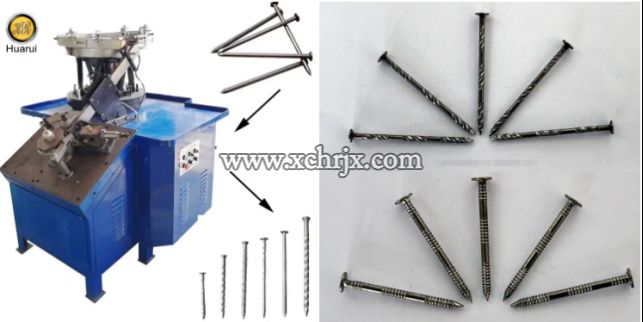

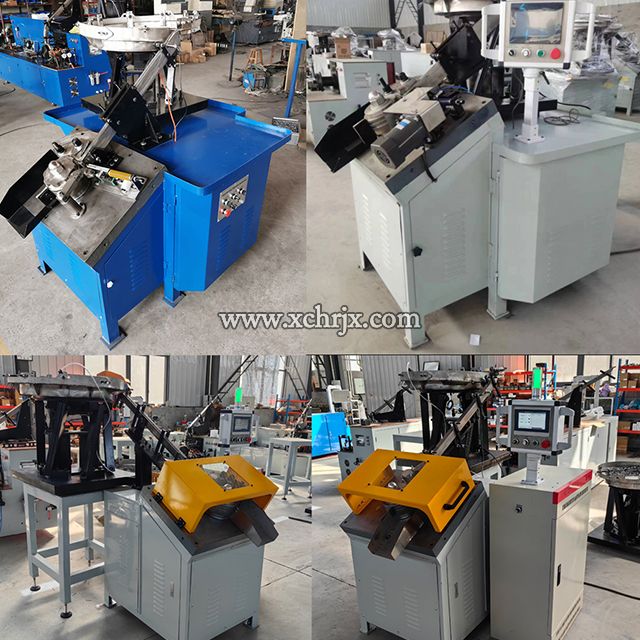

Introduction of Nail Thread Rolling Machine
The Nail Threading Machine is a specialized cold forming equipment that creates screw shank, ring shank, or spiral shank patterns on nail bodies via plastic deformation—no cutting, no material loss, and far stronger threads. It is the core machine for making high-performance, anti-pullout nails used in construction, packaging, furniture, and coil nail production.
Advantages of Screw nail Threading Machine
1.Higher strength:Cold working improves fatigue and torsional strength by 20–30%.
2.No material waste :100% material utilization
3.Higher efficiency: Up to 3000 nails/min
4.Smoother surface: No burrs; better corrosion resistance after plating.
5.Longer die life:Alloy dies produce millions of nails before replacement.

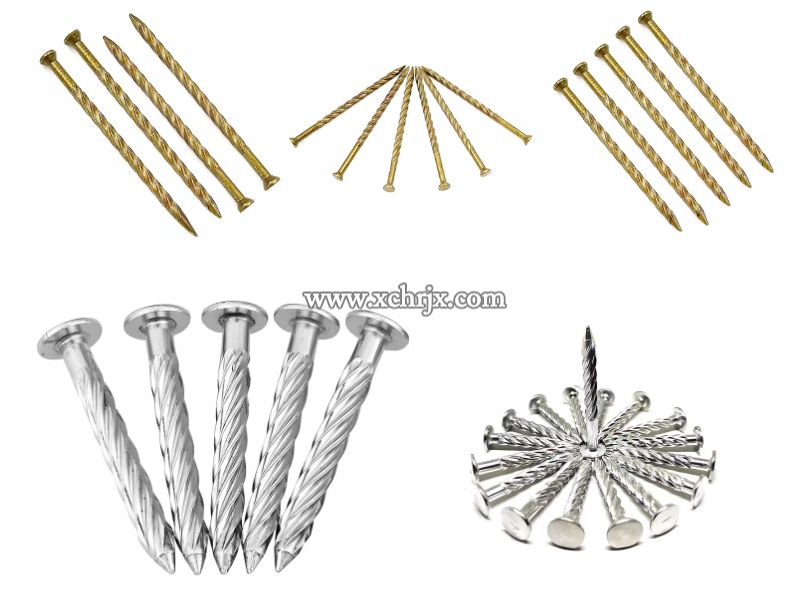

Ring shank nail making machine , screw shank nail making machine

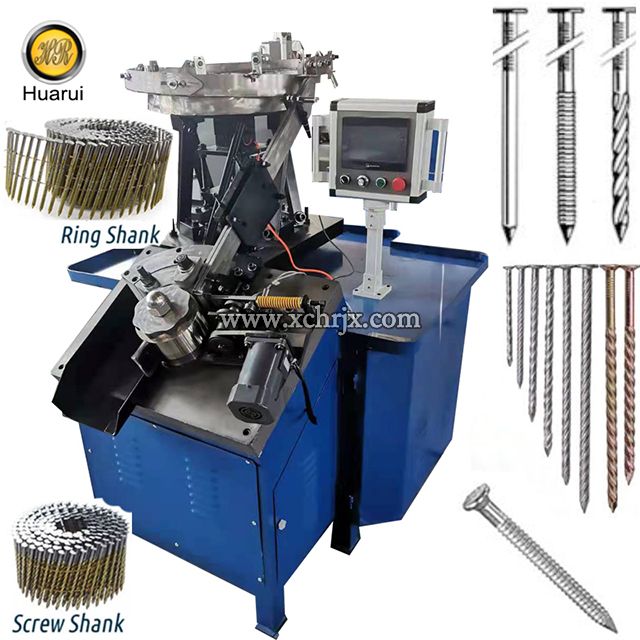

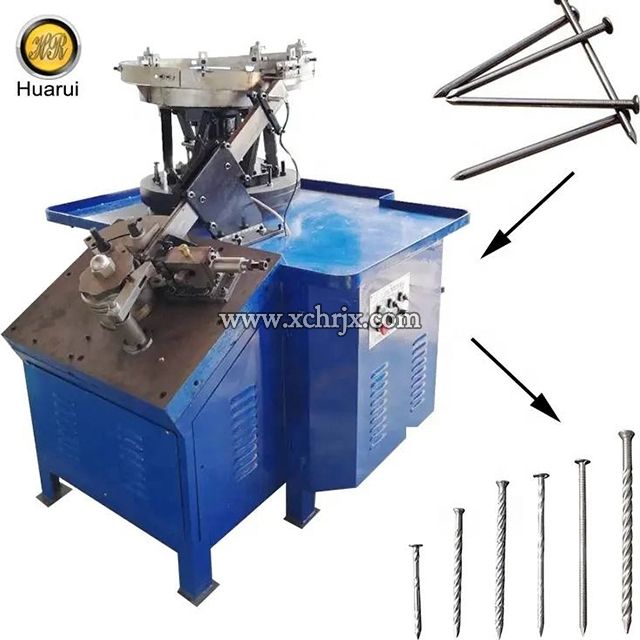

Main Structure of nail threading machines
1. Vibratory Feeding System
Vibratory bowl feeder: Automatically sorts and feeds polished nails into the track.
Nail guide rail: Aligns nails head-first into the rolling station.
Sensor control: Stops the machine if no nails are present to prevent idle wear.
2. Rolling Forming System (Heart)
Thread rolling dies: High-speed steel or alloy, precision-ground for screw/ring/spiral profiles.
Die holder & adjustment: Sets die gap, pressure, and pitch; easy to change dies for different nail types.

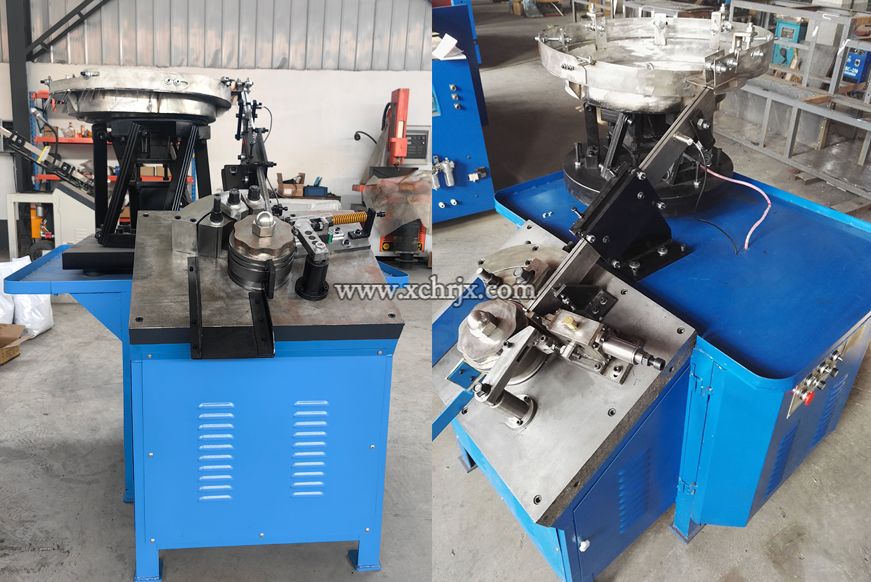

Type 1: Screw Ring Nail threading machine speed is max. 1000pcs/min
Model | High speed thread rolling machine |
Diameter range | 1.8-4.0mm |
Length range | 25-100mm |
Thread length range | ≦80mm |
Capacity | 0-1000pcs/min |
Weight | 1250kg |
L*W*H | 1420*1400*1450mm |
Power | 7.5kw |

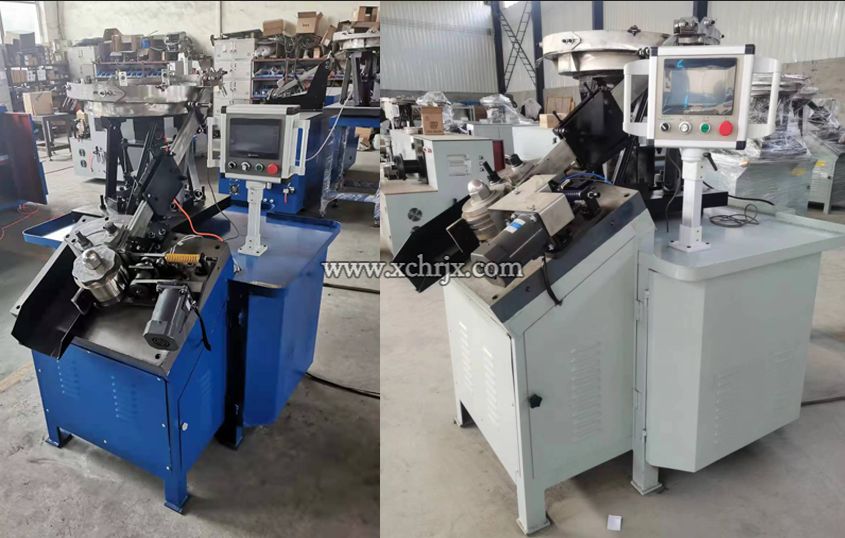

Type 2: Nail thread rolling machine , speed is max. 1800pcs/min
Model | High speed twist nail making machine |
Diameter range | 1.8-3.6mm |
Length range | 25-100mm |
Thread length range | ≦80mm |
Capacity | 0-1800pcs/min |
Weight | 1400kg |
L*W*H | 1420*1400*1450mm |
Power | 7kw |

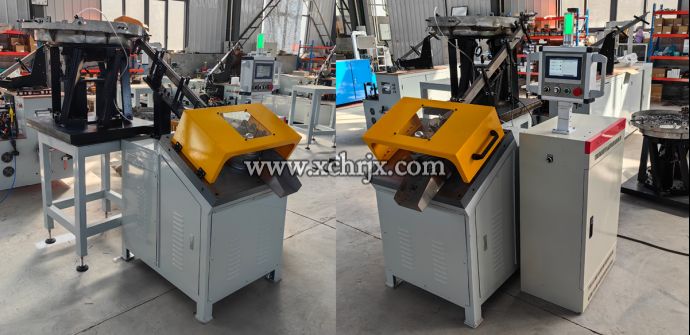

Type 3: High speed nail thread rolling machine :speed is max. 3000pcs/min
Model | High speed screw ring nail threading machine |
Diameter range | 1.8-3.6mm |
Length range | 25-100mm |
Thread length range | ≦80mm |
Capacity | 0-3000pcs/min |
Weight | 1400kg |
L*W*H | 1420*1400*1450mm |
Power | 6kw |

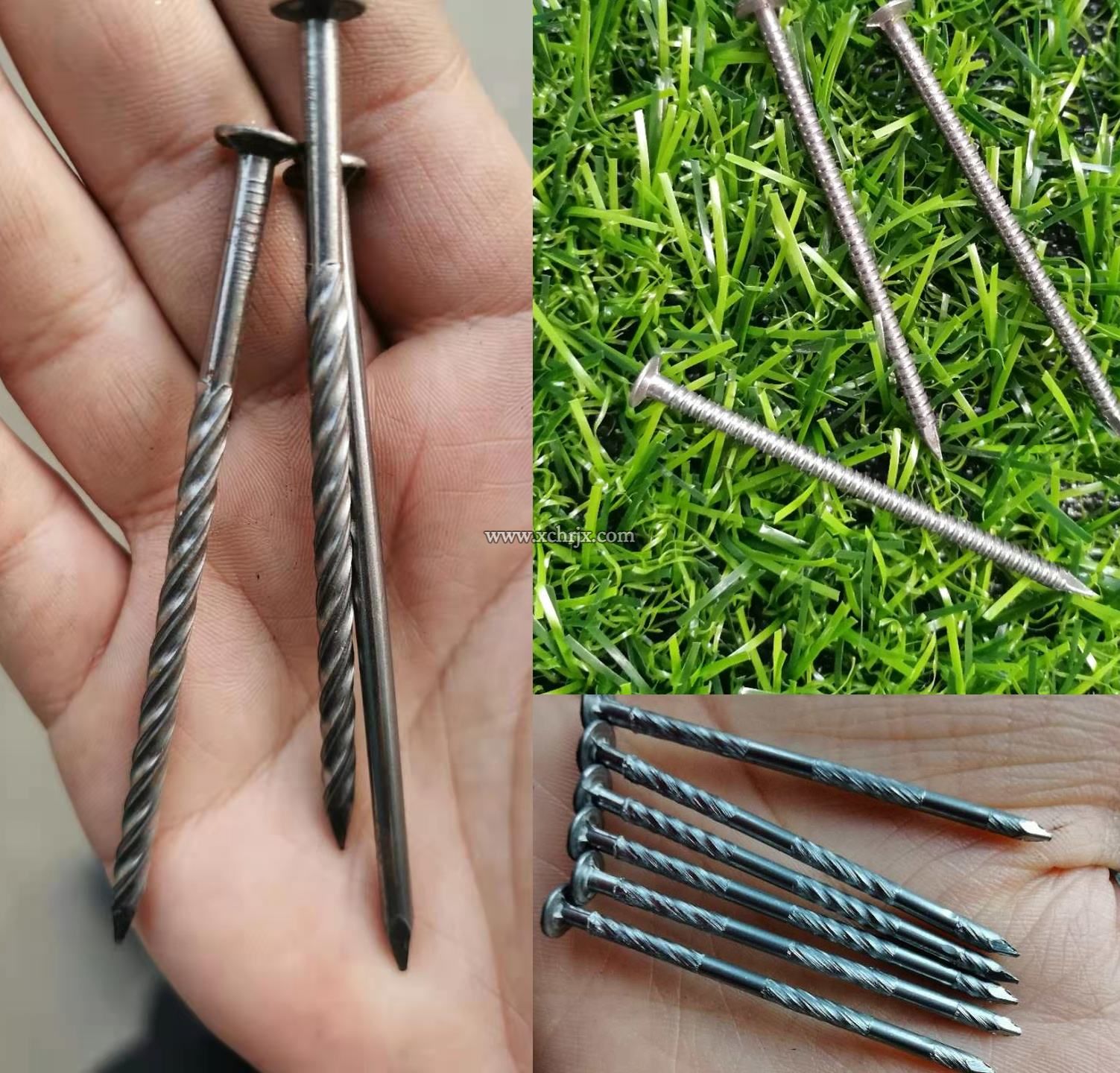

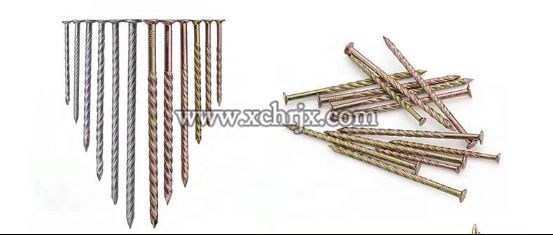

Main Applications of threading nails

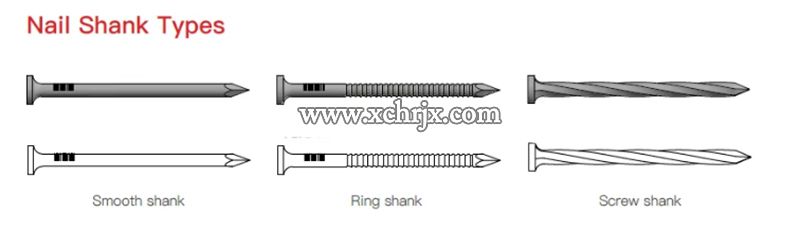

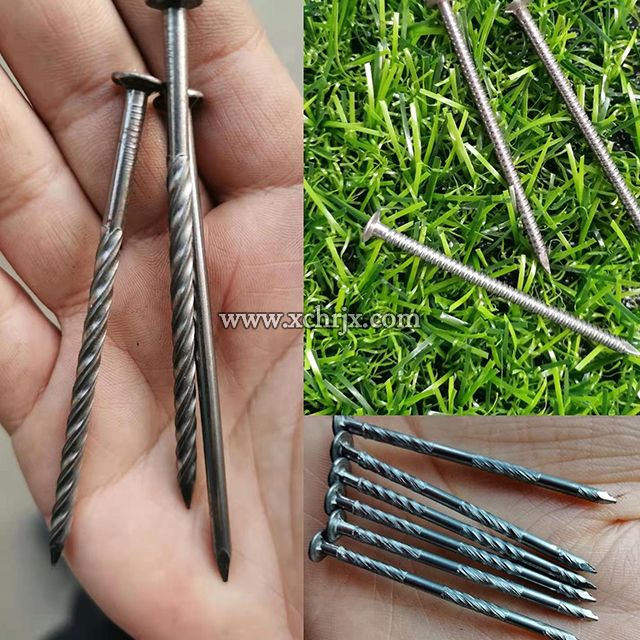

Construction nails: Ring shank nails (high pullout for wood), screw shank nails (anti-loose), spiral shank nails (for concrete/masonry).
Coil nails: Essential for coil nail production lines (after nail making, before collating).
Specialty nails: Roofing nails, pallet nails, furniture nails, packaging nails.
High-performance fasteners: Where thread strength and anti-pullout are critical.

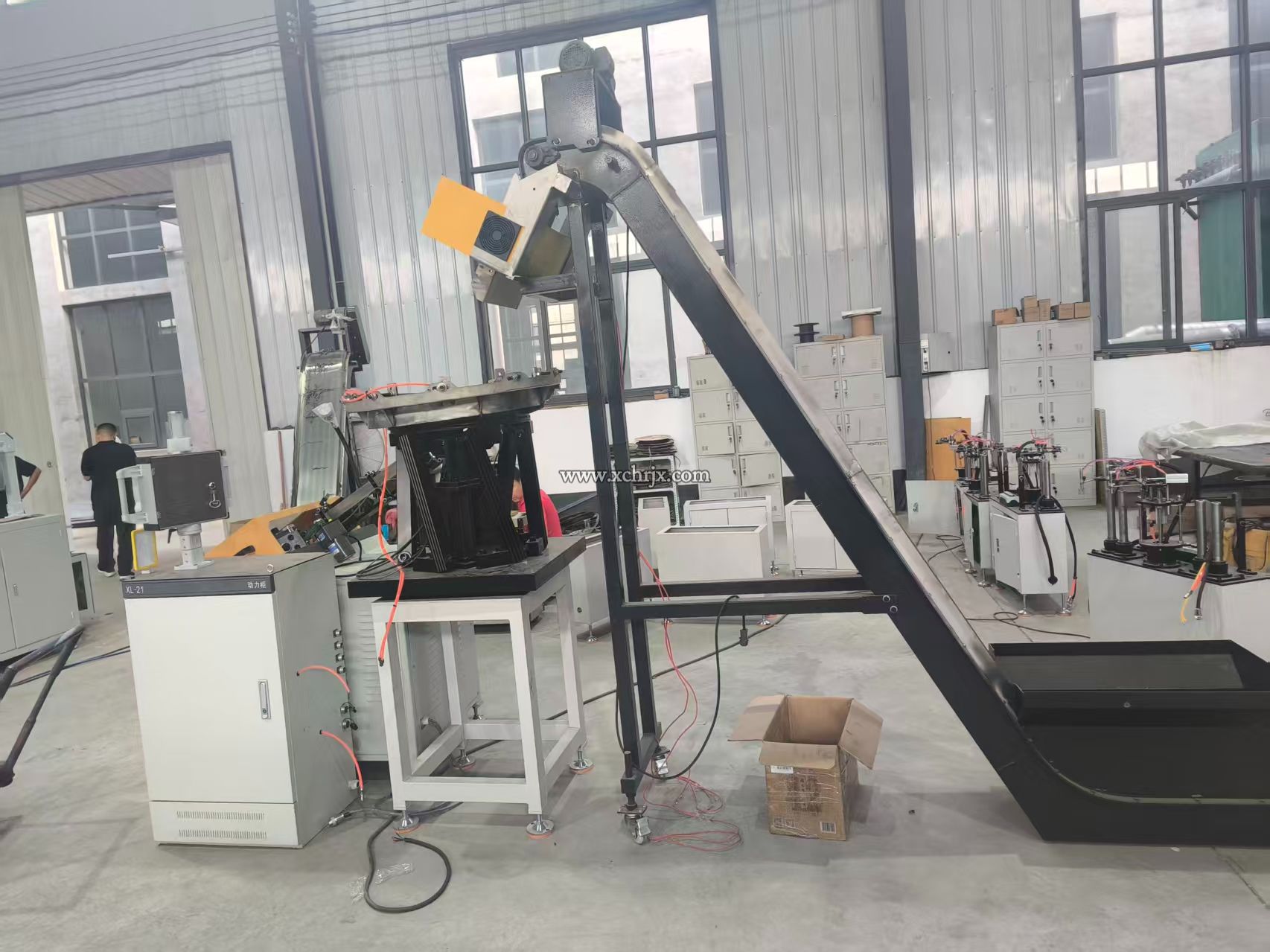

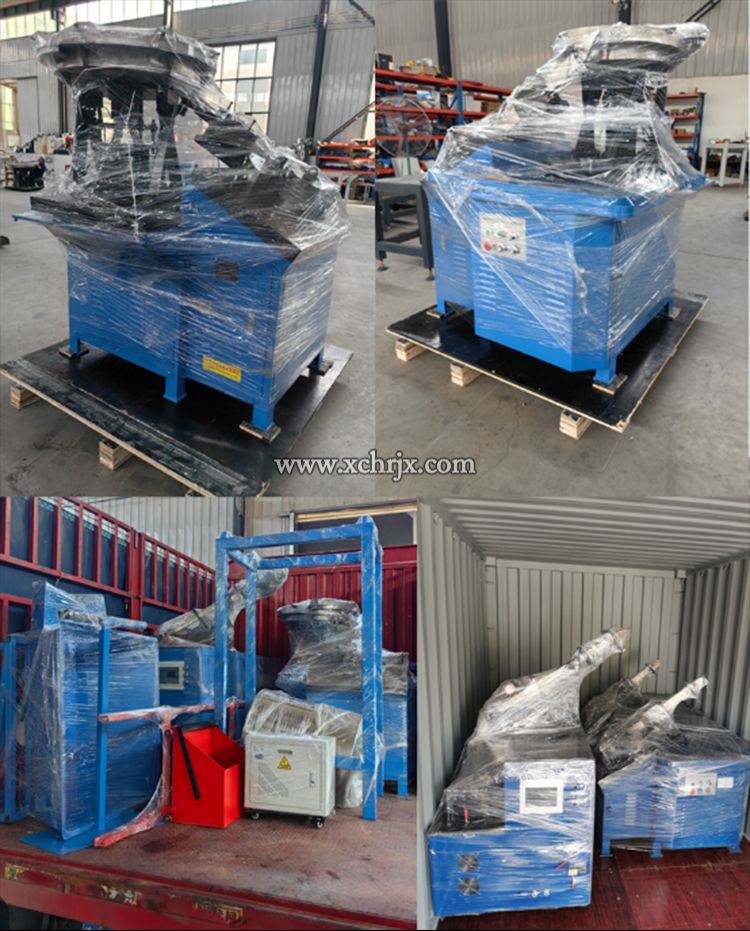

Shipping pictures of twist nail making machines

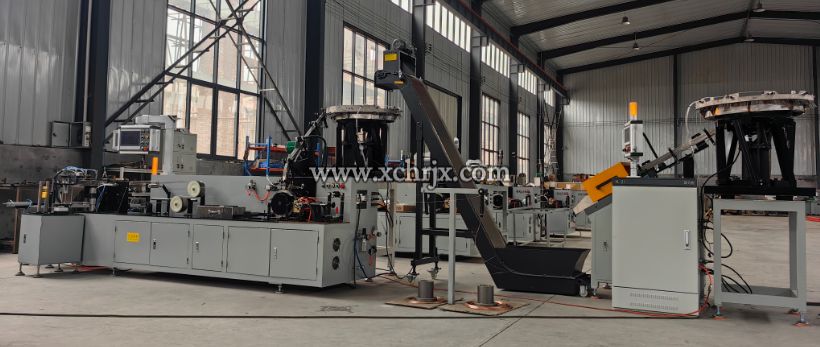

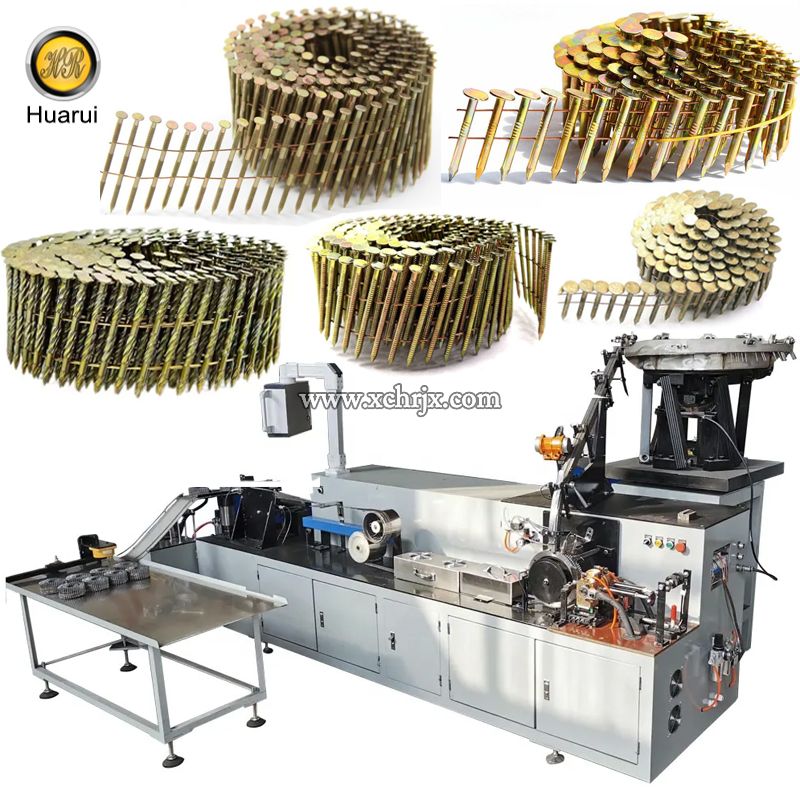

Coil nail welding machine , Coil nail making machine
What we can do for you?
1.Pre-sale service:
1).Instruction-----Special analysis of our equipment for customers' understanding.
2).Welcome to visit our factory, and discuss with our professional technician.
3).Customized---According to customer's production request,making the production solution professionally.
2.On-sale service:
1). Welcome to inspect your goods before loading or we send you the photos.
2). Product quality is guaranteed, all inspection agency documents is satisfied if necessary.
3). Inspection before loading is offered if you need .
4). Documents for customs clearance is supplied.
3.After-sale service:
1).24 hours technical support online.
2). engineers are available to your factory to install and operate machines.
