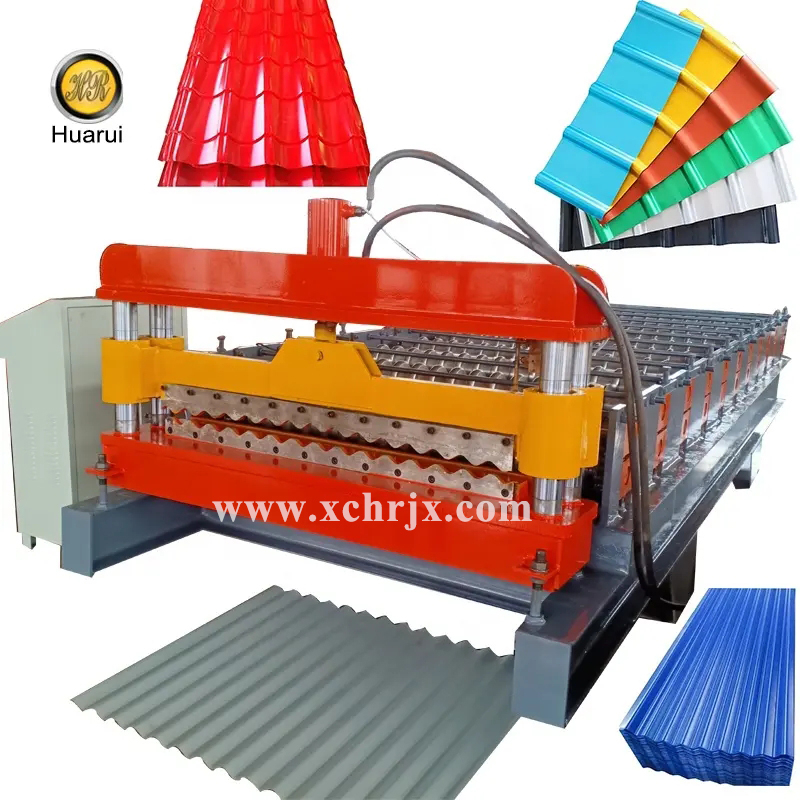

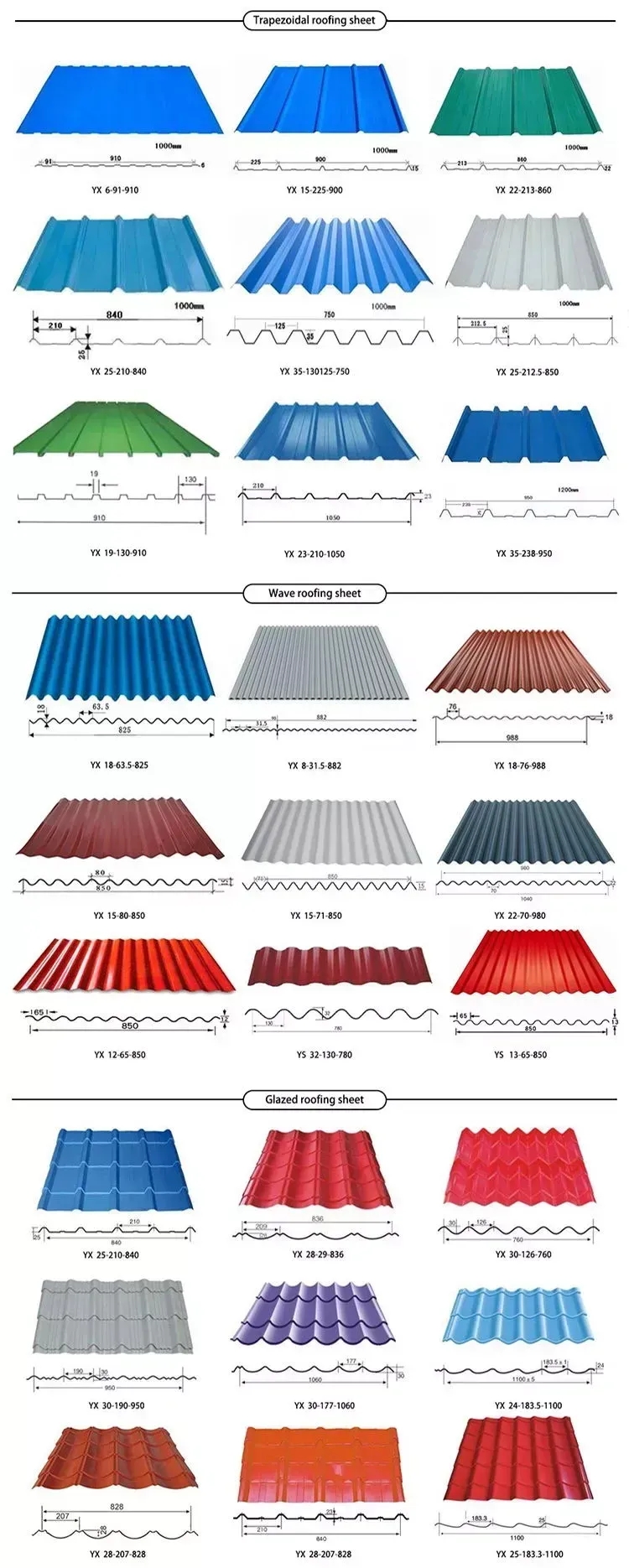

Function:
The machine we provide can process zinc plating steel sheet, color panting sheet(PPGI) which the thickness scope 0.3-0.6 mm, width from 914 mm to 1250 mm.
Main technical parameters: | ||
1 | Decoiler | 1. Bearing: 5T 2. Feeding way: Manual with brake |
2 | Main Forming System | 1. Feeding width: 1000 mm 2. Roller stations: 13rows 3. Material of Roller: 45# steel, Hard chromium plating 4. Diameter of main shaft:80mm 5. Chain: 1.5 inch 6. Thickness of sheet: 0.3-0.8mm 7. Power of main motor:7.5kw 8. Forming Speed:8-15m/minute 9. Side plate thickness: 20mm 10. Equipment base: 300H steel |
3 | Cutting device | 1. Material of blade: CR12, heat treatment HRC60-62 2. Cutting device: self length, self counting, automatic stop cutting, control length 3. Cutting way: Four guide post shear device |
4 | Hydraulic system | 1. Oil pump station:1set, CB-E310 2. Motor power of pump station: 4kw |
5 | Electrical System | 1. PLC and HMI touch Screen:Taiwan Delta 2. Frequency converter: 11kw(Mitsubishi) 3. Automatic length measurement, Automatic quantity measurement 4. Length measurement: Rotary Encoder 5. Power: 380V/50Hz/3PH |
6 | Machine Size | Size (L×W×H): about 7.2m×1.4m×1.5m |
7 | Weight of the production line | Total weight: about4.0T |

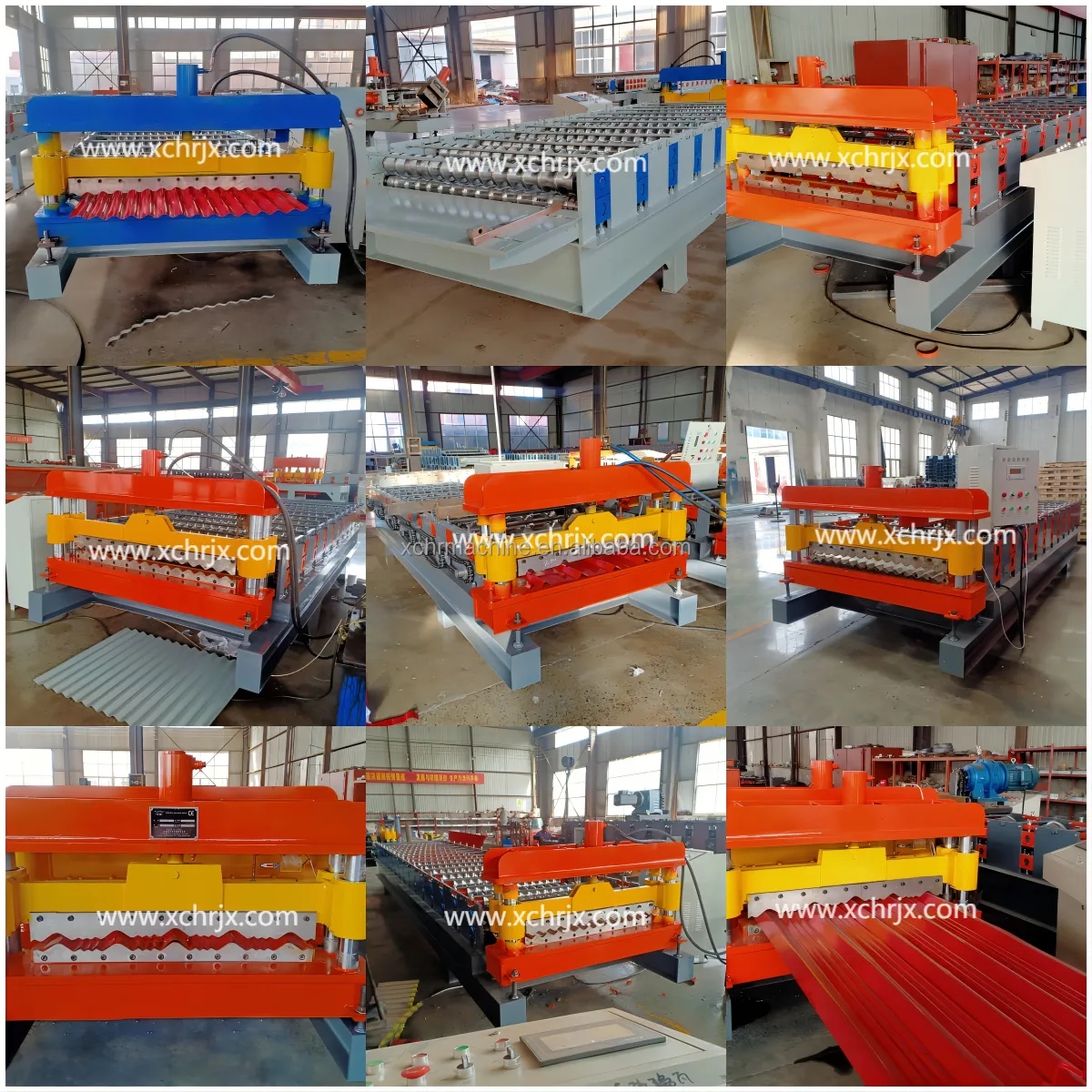

Detailed Image:

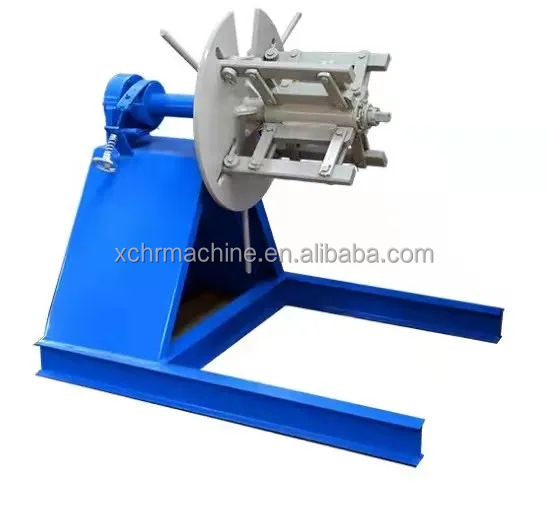

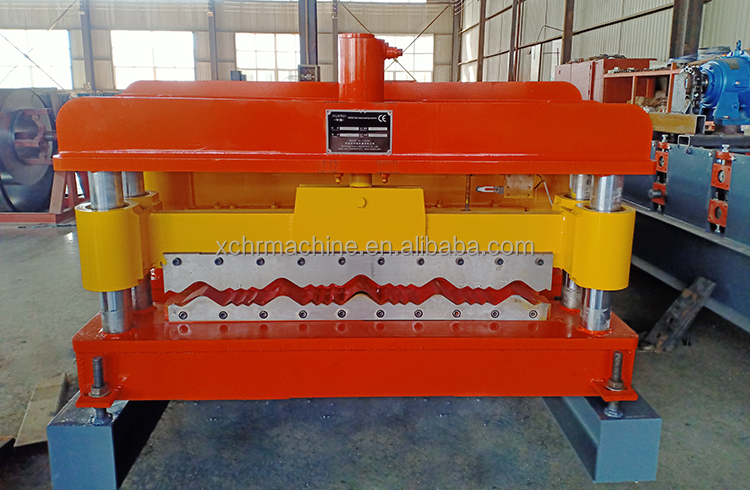

 | Decoiler Pic just for reference,It is used to stand the steel coil and uncoil, keep them working stably. Loading capacity: 3tons |
Hydraulic cutting Controlled by oil pump Automatic cutting as target products length Blade material: Cr12, quenching treatment |  |

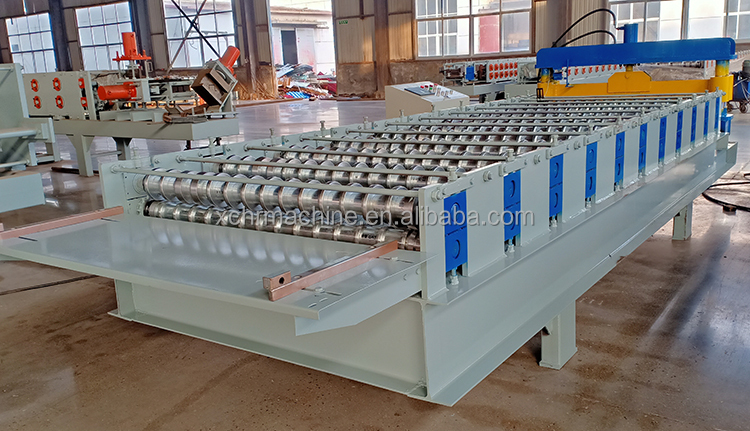

 | Roll forming body Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped |

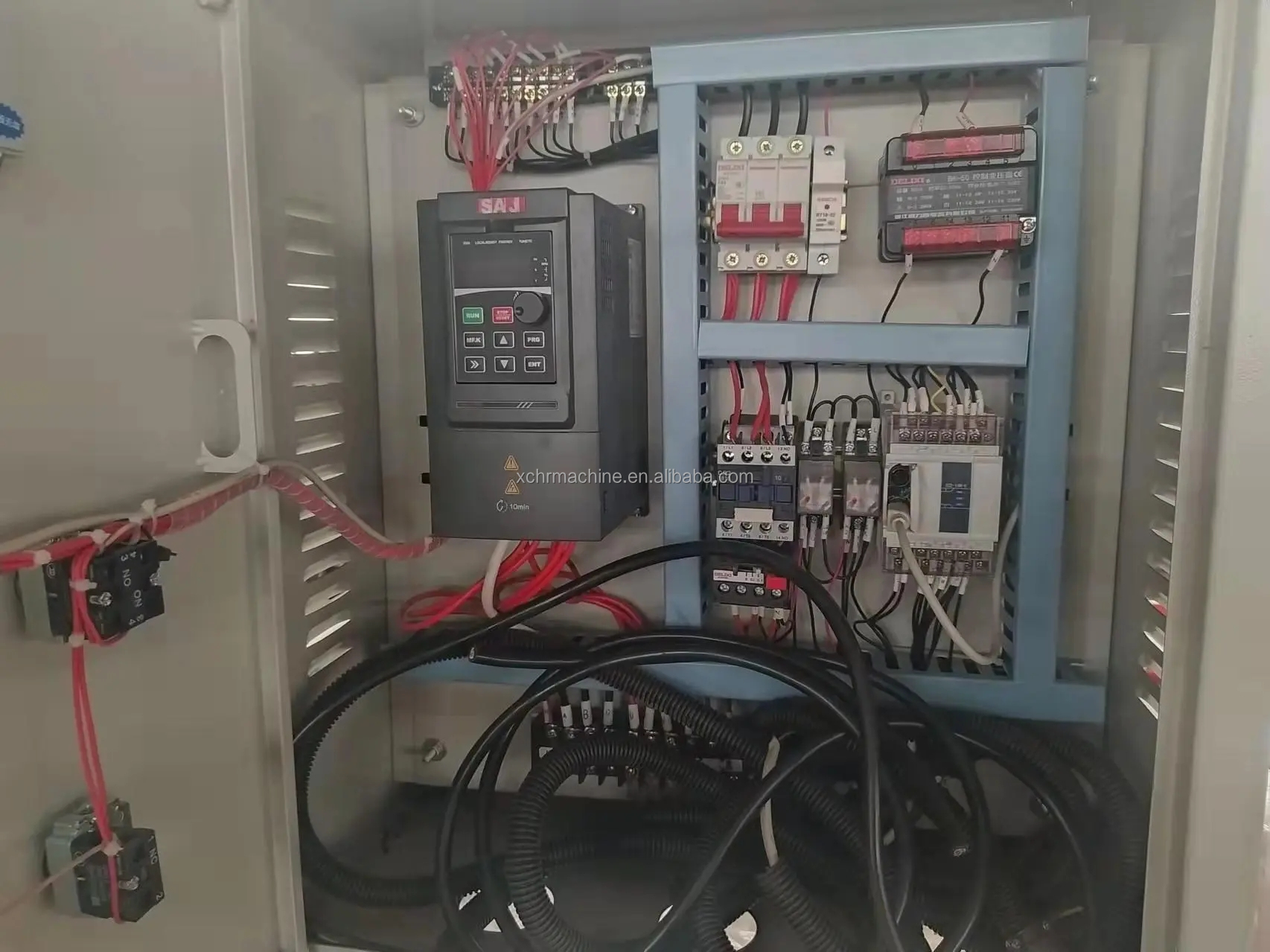

computer control system Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily |  |

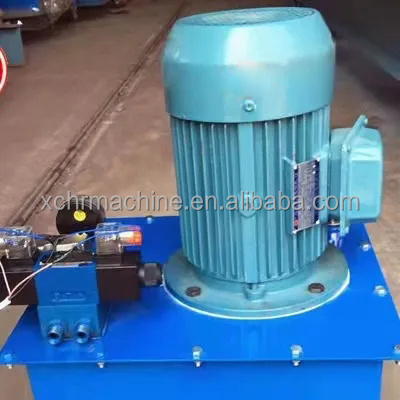

 | Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa |
