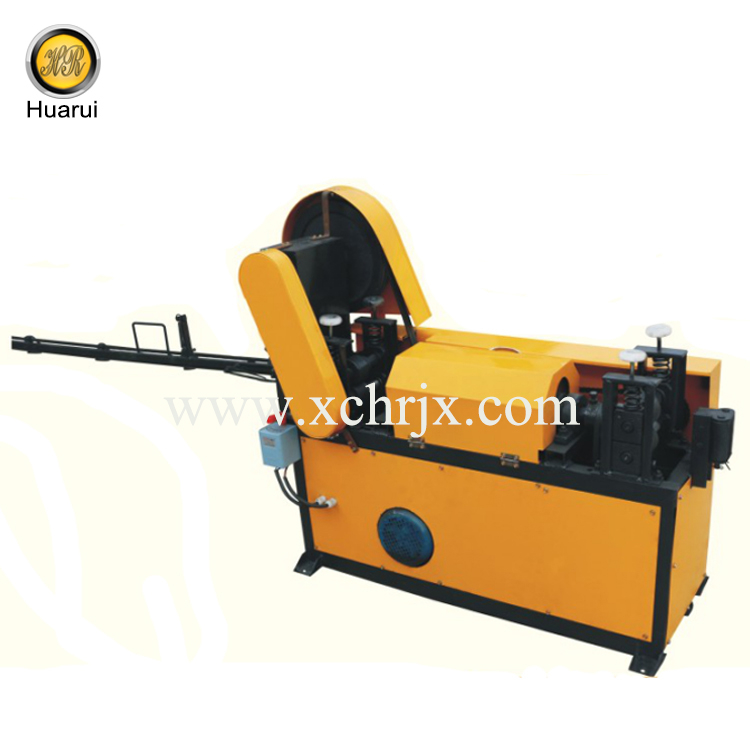

HR3-6mm zero error steel wire straightening cutting machine
Product introduction:
HR3-6mm zero error steel wire straightening and cutting machine is used to straightening all kinds of 3-6mm steel wires, and then cut it into the needed length. It can do a prepare work before bending. HR3-6 have advantages of high-precision, high-speed, small-size and etc.It is more suitable for processing factory.
Product characteristic:
1. This product adopts traction with adjustable speed which ensure the reliability of feeding. And it can avoid the impact of steel bars.
2. Straightening wheel. Its square cutter and circle cutter are made of superior alloy steel which have been heat-treated. It can work under the heavy loading and has long using life.
3. This machine adopts CNC operating system. It can stop working after the setting quantity finished. This machine is zero error working style which can save more material than the straightening and cutting machines before.
Advantages of the machine:
It has the functions of automatic counting, pre-setting cutting amount, stop working after finished working and etc. Compared with other suppliers, the straightening frame uses hot rolling process, better appearance, stronger rigidity and better straightening result. The hydraulic system is simple and reliable, no leak oil and no blocking.
A. Faster straightening and cutting speed. As using the CNC system, the speed can be adjustable according to the users’ requirement.
B. More higher sizing accuracy. It uses importing CNC cutting controlling, zero error cutting and saved more materials.

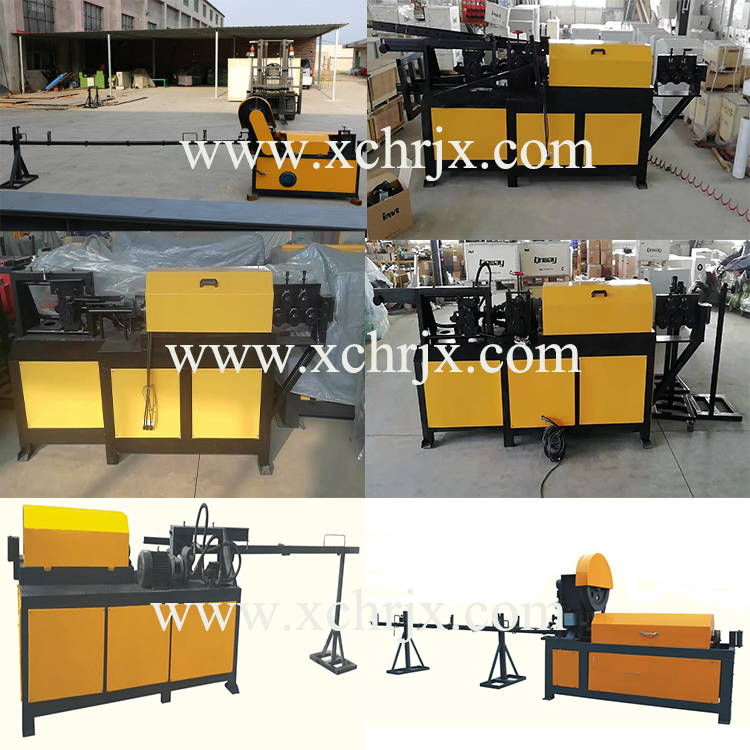

Pictures:
| GT3-6 | GT6-12 | GT6-18 | GT10-22 |
1.Cutting diameter: φ3-φ6mm 2.Straighten speed: 28-38m/min (Speed is adjustable.) 3.Motor: 1.5kw-4 grade straightening; 0.75kw-6 grade cutting 4.Weight:500KG 5.Size:1300*430*1100mm 6.Working Type: Numerical control, hydraulic (including 3m long straightening shelf) | 1. Straightening diameter range 6-12mm 2. Power 4kw 3. Wire specified length 40-3000mm 4. Wire drawing speed 20-40m/min 5. Cutting length error <1mm 6. Weight 380kg 7. Wire modulation ±1mm/m 8. L*W*H 1500x600x1500mm | 1.Cutting diameter: φ6-φ18mm 2.Straighten speed: 20-30m/min (Speed is adjustable.) 3.Motor: Straightening motor:4.0kw(6grade) Hydraulic motor:4.0kw(4grade) 4.Weight:750kg 5.Size:2.5m*0.75m*1m 6.Working Type: Numerical control, hydraulic (including 3m long straightening shelf) | 1.Working range (round bar/rebar): φ12-φ22mm 2.Straighten speed:25-30m/min 3.Straightening motor: 11kw Cutting motor:7.5kw 4.L*W*H:3.0×0.85×1.1m 5.Machine weight:1500kg 6. Cutting error: 0 7. Cutting length:50-3000mm Including three meter’s long straightening shelf |

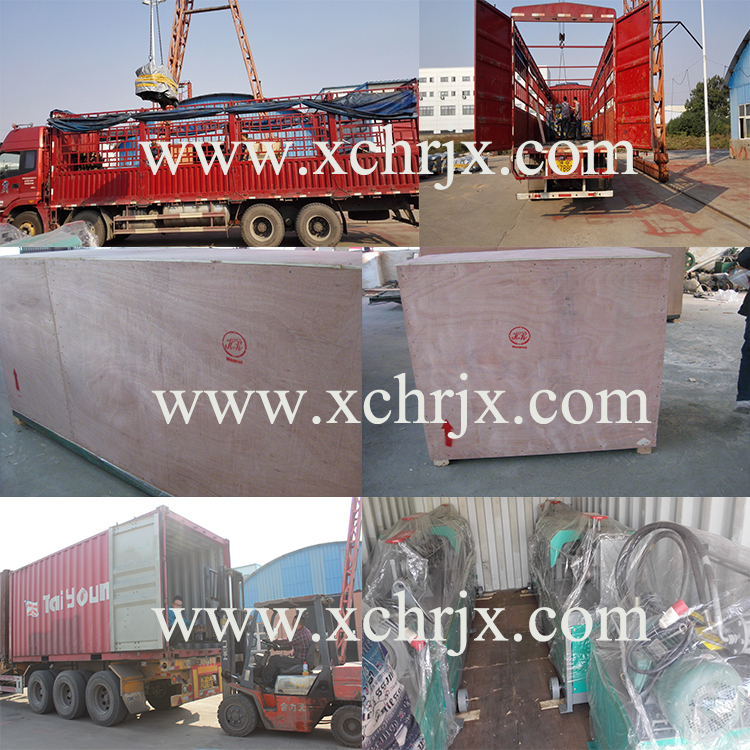

Packing and shipping pictures:
Photos with our customers:
