XKP400 Tire Crushing Machine / Machinery Recycling Tire

Our whole production line is used to make waste tires and rubber into rubber crumb and rubber powder.

Quantity:
  • XKP400
  • Huarui

XKP400 Tire Crushing Machine / Machinery Recycling Tire


Process Flow
Waste tires---tire circle cutter---tire strip cutter---tire chips cutter---rims separator---rubber crusher---magnetic separator(for separating steel)---fiber separator---rubber powder

Flow - 副本

Step 1:Pre-equipment for making rubber blocks

Tire ring cutting machine

QQJ-40 Tire Circle Cutter

Name

Technical parameter

Motor power

4 KW+0.75KW

Capacity

40pcs/h

Work range

∮650-1250 mm

 L*W*H

1.8m*1.3m*1.6m

Weight

650 kg

XKP400 (6)

Tire strip cutting machine

QTJ-390 Tire Strip Cutter

Name

Technical parameter

Motor power

5.5 KW

Capacity

1000kg/h

Motor speed

45r/min

L*W*H

1.3m*0.8m*1.65m

Weight

850 kg

Specification of cutting strip

3-8cm wide strip

XKP400 (8)

Tire block cutting machine

QKJ-358 Tire Slice Cutter

Technical parameter

Common tire slice cutter

Updated tire slice cutter

Motor power

5.5 KW

18.5KW

Capacity

800kg/h

1300 kg/h

Specification of cutting slice

3*5*8cm

3*5*8cm

L*W*H

1.0*0.8*1.4m

1.3*1.1*1.5m

Weight

800 kg

1200kg

XKP400 (7)

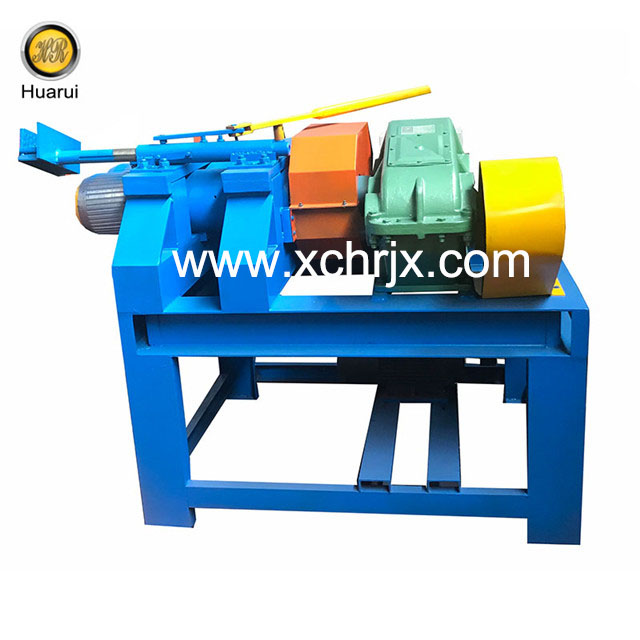

Steel wire separator

SWS-100 Steel wire separator

Name

Technical parameter

Motor power

11 KW

Capacity

100pcs/h

L*W*H

1.2*1.4*1.4m

Weight

1300 kg

Function: Used to separate the steel wire of tire circle.

XKP400 (5)

Step 2: Tire crusher set

Model No.

XKP-400

Diameter of front roll

400 mm (groove)

Diameter of back roll

400 mm (groove)

Drum working length

600mm

Front roll liner speed

34.5 m/min

Roll ratio

1:2.5

Max roller spacing

10 mm

Motor power

45KW/55KW

Weight

8.5 T

L*W*H

4.3*1.8*1.6m

Tips:

Both rollers are grooved which can improve the output.

Roller material is Alloy 5Cr6MnMo.

There are 8 pieces bearing inside the machine , all rolling bearing.


XKP400 (10)

XKP400 (1)

End products

end product (1)

Shipment photos

XKP400 (11)

Our certificate

CE
