Waste/ Used Tire Recycling Machine Prices/ Tire Recycling Line

Our whole production line is used to make waste tires and rubber into rubber crumb and rubber powder.
Availability:
Quantity:
  • XKP350/400/450/560/560L

  • Huarui

Waste/ Used  Tire Recycling Machine Prices/ Tire Recycling Line for Rubber Powder

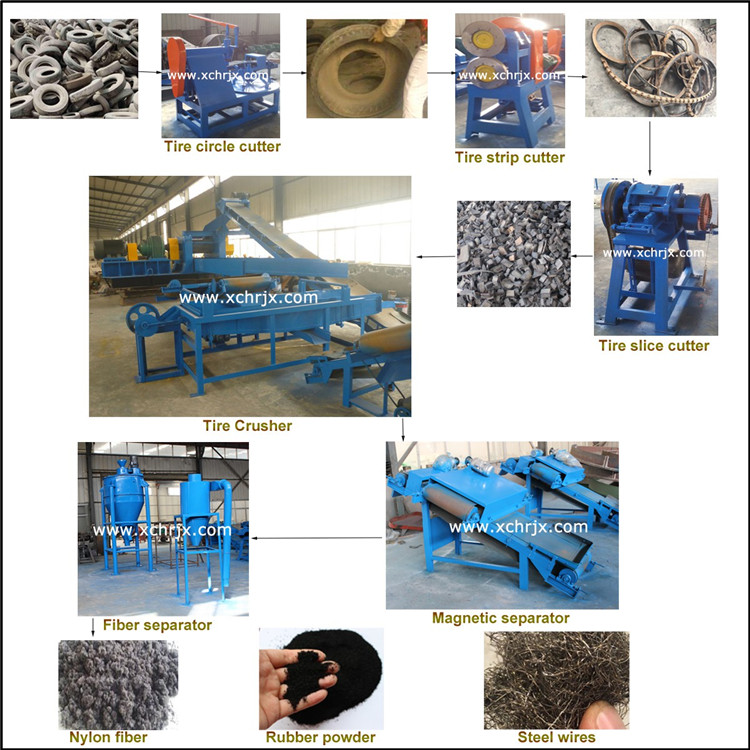

Process Flow
Waste tires---tire circle cutter---tire strip cutter---tire chips cutter---rims separator---rubber crusher---magnetic separator(for separating steel)---fiber separator---rubber powder

3Flow - 副本加框 - 副本

Step 1:Pre-equipment for making rubber blocks

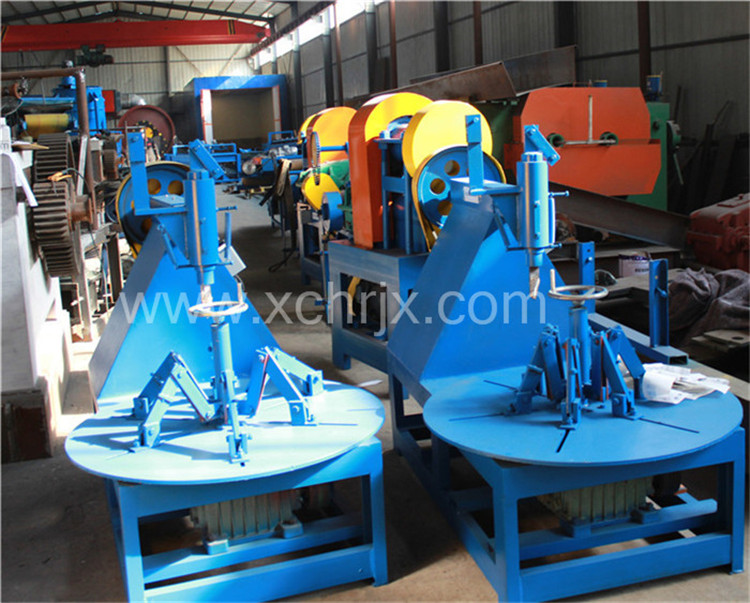

Tire ring cutting machine

Tire Ring cutter (8)

QQJ-40 Tire Circle Cutter

Name

Technical parameter

Motor power

4 KW+0.75KW

Capacity

40pcs/h

Work range

∮650-1250 mm

 L*W*H

1.8m*1.3m*1.6m

Weight

650 kg

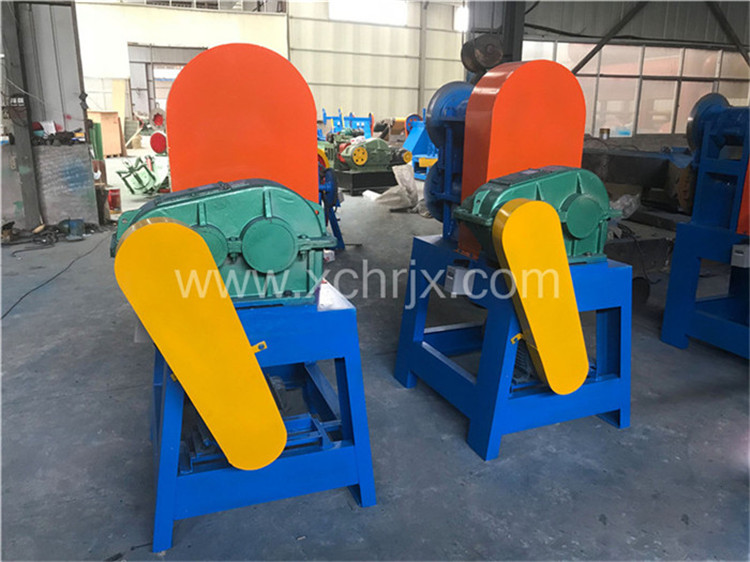

Tire strip cutting machine

1.Strip cutter (2)

QTJ-390 Tire Strip Cutter

Name

Technical parameter

Motor power

5.5 KW

Capacity

1000kg/h

Motor speed

45r/min

L*W*H

1.3m*0.8m*1.65m

Weight

850 kg

Specification of cutting strip

3-8cm wide strip

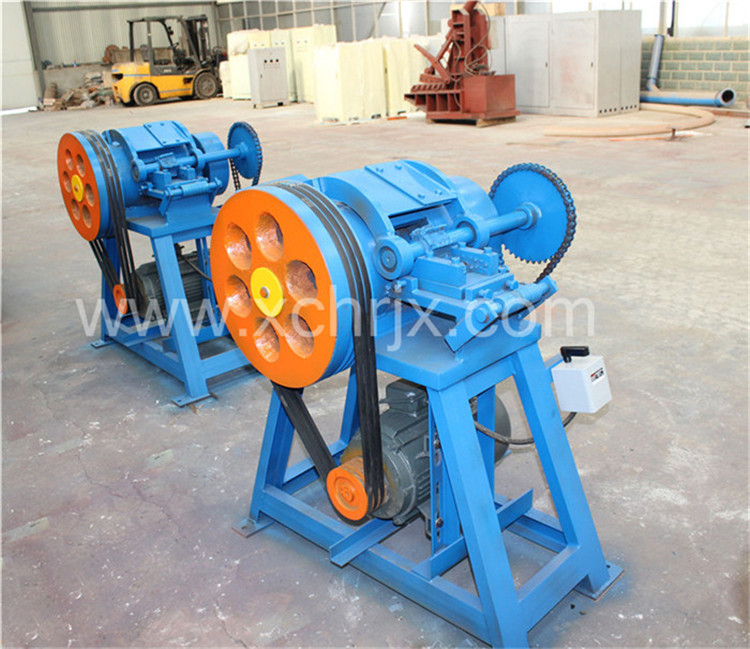

Tire block cutting machine

1. Block cutter (6)

QKJ-358 Tire Slice Cutter

Technical parameter

Common tire slice cutter

Updated tire slice cutter

Motor power

5.5 KW

18.5KW

Capacity

800kg/h

1300 kg/h

Specification of cutting slice

3*5*8cm

3*5*8cm

L*W*H

1.0*0.8*1.4m

1.3*1.1*1.5m

Weight

800 kg

1200kg

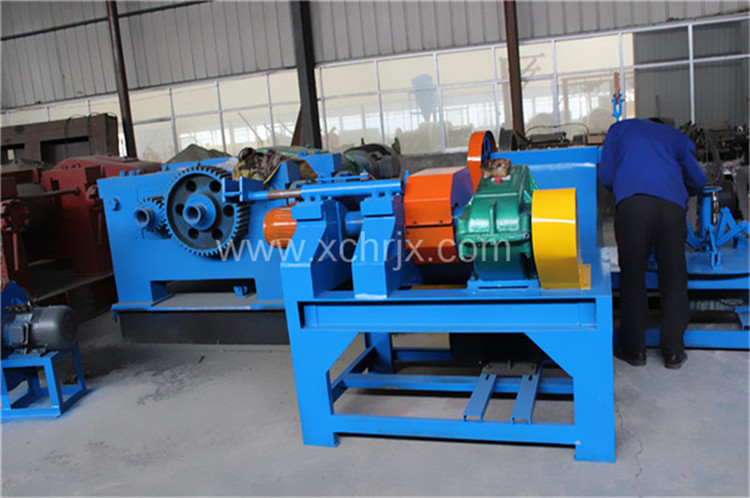

Steel wire separator

Steel wire separator (6)

SWS-100 Steel wire separator

Name

Technical parameter

Motor power

11 KW

Capacity

100pcs/h

L*W*H

1.2*1.4*1.4m

Weight

1300 kg

Function: Used to separate the steel wire of tire circle.

Step 2: Tire crusher set

crusher (5)

auxiliary - 副本

Model No.

XKP-350

XKP-400

XKP-450

XKP-560

XKP-560L

Diameter of front roll

300 mm (groove)

400 mm (groove)

450 mm (groove)

560 mm (groove)

560 mm (groove)

Diameter of back roll

300 mm (groove)

400 mm (groove)

450 mm (groove)

510 mm (groove)

560 mm (groove)

Drum working length

500mm

600mm

760mm

800mm

1000mm

Front roll liner speed

26.2m/min

34.5 m/min

38.0 m/min

40.6m/min

44m/min

Roll ratio

1:2.5

1:2.5

1:2.5

1:2.5

1:2.5

Max roller spacing

10mm

10 mm

10 mm

10 mm

10mm

Motor power

30KW/37KW

45KW/55KW

75KW /90KW

90KW/110KW

132KW/160KW

Weight

6T

8.5 T

11T

17.5T

21T

L*W*H

3.5*1.6*1.5m

4.3*1.8*1.6m

4.6*2.0*1.65m

5.3*2.0*1.7m

5.6*2.0*1.7m

Tips:

Both rollers are grooved which can improve the output.

Roller material is Alloy 5Cr6MnMo.

There are 8 pieces bearing inside the machine , all rolling bearing.

Highlight advantages

Advantage of our rollers

1)The material of our rollers adopts 5Cr6MnMo,which is very strong and wear resistant. It is life-long time using, no need to change, only welding and polishing after long time using. 2)Our both rollers are grooved, the crush ability is stronger. While most others use one grooved roller, one smooth roller and they usually adopt cast iron or cast steel for the rollers, so it will be very easy to break. 3)The speed ratios of our rollers is 1:2.5, others are 1:1.30. As we all know, the bigger speed ratio difference is,the bigger friction, and the bigger capacity you get. 4)The guaranty time of our rollers is 3years.
Comparison of rollers

Advantage of our bearing

Our tire crusher has 8pieces double row long ball rolling bearing. This kinds of operation mode not only greatly reduce the friction and heat of the equipment, improve the work efficiency and working life of the equipment, but also reduce the energy loss, save 1/3 power consumption than traditional rubber equipment. For example, producing 1000kg rubber powder, our machine electricity consumption is only 150°-180°, while others’ electricity consumption is about 250- 280°.
Comparison of bearing

Advantage of our reducer

Our reducer is Hyperbola gear reducer, which have double row gears, it has the advantage of large carrying capacity, long working life, low noise, good sealing and easy to installation and use. While most others are still use ZQ reducer or planetary gear, there is only one row gear, the twisting force is smaller than ours.
Comparison of reducer
End products

Our certificate

CE
