Waste Tire Recycling Machine 2

Quantity:

XKP350/400/450/560/560L/660 waste tire recycling machine

Process flows: waste tires--- circle cutting--- strip cutting--- slicing cutting--- magnetic separating--- separation—packaging—put in storage.



Rubber powder processing equipment

The whole set of rubber powder making equipment are consist of three main parts: scrap tires separating equipment, crusher set and grading magnetic separator.



1.       Waste tire separating equipment

These machines are special for disintegration, circle cutting, strip cutting and slice cutting of waste tires.

(1)    Tire circle cutter

The circle cutting machine is an alone accessory machine, it puts the tire which is greater than 650 type (both nylon and steel wire) flat on the machine, locking tire inside opening through up and down locking system, then putting alloy tools to target to the place of disintegration of tire to cut off the mouth and nation of tire, finished in 3 minutes. The power is 4kw; revolting speech is 40r/min, Shape dimension: 1.8m*1.3m*1.6m.

Name of product

Motor power

Weight

Capacity

Specification

Overall dimension

Tire circle cutter

4 KW+0.75KW

650 kg

40pcs/h

650- 1250 mm

(Both reinforced tire and nylon tires)

1.8m*1.3m*1.6m.



(2)    Tire Strip cutter

Tire strip cutting machine make use of two round special cutting tools to combination running cutting. It can cut the tire of circle cutting into 3-8mm wide strip, to use for dicer cutting. The material of this machine’s knife disk is special alloy structural steel (scientific name: Nine-chrome-silicon), diameter of knife disk isΦ390mm, hardness is 58-62GrS, more durable. With the hand grinding wheel cast when not sharp, power is 4kw, revolting speech is 45r/min, shape dimension: 1.3m*0.8m*1.65m.

Specification:

Name of product

Motor power

Work range

Processing speed

Dimension

Weight

Tire strip cutting machine

5.5 KW

tire of 650-1250 mm

20-35 strips/h

1.3m*0.8m*1.65m

850 kg



(3)    Tire Slice cutter



Tire slice cutting machine: the machine is prepared for the crush of host machine, it makes the cutting strip-type waste rubber cut into about 3*8cm small pieces, which can enter into host machine easily, high output and won’t damage roller.

Specification:

Name of product

Motor power

Weight

Designed capacity

Rubber slice size

Tire slice cutting machine

5.5 KW

800 kgs

800kgs/h

3*5*8 cm

Updated tire slice cutter

18.5KW

1200kgs

1300kgs/h

3*5*8 cm

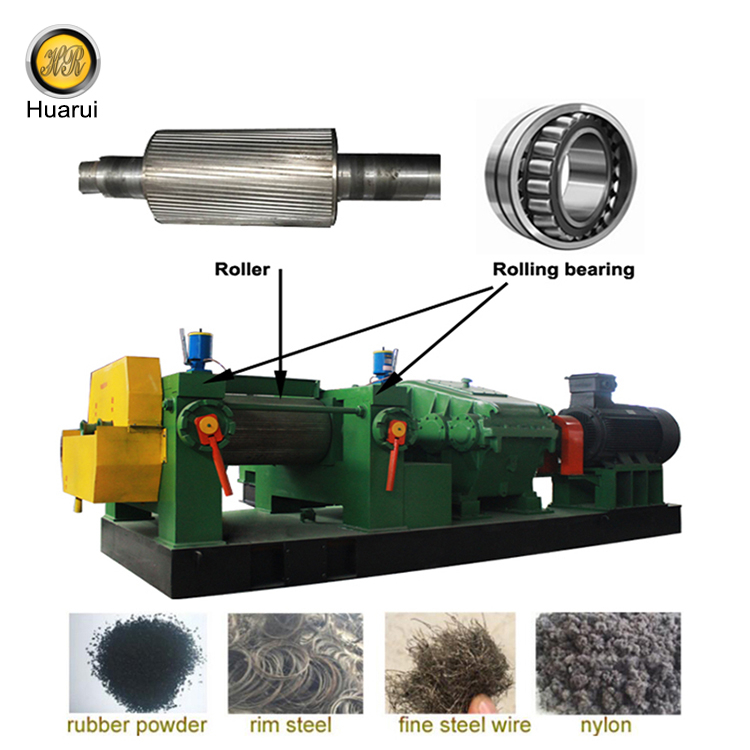

2. Rubber powder machine

The crusher set consists of host machine (rubber powder machine), conveyor and main vibrating screen.

Technical parameter

Model No.

XKP-350

XKP-400

XKP-450

XKP-560

XKP-560L

XKP-660

Diameter of front roll

300 mm (groove)

400 mm (groove)

450 mm (groove)

560 mm (groove)

560 mm (groove)

660 mm (groove)

Diameter of back roll

300 mm (groove)

400 mm (groove)

450 mm (groove)

510 mm (groove)

560 mm (groove)

610 mm (groove)

Drum working length

500mm

600mm

760mm

800mm

1000mm

1200mm

Front roll liner speed

26.2m/min

34.5 m/min

38.0 m/min

40.6m/min

44m/min

58m/min

Roll ratio

1:2.5

1:2.5

1:2.5

1:2.5

1:2.5

1:2.5

Max roller spacing

10mm

10 mm

10 mm

10 mm

10mm

10mm

Motor power

30KW/37KW

45KW/55KW

75KW /90KW

90KW/110KW

132KW/160KW

200KW

Weight

6T

8.5 T

11T

17.5T

21T

32T

L*W*H

3.5*1.6*1.5m

4.3*1.8*1.6m

4.6*2.0*1.65m

5.3*2.0*1.7m

5.6*2.0*1.7m

6.5*2.3*2m
