Welcome to Xuchang Huarui Machinery Co.,Ltd.
 |
| Quantity: | |
|---|---|
QQJ-40/ QTJ-390/ QKJ-358/ SWS-100
Huarui
Tire Cutting Machines/ Tire Circle/Strip/Blcok Cutter
1. Working flow

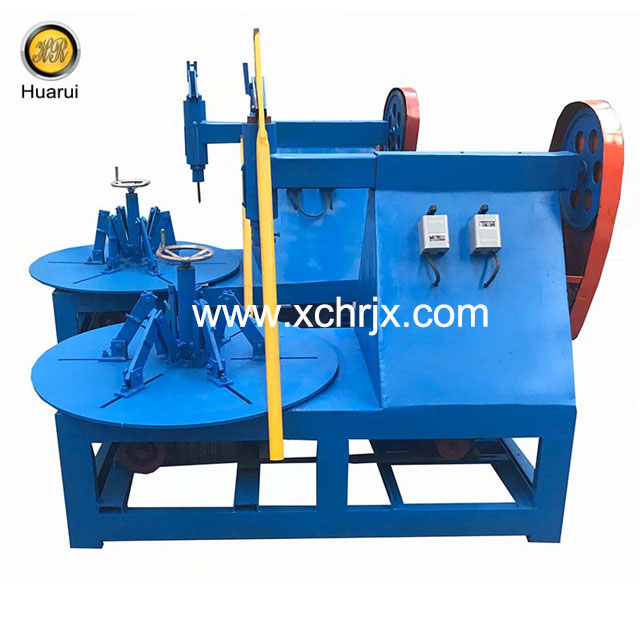

2.Tire circle cutter
Tire circle cutting machine is an alone accessory machine, it puts the tire which is greater than 650 type (both nylon and steel wire) flat on the machine, locking tire inside opening through up and down locking system, then putting alloy tools to target to the place of disintegration of tire to cut off the mouth and nation of tire, finished in 3 minutes. The power is 4kw; revolting speech is 40r/min, Shape dimension: 1.8m*1.3m*1.6m.
Technical parameter | |
Motor power | 4 KW+0.75kw |
Capacity | 40pcs/h |
Work range | ∮650-1250 mm |
L*W*H | 1.8m*1.3m*1.6m |
Weight | 650 kg |
3.Tire strip cutter
Tire strip cutting machine make use of two round special cutting tools to combination running cutting. It can cut the tire of circle cutting into 3-5cm wide strip, to use for dicer cutting. The material of this machine’s knife disk is special alloy structural steel (scientific name: Nine-chrome-silicon), diameter of knife disk isΦ390mm, hardness is 58-62GrS, more durable. With the hand grinding wheel cast when not sharp, power is 4kw, revolting speech is 45r/min, shape dimension: 1.3m*0.8m*1.65m.
Technical parameter | |
Motor power | 5.5 KW |
Capacity | 1000kg/h |
Motor speed | 45r/min |
L*W*H | 1.3m*0.8m*1.65m |
Weight | 850 kg |
Specification of cutting strip | 3-5cm wide strip |
4.Tire slice cutter
Tire slice cutting machine is prepared for the crush of host machine, Not only it makes the cutting strip-type waste rubber cut into about 3*5cm small pieces, but also can enter into host machine again through mutual use between sword and fixed knife, convenient to feed, high output and won’t damage roller easily, power is 5.5kw, revolting speech is 380r/min，shape dimension: 1m*0.8m*1.4m. To pay attention to the space between sword knife and fixed knife when the machine is in operation, best to keep at around 0.1mm, so that the steel wire can be cut off.
Technical parameter | |
Motor power | 5.5 KW |
Capacity | 800kg/h |
Motor spee | 380r/min |
Specification of cutting slice | 3*5*6cm |
L*W*H | 1.0*0.8*1.4m |
Weight | 800 kg |
5.Tire rims separator
Tire rims separator is used to separate the steel wire from tire ring. The main working part of this machine is two relative rotary roll shafts with the same speed. When tire circle cut into the middle of two rollers, it will be extruded by roll shaft, at the same time, be squeezed, Sheared and tear by the two relative rotary rollers. And finally complete the separation of the steel wheel by many times.
Technical parameter | |
Motor power | 11 KW |
Capacity | 100pcs/h |
L*W*H | 1.2*1.4*1.4m |
Weight | 1300 kg |
Function：Used to separate the steel wire of tire ring. | |
6. Shipment photos
7. Our certificate
