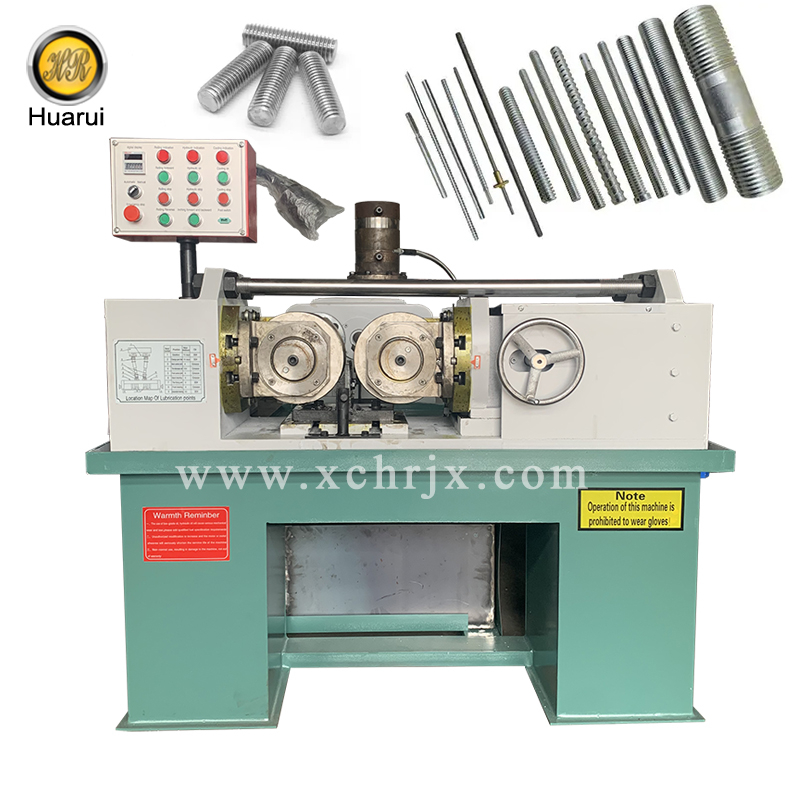

Steel Thread Rolling Machine for Rebar Steel Bar

Machine Characteristic:
1.It can make the thead form of good quality.And it It has the high precision.
2.It can be used to process scerw, bolt and rebar. The rebar processed by the machine has the good overall mechanical.It can make the tensile strength increased by 20%-30%,the fatigue strength increased by 40%-60%,corrosion resistance increased by 50%-200%.Mechanical properties of rebar connector reached and more than international standards.
3.It works safe and reliable.It can works all day long,and can save steel and energy.
4.It adopt innovative design and advanced technology,alos it has the high precision and easy to operate.
5.Good equipment for no hydraulic pressure, low power cost Reliable quality and high efficiency Compact , eansonable structure Avoid adjusting disoder thread and convenient adjustment.
Availability:
Quantity:
  • HR28-40, HR28-80, HR28-150, HR28-185, HR28-200

  • Huarui

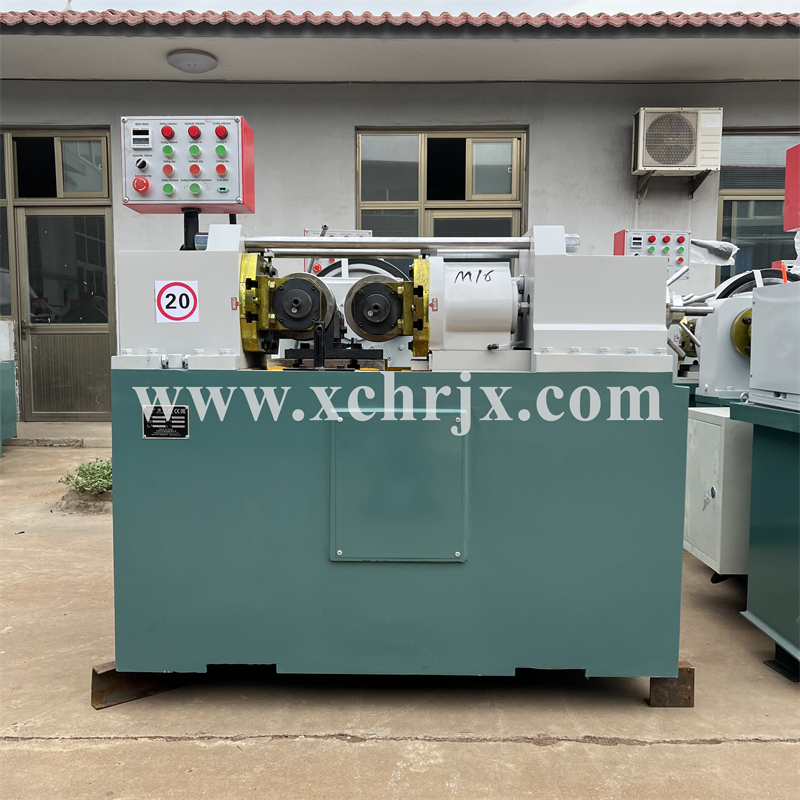

thread rolling machines15

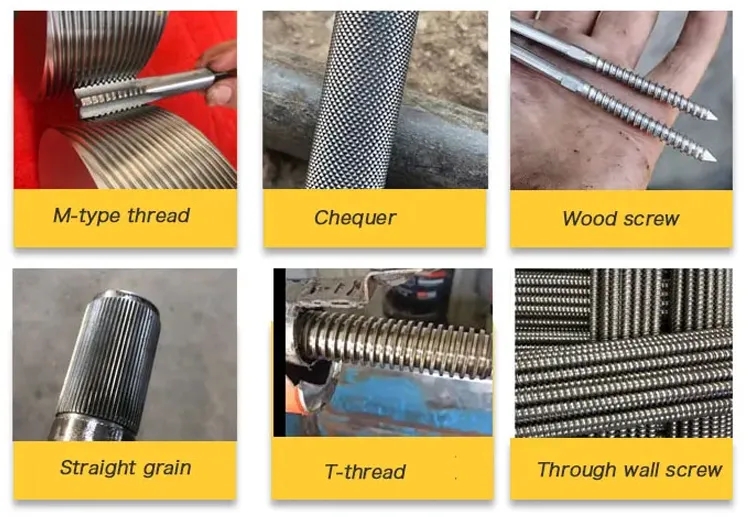

thread rolling machine (2)

Machine Characteristic:

1.It can make the thead form of good quality.And it It has the high precision.
2.It can be used to process scerw, bolt  and rebar. The rebar processed by the machine has the good overall mechanical.It can make the tensile strength increased by 20%-30%,the fatigue strength increased by 40%-60%,corrosion resistance increased by 50%-200%.Mechanical properties of rebar connector reached and more than international standards.
3.It works safe and reliable.It can works all day long,and can save steel and energy.
4.It adopt innovative design and advanced technology,alos it has the high precision and easy to operate.

5.Good equipment for no hydraulic pressure, low power cost Reliable quality and high efficiency Compact , eansonable structure Avoid adjusting disoder thread and convenient adjustment.


Main Technical Parameters of Each Model:


Model
HR28-40
HR28-80
HR28-150
HR28-185
HR28-200
Max rolling pressure
120KN
150kn
150kn
180kn
200kn
Hydraulic diameter
5-36MM
6-42mm
6-48
10-60mm
14-80mm
Rolling wheel diameter
120-170MM
120-170mm
120-170mm
175-220mm
175-220mm
Max width of rolling wheel
110MM
110MM
110MM
150mm
150mm
Spindle center distance
120MM
120MM
120MM
150-300mm
150-300mm
Rolling wheel aperture
54hole
54hole
54hole
75hole
75hole
Hydraulic power
4kw
2.2kw
2.2kw
3kw
5.5kw
Main motivation
4kw
5.5kw
7.5kw
11kw
11kw
Spindle speed
36-78/min
36-78/min
36-78/min
20-64/min
20-64/min
Spindle tilt angle
±5°
±5°
±5°
±10°
±10°
Thread length
No limited
No limited
No limited
No limited
No limited
Dimensions
1.4*1.2*1.4m
1.48*1.33*1.44m
1.47*1.33*1.44m
1.78*1.73*1.43m
1.78*1.73*1.43m
weight
1100kg
1700kg
1800kg
2000kg
2600kg

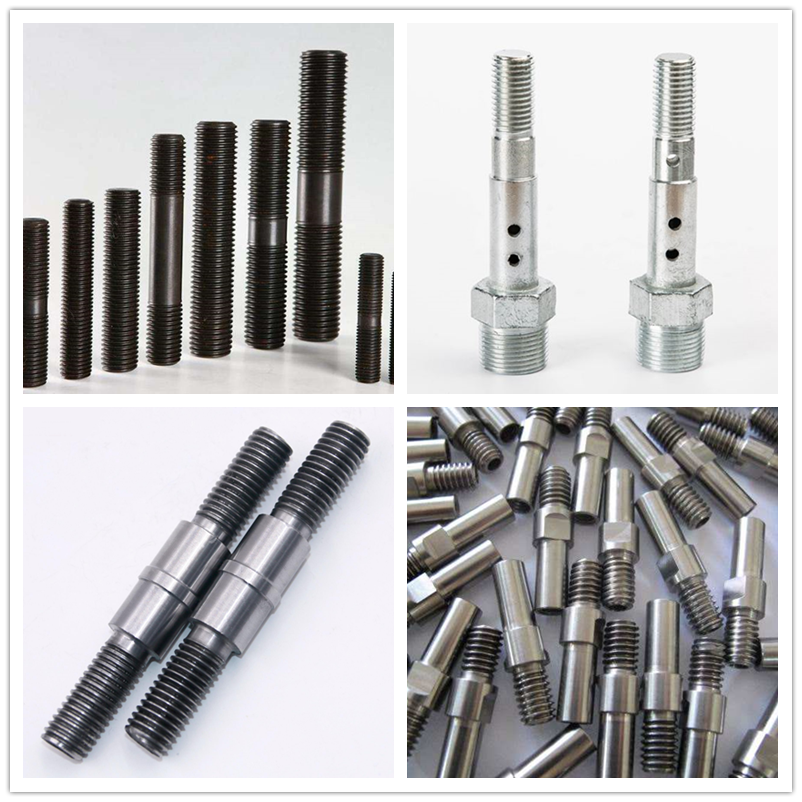

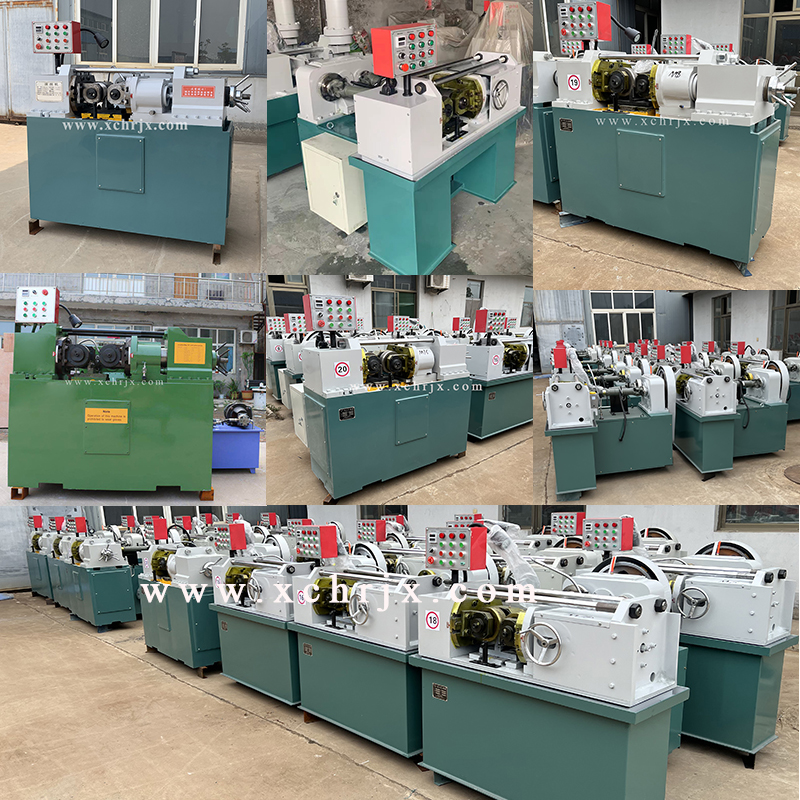

thread rolling bolt (2)-恢复的
