RJ2R-24-7
Huarui

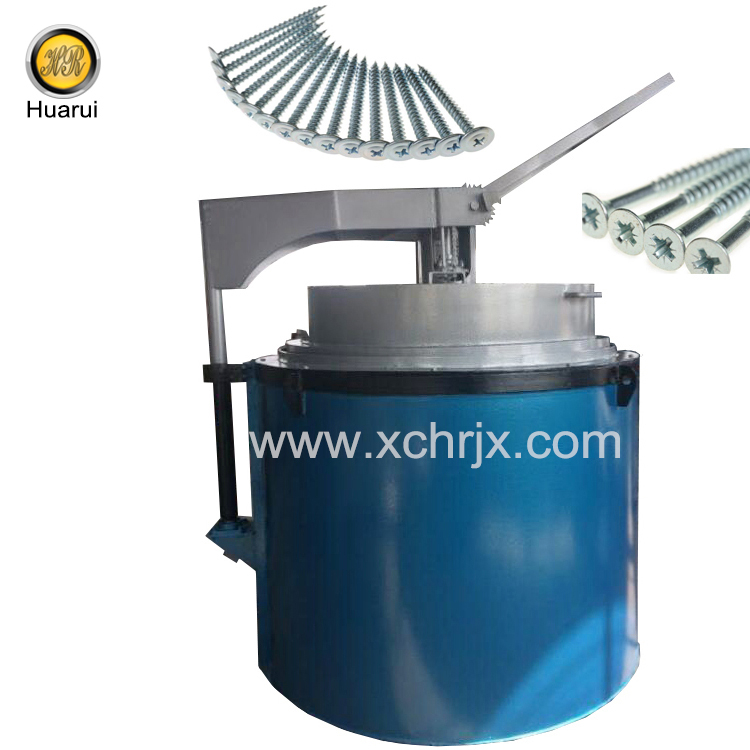

RJ2R-24-7 Electric Tempering Furnace
1. Function：
The furnace is mainly used for tempering metal workpieces, nails, screws and other small parts.
The furnace has the characteristics such as: good uniformity of furnace temperature, simple operation, simple maintenance, low energy consumption and energy saving.
2. Technical parameter：
Model No. | RJ2R-24-7 | |
Working Size | ||
Rated Power | 24KW | |
Maximum temperature | 700℃ | |
Temperature control area | 1 | |
Temperature control Accuracy | ±1℃ | |
Uniformity of furnace temperature | ±3-5℃ | |
Temperature control components | Solid-State relays, PID automatic transfer | |
Heating time of Empty Furnace | ≤0.5h | |
Temperature control instrument: | Japan Electric Intelligent Instrument | |
The electrical appliances have automatic switching furnace function, over-temperature alarm device | ||
Auxiliary electrical appliance of the Control cabinet adopts domestic famous brand, Chint electric appliance. | ||
Heating element | ||
Air return barrel material | 4mm 304 stainless steel plate rolled into round barrel | |
Windshield and fan blade material | 304 stainless steel plate | |
Fan shaft material | Φ50 stainless steel 304 round steel | |
Furnace cover | The upper layer with A3 board, the middle uses the fiber cotton, the lower layer uses 3mm201 stainless steel plate | |
Furnace structure | Energy-saving refractory bricks and insulation cotton composition, insulation layer is not less than 300mm | |
Temperature measuring element | Strong alkali-resistant stainless steel thermocouple K-degree number | |
Hot air circulating fan | 1.5KW motor, fan blade diameter is not less than 360mm, centrifugal type | |
Control cabinet size (L x W x H) | 1800x450x370mm | |
