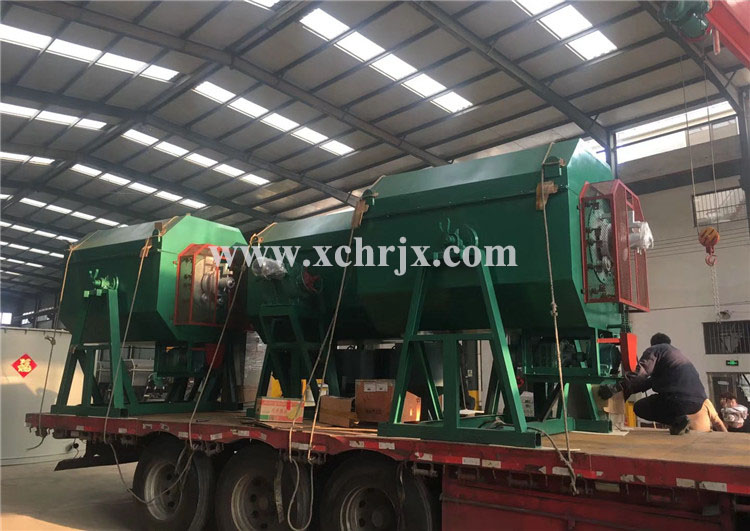

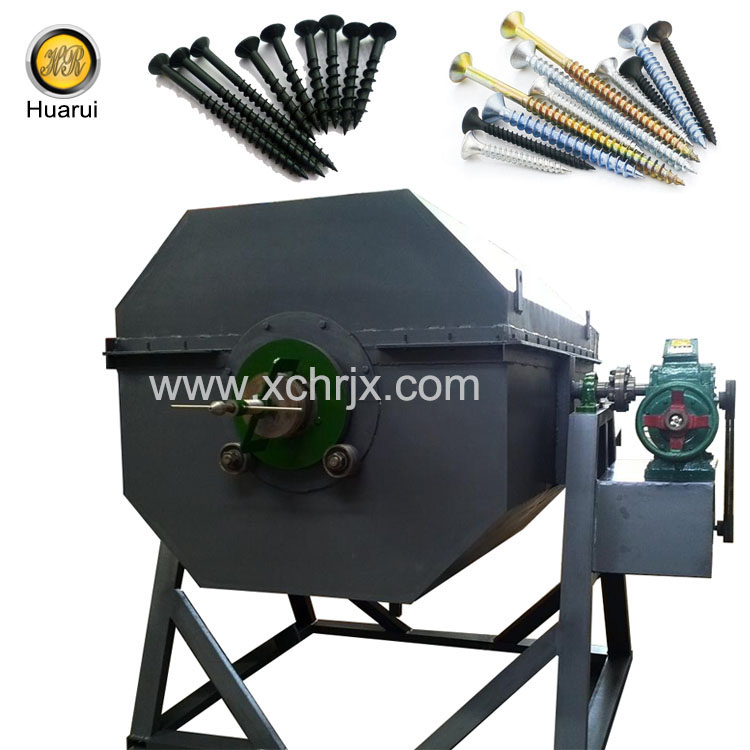

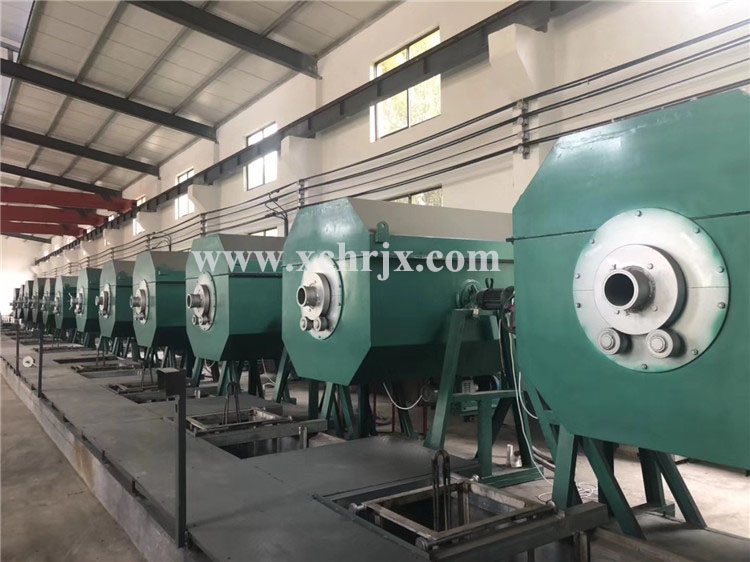

RGR60-9 Electric heat treatment furnace
Huarui
RGR60-9 Electric heat treatment furnace
1. Function：
The furnace is mainly used for quenching, tempering, annealing, and other heat treatment of bicycle parts, sewing machine parts, standard parts, steel ball bearings, rollers, nails, screws and other small parts.
The furnace has the characteristics such as: good uniformity of furnace temperature, simple operation, simple maintenance, low energy consumption and energy saving.
2. Technical parameter:
Model No. | RGR60-9 |
Rated power | 60KW |
Rated voltage | 380V/3phases |
Rated temperature | 950°C (controlled) |
Instrument temperature control accuracy | ±1℃ |
Temperature control partition | 1 |
control mode | Pid automatic mobilization, solid state relay |
heating element | |
Furnace pipe material | 10mm 310S stainless steel（2520） |
Heating element connection | Y |
Furnace tank size | Φ600×750mm |
Heating area | 1 |
Discharging way | axial discharge |
Cooling mode | natural cooling |
furnace tank material | 310S heat-resistant stainless steel |
Overall dimensions | Φ2300*2400 |
Weight of the furnace | 3.0ton |
