Function:

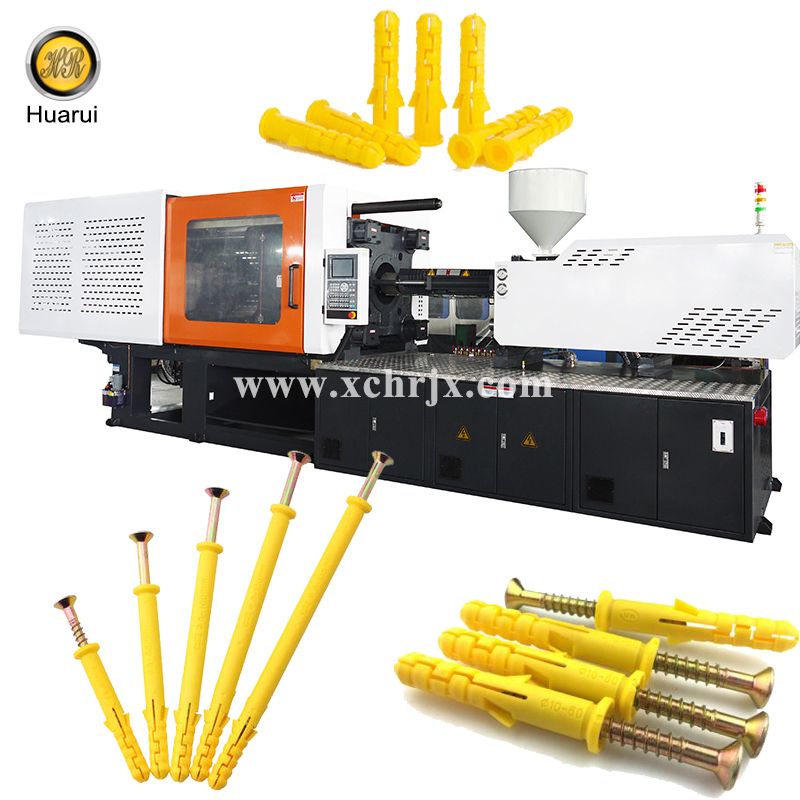

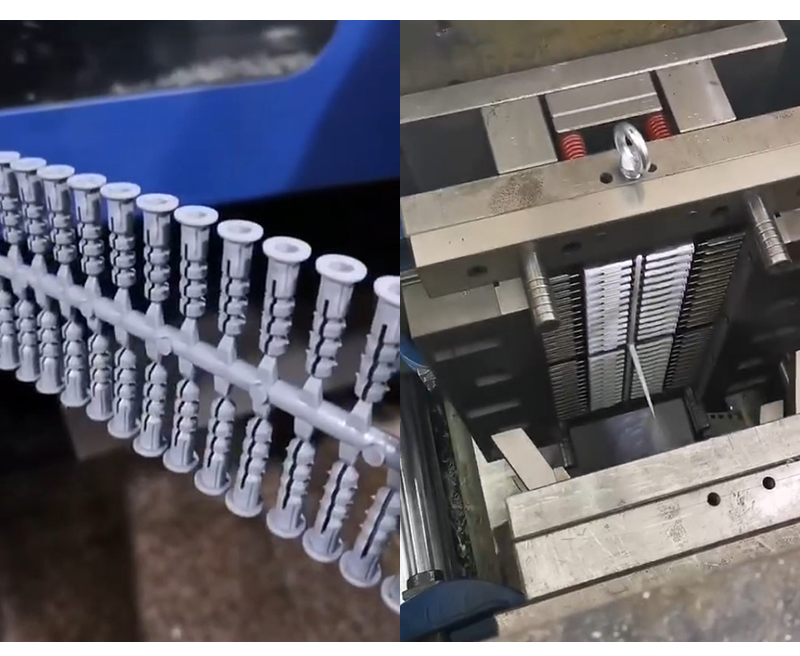

1. The machine can make different shape and size of expansion screws/plastic screws by changing different molds.
2. It adopts box-type bridge structure movable formwork and high-rigidity full-connected formwork.
3. After finite element analysis, it can prevent formwork deformation, fatigue resistance, high repeatability, uniform clamping force distribution, high product accuracy, and greatly extended mold life, Reduced product cost.
Specification:
Technical Parameters | Model HR-128 | ||
Injection Unit | A | B | C |
Screw diameter (mm) | 40 | 42 | 45 |
Shot Volume (cm3) | 201 | 256 | 294 |
Injection weight (g) | 181 | 230 | 265 |
injection pressure (Mpa) | 225 | 181 | 158 |
Screw speed (rmp) | 200 | ||
Clamping Unit | |||
Clamping force (KN) | 1280 | ||
Open stroke (mm) | 360 | ||
Max Mold height (mm) | 400 | ||
Min Mold height (mm) | 150 | ||
Space between tie bars(mm) | 420x380 | ||
Ejector force (KN) | 38 | ||
Ejector stroke (mm) | 100 | ||
Others | |||
Pump pressure (Mpa) | 16 | ||
Motor/driving power (KW) | 11 | ||
Heating power (KW) | 7.7 | ||
Machine dimension (M) | 4.2x1.2x1.8 | ||
Machine weight (T) | 3.8 | ||
Oiltank cubage (L) | 180 | ||
