Product Introduction

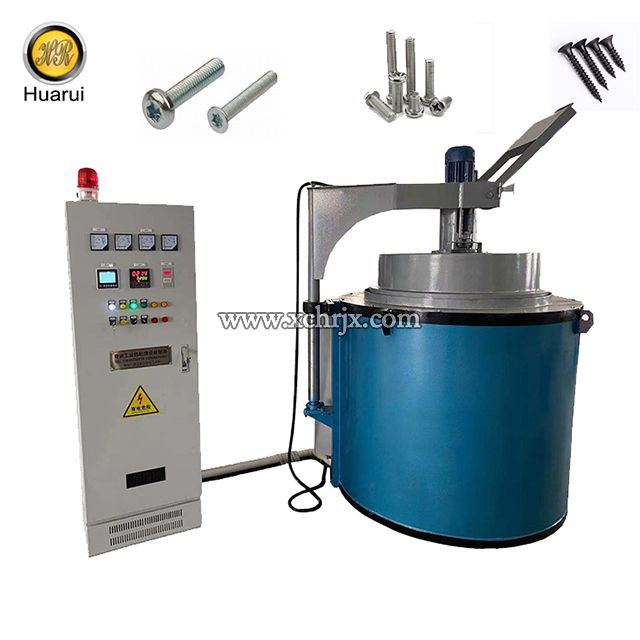

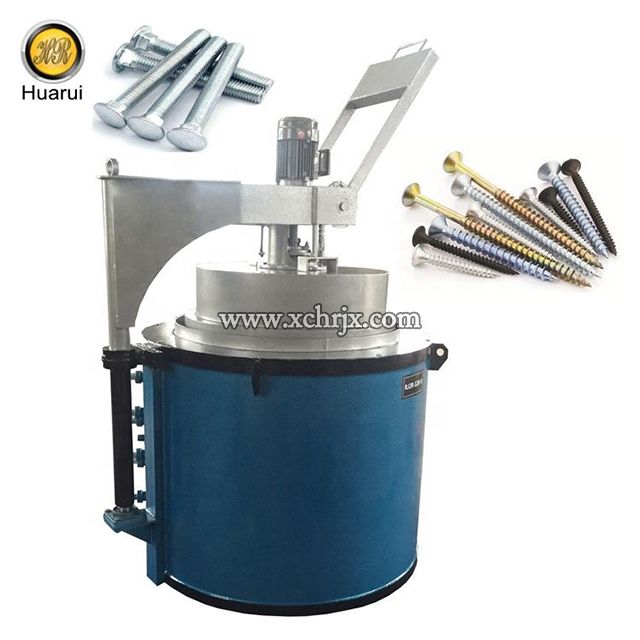

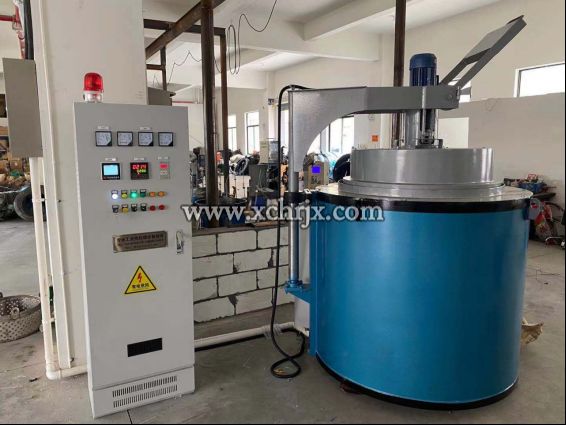

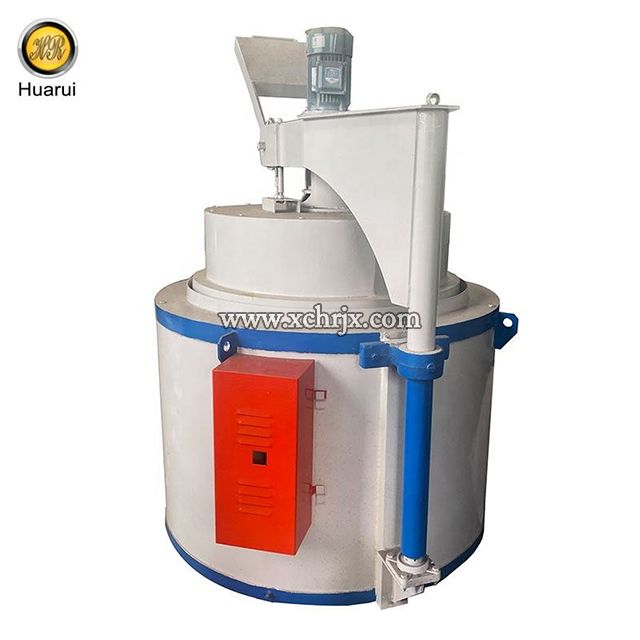

High Temperature Tempering Furnace Price Quenching and Tempering Heat Treatment Equipment Electric Screw Tempering Furnace
Tempering furnace is a heat treatment device used to heat, hold, and cool quenched metal workpieces at temperatures below the critical temperature. Its core purpose is to eliminate quenching stress, stabilize the microstructure and dimensions, and adjust hardness and toughness to give the workpiece the final performance required for its intended use.
Product Advantage
1. Eliminating quenching stress – ensures dimensional stability, prevents cracking, and extends service life.
2. Adjusting hardness and toughness – achieves a "strength-toughness balance" to meet specific operating conditions (e.g., high elasticity for springs, sharpness and non-chipping for cutting tools).
3. Stabilizing microstructure and dimensions – prevents deformation of precision parts (bearings, molds) during long-term storage or use.
4. High temperature uniformity – ensures consistent tempering quality across the entire furnace, resulting in a low scrap rate.
5. Atmosphere compatibility – allows for use in various environments including air, protective atmosphere, and vacuum.
Technical Parameters
Model No. | RJ2R-24-7 | RJ2R-36-6 |
Working Size | 400x500mm (diameter x height) | 500x600mm (diameter x height) |
Rated Power | 24KW | 36KW |
Maximum temperature | 700℃ | 700℃ |
Temperature control area | 1 | 1 |
Temperature control Accuracy | ±1℃ | ±1℃ |
Uniformity of furnace temperature | ±3-5℃ | ±3-5℃ |
Temperature control components | Solid-State relays, PID automatic transfer | Solid-State relays, PID automatic transfer |
Heating time of Empty Furnace | ≤0.5h | ≤0.5h |
Temperature control instrument: | Japan Electric Intelligent Instrument | Japan Electric Intelligent Instrument |
The electrical appliances have automatic switching furnace function, over-temperature alarm device | ||
Auxiliary electrical appliance of the Control cabinet adopts domestic famous brand, Chint electric appliance. | ||
Heating element | spiral resistance wire 0CR25A15 | spiral resistance wire 0CR25A15 |
Air return barrel material | 4mm 304 stainless steel plate rolled into round barrel | 4mm 304 stainless steel plate rolled into round barrel |
Windshield and fan blade material | 304 stainless steel plate | 304 stainless steel plate |
Fan shaft material | Φ50 stainless steel 304 round steel | Φ50 stainless steel 304 round steel |
Furnace cover | The upper layer with A3 board, the middle uses the fiber cotton, the lower layer uses 3mm201 stainless steel plate | The upper layer with A3 board, the middle uses the fiber cotton, the lower layer uses 3mm201 stainless steel plate |
Furnace structure | Energy-saving refractory bricks and insulation cotton composition, insulation layer is not less than 300mm | Energy-saving refractory bricks and insulation cotton composition, insulation layer is not less than 300mm |
Temperature measuring element | Strong alkali-resistant stainless steel thermocouple K-degree number | Strong alkali-resistant stainless steel thermocouple K-degree number |
Hot air circulating fan | 1.5KW motor, fan blade diameter is not less than 360mm, centrifugal type | 1.5KW motor, fan blade diameter is not less than 380mm, centrifugal type |
Control cabinet size (L x W x H) | 1800x450x370mm | 1800x450x370mm |
Capacity | 100-130kg/furnace | 150-200kg/furnace |
Product Uses

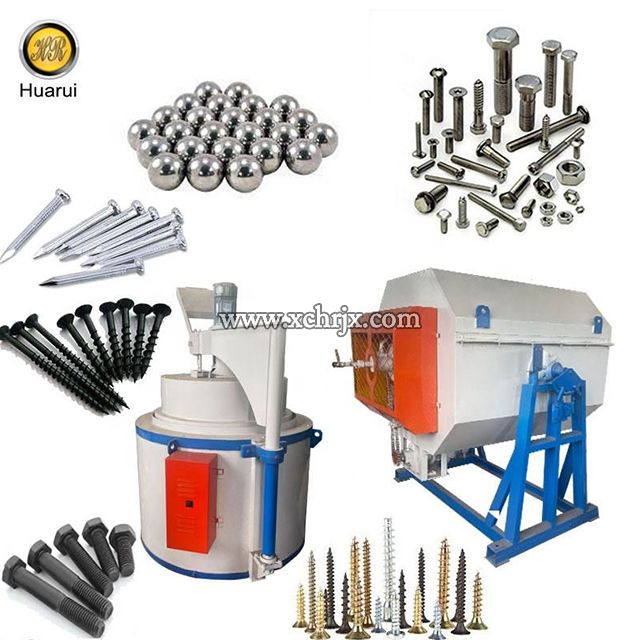

Tempering oven is mainly used for heat treatment fasteners (screws, bolts, nuts, etc.), spring manufacturing, tools/cutting tools, bearing industry, automotive parts, steel wire products.
Product Video
FAQ
Q1. Have you exported your machines to overseas market?
A1. Yes, we have exported our machines to Uzbekistan, Kyrgyzstan, Kazakhstan, Indonesia, Russia, Egypt, India, Viet Nam, Thailand, Pakistan, Algeria and so on.
Q2. Is there any quality warranty ?
A2. Yes, the warranty of mechanical portion of the equipment shall be 2 years.
Q3. What's the delivery time?
A3. It is depending on your order quantity, usually we aim to deliver your order within 30 days.
Q4. How do you pack the machines?
A4. Wrapped film packing in full container. Wooden Frame or Wooden Case packing in LCL.
Q5. What's your payment terms?
A5. 40% T/T deposit before production, 60% T/T balance before shipment.
