Product Introduction

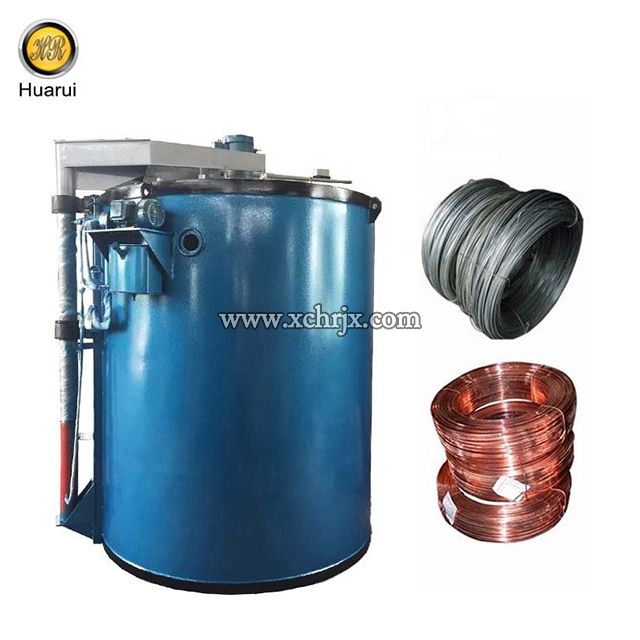

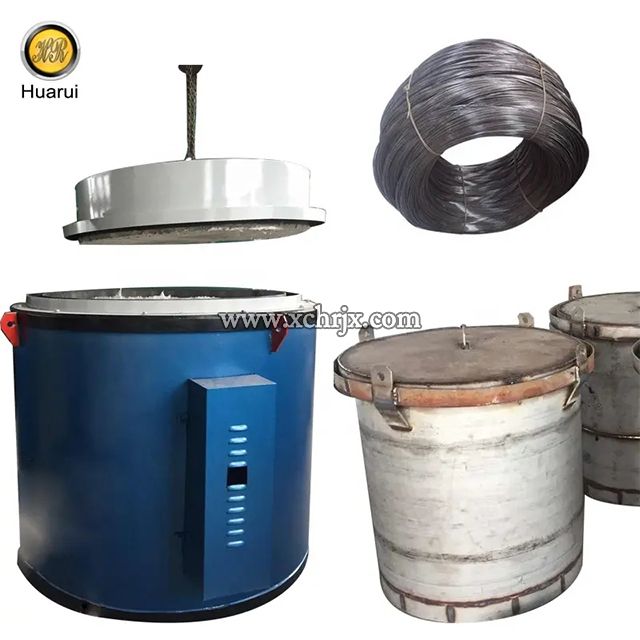

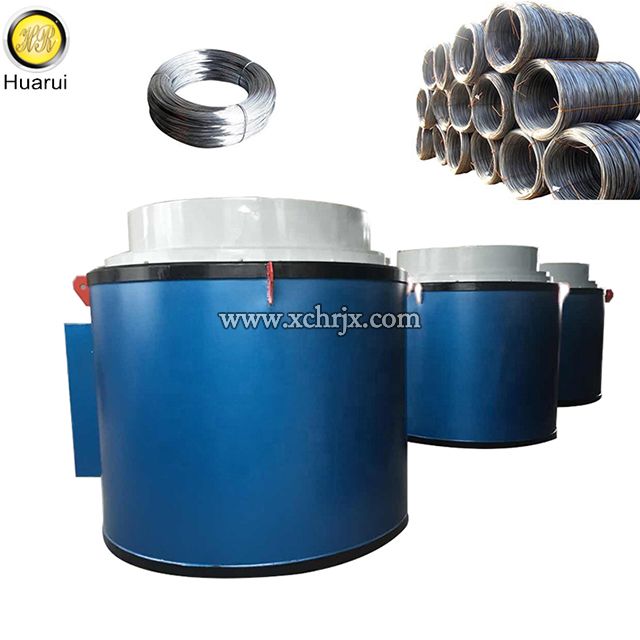

High Efficiency Wire Annealing Furnace Annealing Oven for Wire Drawing Annealing Treatment Equipment
Annealing furnace is an industrial heat treatment device that improves the internal structure and mechanical properties of metallic materials (such as steel wire) by precisely controlling the heating, holding, and cooling processes. Its core purpose is to eliminate internal stress, reduce hardness, and improve plasticity and toughness, preparing for subsequent cold working (such as drawing) or obtaining specific performance characteristics.
Product Advantage
1. Eliminating work hardening and restoring plasticity -- Effectively eliminates internal stress and work hardening generated during cold drawing, cold rolling, and other processing methods, significantly reducing hardness and increasing elongation and toughness, enabling smooth subsequent deep processing without cracking.
2. Precise performance control -- By precisely adjusting temperature, time, and cooling rate, the required mechanical properties (such as soft or semi-hard states) can be "tailor-made" for different grades and specifications of materials, meeting diverse needs.
3. Energy saving and consumption reduction -- Modern annealing furnaces utilize high-quality refractory materials, sealed designs, and waste heat recovery systems, resulting in high thermal efficiency and significantly lower energy consumption than traditional equipment.
Technical Parameters
Model | HRJ2-75-9 Annealing furnace | HRJ2-125-9 Annealing furnace |
Rated power | 75KW | 125 KW±10%(adjustable) |
Rated temperature | 950℃ | 950℃ |
Temperature control accuracy | ±1℃ | ±1℃ |
Furnace temperature uniformity | ±3-5℃ | ±3-5℃ |
Temperature control instrument | Japan Island Electric Intelligent Temperature Control Instrument | SHIMADEN Intelligent temperature control meter |
Temperature control components | solid-state relay | solid-state relay |
Empty furnace Heating up time | ＜2h | ≦2.5h |
Furnace size | Φ850×1200mm | Φ1200×1500mm |
Furnace weight | 3500kg | 5500kgs |
Maximum loading capacity | 1100kg | 2ton |
Product Uses
1. Steel wire industry: Intermediate annealing before drawing or softening of finished product.
2. Copper processing industry: Softening and bright annealing of copper tubes, wires, and strips.
3. Stainless steel industry: Relief of cold working stress and restoration of corrosion resistance.
4. Strip steel industry: Recrystallization annealing after cold rolling.
5. Precision parts: Relief of machining stress and dimensional stability.
Product Video
FAQ
Q1. Have you exported your machines to overseas market?
A1. Yes, we have exported our machines to Uzbekistan, Kyrgyzstan, Kazakhstan, Indonesia, Russia, Egypt, India, Viet Nam, Thailand, Pakistan, Algeria and so on.
Q2. Is there any quality warranty ?
A2. Yes, the warranty of mechanical portion of the equipment shall be 2 years.
Q3. What's the delivery time?
A3. It is depending on your order quantity, usually we aim to deliver your order within 30 days.
Q4. How do you pack the machines?
A4. Wrapped film packing in full container. Wooden Frame or Wooden Case packing in LCL.
Q5. What's your payment terms?
A5. 40% T/T deposit before production, 60% T/T balance before shipment.
