75kw 90kw 120kw Continuous mesh belt furnace
Huarui
Continuous Muffle Mesh Belt Furnace
The production line is suitable for light-hardening, thin-layer carburizing and other heat treatment of ferrous metal parts in light industry, textile, hardware tools, bearings, chains, standard parts, self-tapping screws and other industries under the control of controlled atmosphere. The treated parts have the advantages of bright surface, no decarburization, uniform hardness and no deformation. The production line has the characteristics of easy adjustment of process parameters, pollution-free, remarkable energy saving and high productivity.
The process flow: manual feeding → heating and heat preservation → oil quenching → lifting → cleaning → tempering
Continuous Muffle mesh belt furnace | Continuous Muffle mesh belt furnace | Continuous Muffle mesh belt furnace | |
Capacity | 160kg/h for Quenching, 85kg/h for carburization | 200kg/h for quenching, 100-110kg/h for carburizing. | About 250-300kg/h for Quenching, 1500kg/h for carburizing. |
Heating power | 75kw | 90KW | 120KW |
Rated temperature for quenching | 950 °C | 950 °C | 950 °C |
Rated temperature for tempering | 650 °C | 650 °C | 650 °C |
The whole line includes | 1, continuous mesh belt quenching furnace: 1set 2, quenching tank (including hoist, circulating cooler): 1set 3, soaking spray cleaning machine: 1set 4, continuous mesh belt tempering furnace: 1set 5, electronic control system: 2 sets | ||

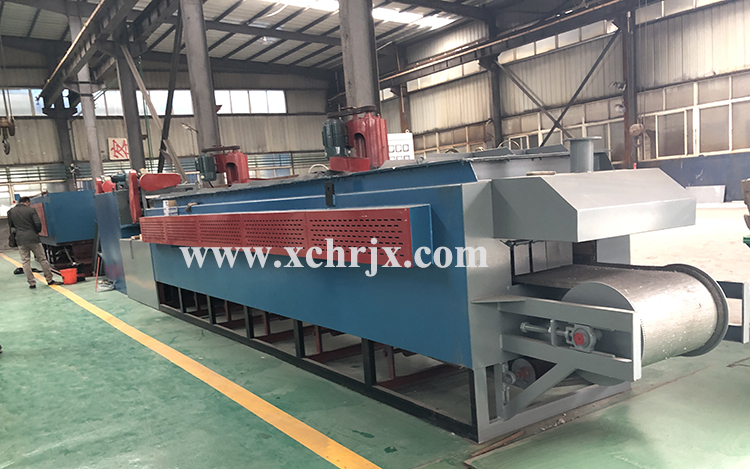

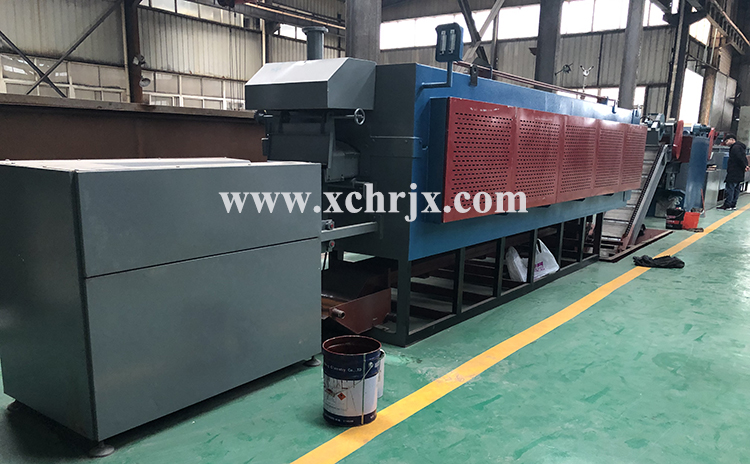

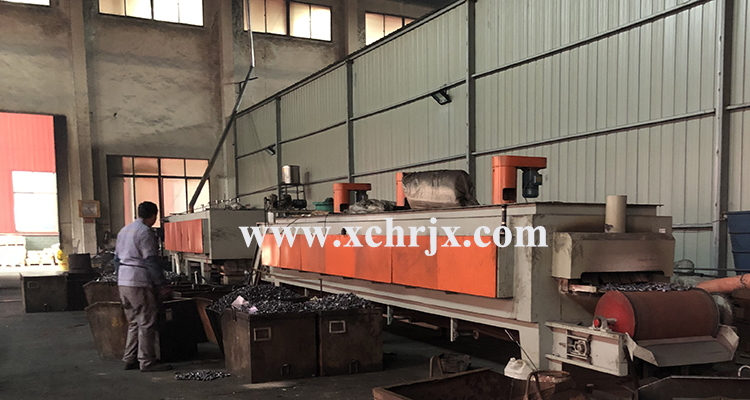

Detailed photos:

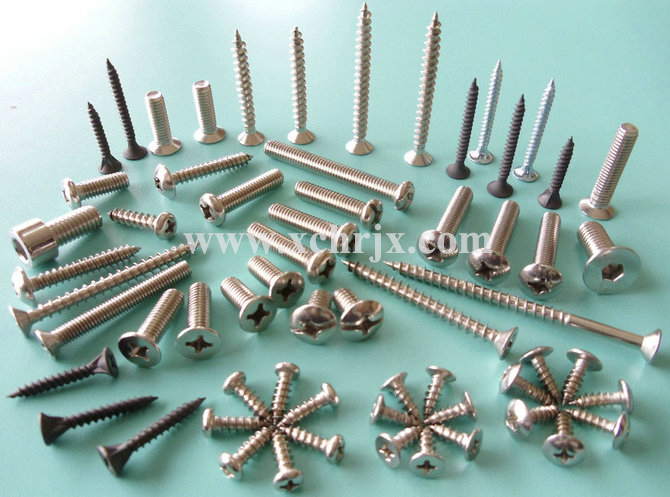

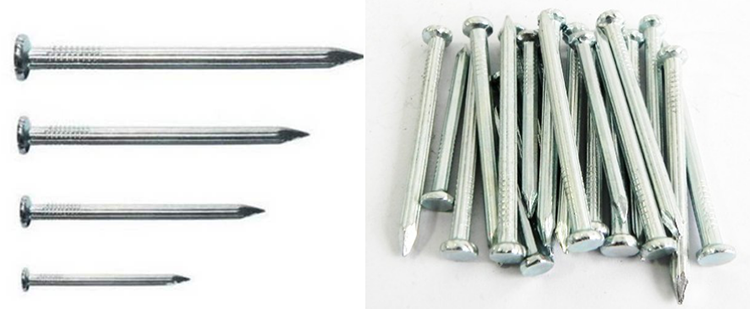

Nails, screws, other mental workpieces can be processed by the mesh belt furnace.

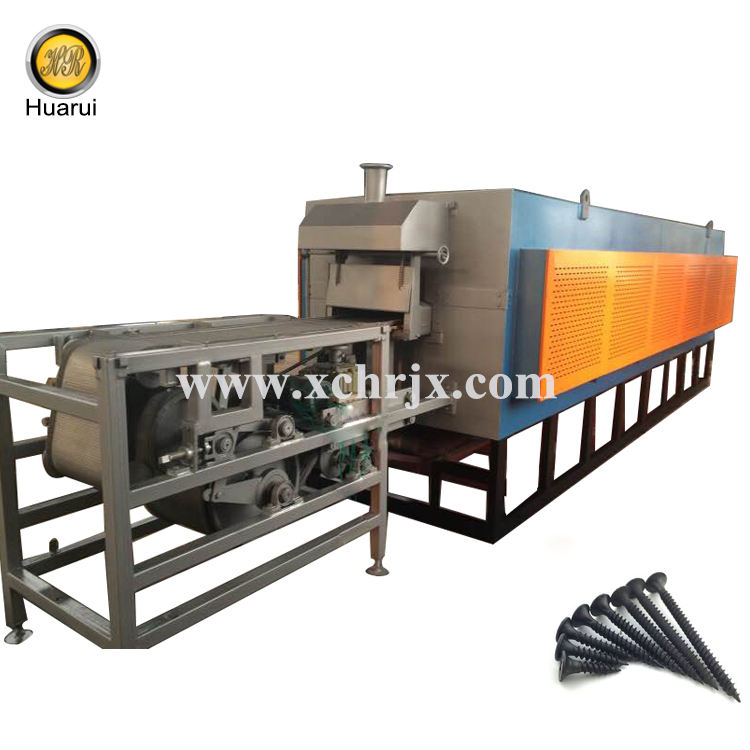

Continuous Muffle Mesh Belt Furnace
The production line is suitable for light-hardening, thin-layer carburizing and other heat treatment of ferrous metal parts in light industry, textile, hardware tools, bearings, chains, standard parts, self-tapping screws and other industries under the control of controlled atmosphere. The treated parts have the advantages of bright surface, no decarburization, uniform hardness and no deformation. The production line has the characteristics of easy adjustment of process parameters, pollution-free, remarkable energy saving and high productivity.
The process flow: manual feeding → heating and heat preservation → oil quenching → lifting → cleaning → tempering
Continuous Muffle mesh belt furnace | Continuous Muffle mesh belt furnace | Continuous Muffle mesh belt furnace | |
Capacity | 160kg/h for Quenching, 85kg/h for carburization | 200kg/h for quenching, 100-110kg/h for carburizing. | About 250-300kg/h for Quenching, 1500kg/h for carburizing. |
Heating power | 75kw | 90KW | 120KW |
Rated temperature for quenching | 950 °C | 950 °C | 950 °C |
Rated temperature for tempering | 650 °C | 650 °C | 650 °C |
The whole line includes | 1, continuous mesh belt quenching furnace: 1set 2, quenching tank (including hoist, circulating cooler): 1set 3, soaking spray cleaning machine: 1set 4, continuous mesh belt tempering furnace: 1set 5, electronic control system: 2 sets | ||
Detailed photos:
Nails, screws, other mental workpieces can be processed by the mesh belt furnace.
