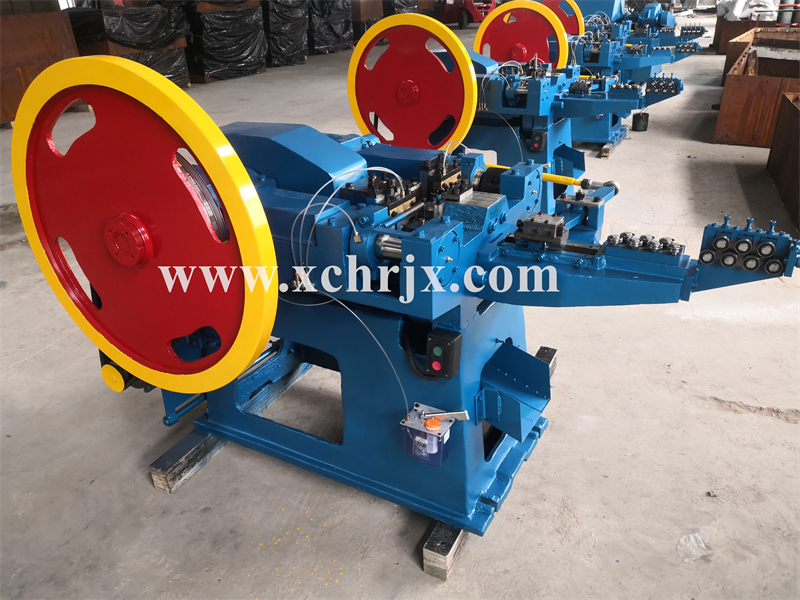

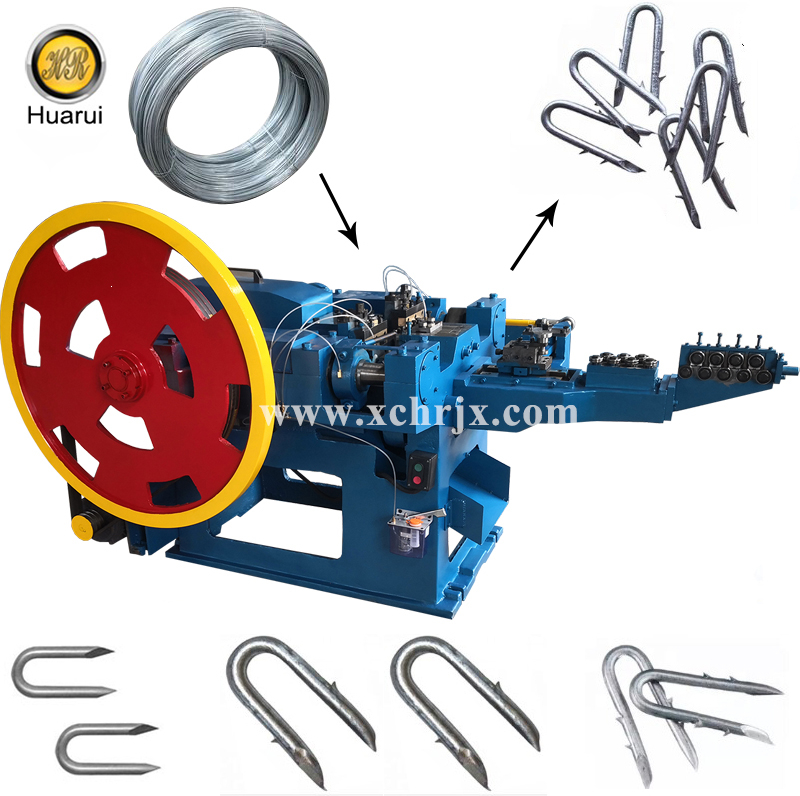

1. Z94-3U & Z94-4U U shape nail making machine
Function:

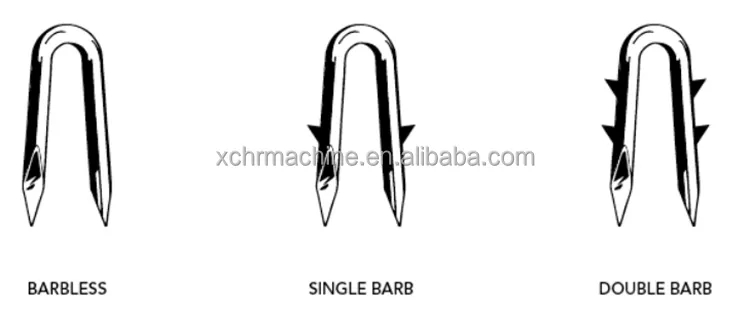

U nail making machine used for making U type nails.Mainly model Z94-3U and Z94-4U.U nails refer to a kind of fasteners with two-pronged shanks. These U shaped nails are usually used for attaching the mesh fences to wooden posts and frame, hence the name fencing staples. U Nails Type– Smooth or Barbed Shank U nails
Specification:
| Model | Z94-3U nail making machine | Z94-4U nail making machine |
| Max. dia. of nail | 3.5mm | 4.5mm |
| Min. dia. of nail | 1.8 mm | 1.8mm |
| Max. Length of nail | 80mm | 110mm |
| Motor power | 3kw | 4kw |
| Nail making speed | 280pcs/min | 220pcs/min |
| L*W*H | 2.0*1.4*1.4m | 2.3*1.5*1.6m |
| Weight | 1.1 tons | 2tons |

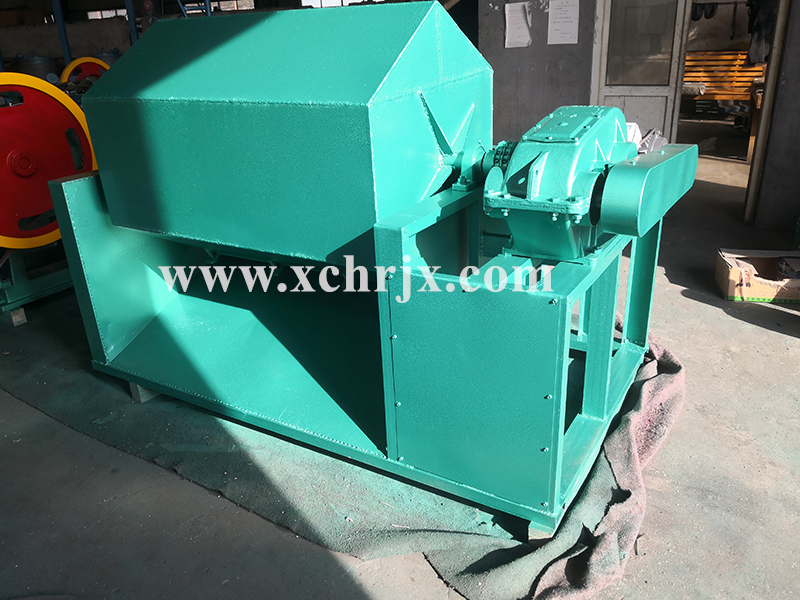

2. Nail polishing machine
| Model | Motor power | Overall size | Capacity of nails |
| SD-400 | 2.2kw | 1.64*0.9*1.0m | 400kg |
| SD-600 | 3kw | 2.0*1.0*1.4m | 600kg |
| SD-1000 | 7.5kw | 2.0*1.5*1.5m | 1000kg |
Finished nails
