HRHS4-14
Huarui

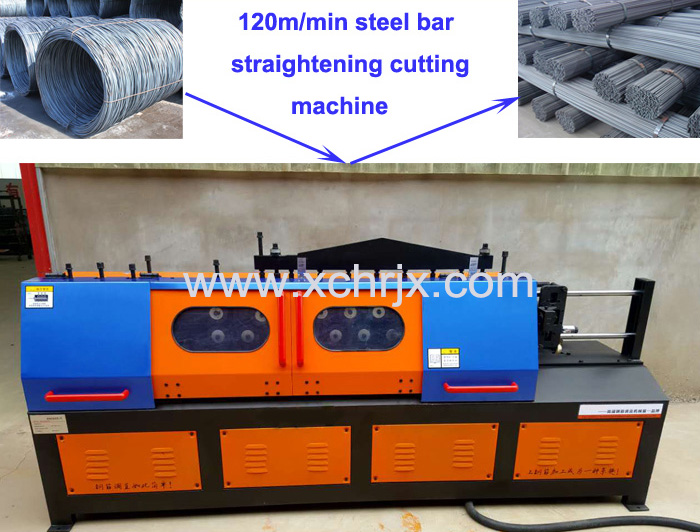

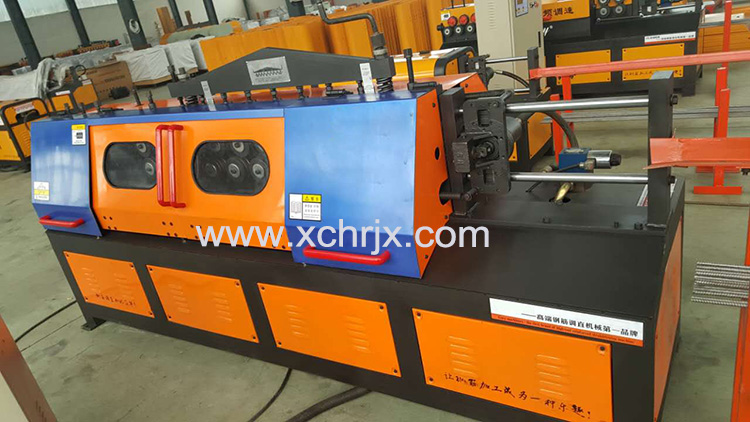

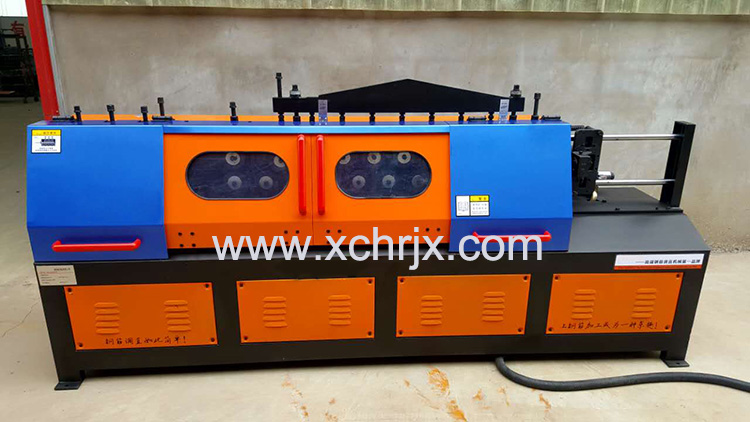

120m/min High speed bar straightening cutting machine
Product features:
1. The overall body + adopt international profiles, adopt nowadays most advanced three-dimensional laser cutting technology for the machine to provide a more secure and stable working safeguard.
2. Host machine system + adopt the domestic most advanced large-scale CNC machining center, an integral forming, and use the three-dimensional animation design, mechanical geometric analysis for the spare parts processing to get more accurate guarantee.
3. Cutting system + cutting system+ adopt no eddy current back pressure technology: low oil temperature,fast cutting, wear resistance, more stable.

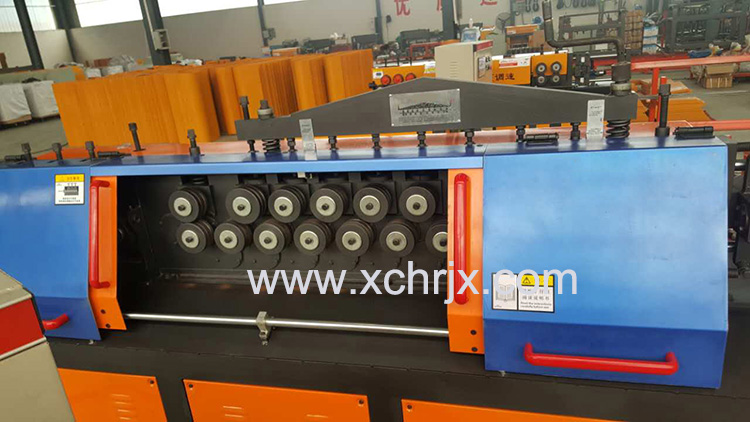

4. Straightening method + adopt multi-roller straightening wheel and straight line type’s straightening method, with the features of fast straightening , no distortion, no injury and the shortest cut length can be controlled to 0.01m.
5. Pinch roller material + chromium 12 molybdenum vanadium alloy steel (Cr12MoV), and adopt nowadays most advanced international heat treatment technology, whose hardness is in HRC62-65. Also, theservice life can process 10,000 tons or more, which is 20 times than common pinch roller.
6. Debugging method + scale plate debugging method, breaking the traditional straightening machines’ shortcomings like no basis, no clue, repeated debugging situation. Easy to learn and convenient to use according to scale plate debugging, each time when replacement of a reinforced steel bar model, the debugging time can be shortened 3mins.
7. Control system + master control system adopts PLC computer programming, electronic control automation control system, only need to enter the data of length, quantity, batch, then the user can get fully automatic operation, completed from the straightening to cutting, totally the one-stop operation for the system.
8. The advantages of frequency control:
(1). Continuously variable speed, with wide speed range.
(2) .Small starting current , big starting torque.
(3) .High precision speed, easy to control the automation.
(4) .High efficiency, small cutting error.
Technical parameters:
Model No. | |
Straightening diameter | Round bar: 4-14mm Deformed bar: 4-12mm |
Cutting length | 10-8000mm (can lengthen) |
Length of Blanking frame | 8m (can lengthen) |
Control method | PLC |
Frequency converter | Have |
Traction motor | 22kw |
Cutting motor | 5.5kw |
Straightening speed | 120m/min |
Cutting error | ±1cm |
L*W*H | 3.3*0.75*1.45m |
Machine weight | 1860kg |
